Hypercell is the world's leading manufacturer and innovator of lithium-ion batteries from 2007, with headquartered in Shenzhen, one advanced factory in Dongguan with 250000 square meters which can support 1 million daily capacity. We are known worldwide for our high-tech, high-volume prowess in developing, producing and packaging high quality rechargeable lithium-ion battery cells and packs. Our sedimentary knowledge in service, profession, production capacity and system integration capability help us to win confidence to our customers over countries. Working closely with world-renowned branded terminals, medical devices, drones, robots and power tools specialists, VR/AR vanguards and various wearable and smart home technology trailblazers, we are helping the world live smarter and better.
🎓
فريق عالمي المستوى
خريجو جامعات عالمية مرموقة
🔬
بحث وتطوير متقدم
تطوير ذاتي
🤖
التركيز على الابتكار
تقنيات ابتكارية متعددة

منتجاتنا

عرض جميع المنتجات ← →
lithium battery

lithium battery

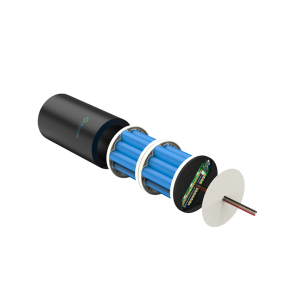

Model: 24AQ507-01
Params: Configuration：4S8P
Nominal Voltage：12.8V
Nominal Capacity：120Ah
Nominal Energy：1536Wh
Max. Charging Voltage：14.6V
Fast Charge Current：0.2C@25℃
Discharge End of Voltage：10.0V (2.50V/cell)
Max. Continuous Discharge：5A @25℃
Operation Temp. Range：Charge 0℃~ 45 ℃；Discharge -20℃~ 60 ℃
Cycle Life：3000 cycles ≥80% Rated capacity (0.2C/0.2C)
Dimension：Ø169±1.0 x H300.0±3.0 mm
BMS：Dual protection including OV, UV, OC, OT, UT, SCC；Prohibited 0V battery charging

lithium battery

lithium battery

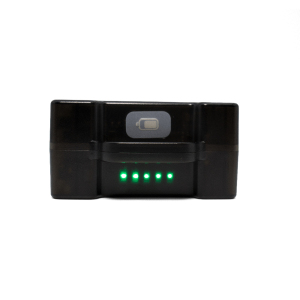

Model: INR18650-4S2P
Params: Configuration: 4S2P
Nominal Voltage: 14.4V
Nominal Capacity: 6700mAh
Nominal Energy: 96.48Wh
Max. Charging Voltage: 16.8V
Fast Charge Current: 0.5C@25℃
Discharge End of Voltage: 10.0V (2.50V/cell)
Max. Continuous Discharge: 6.0A @25℃
Operation Temp. Range: Charge 0℃~ 45 ℃; Discharge -20℃~ 60 ℃
Cycle Life: 500 cycles ≥80% Rated capacity (0.5C/0.5)
Enclosure: PC+ABS, UL94-V0& IP68
Connector: Blade Connector 6Pin
Dimension: L82.0±0.2 x W 42.0±0.2 x H105.0 ±0.2 mm
BMS: Dual protection including OV, UV, OC, OT, UT, SCC; Prohibited 0V battery charging

lithium battery

lithium battery

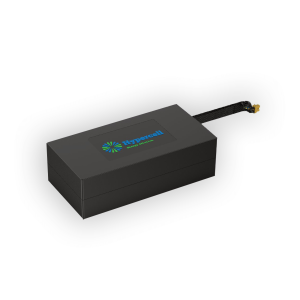

Model: 24AQ506-01
Params: Rated Capacity: 4900mAh (0.2C min.), 5000mAh
Typical Nominal Voltage: 46.8V
Watt-hour rating: 234Wh
Max. Charge Voltage [V]: 54.6 V (100mA)
Max. Continuous Charge Current: 5000 mA
Rec. Charge cut off: by current 100mA or timer 3.0h
Max. Continuous Discharge Current: 10000 mA
Rec. Discharge cut off: 32.5 V
Internal Impedance: Less than 200mΩ
Exp. Cycle Life: 800 cycles > 80% of initial cap. (1C @ 20°C)
