حول Onumen Technology Co., Ltd.
Our portfolio covers two core series: Foldable LED Display and Rolling LED Display, supporting diverse creative shapes such as curved, circular, wave and staircase layouts. Widely applied in stage performances, cultural tourism attractions, commercial advertising, fixed signage and event conferences, our products serve both rental operators and engineering clients globally.
We own a complete global patent pool spanning Asia, Europe, Americas and Oceania, and have won internationally recognized Red Dot, iF and French Design Awards. Our production holds ISO management system certificates, CE, FCC, RoHS and other international product certifications.
Committed to making lightweight LED installation mainstream, we deliver cost-effective, easy-to-deploy visual solutions for distributors, contractors and partners worldwide. Our vision: Creating New Categories, Shaping New Possibilities.
منتجاتنا
عرض جميع المنتجات ← →
Magic Plus
الموديل: FPS
المعلمات: Product Series: FPS Series
Industry Common Name: Flexible LED Display
Subcategory: 180° Foldable Flexible LED Display
Pixel Pitch: P2.6 / P3.9
LED Type: SMD1212 / SMD1921
Brightness: 6000 nits
Refresh Rate: 3840Hz
Module Size: 250×250 mm
Thickness: 15 mm
Weight: 15 kg/m²
Protection Rating: IP65 (Double-sided potting, up to IP68)
Foldable Angle: 180°
Viewing Angle: 140° Horizontal / 140° Vertical
Gray Scale: 16 bit
Working Voltage: DC24V / DC48V
Input Voltage: AC100-240V
Working Temperature: -20℃ ~ +45℃
Storage Temperature: -20℃ ~ +60℃
Control Mode: Synchronous / Asynchronous
Installation: Hanging / Wall-mounted

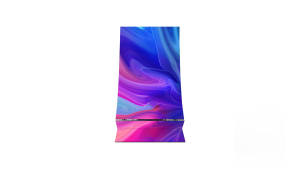

Easy Sailing
الموديل: EP250-EP400
المعلمات: Product Series:
EP Series
Application Environment:
Indoor / Semi-Outdoor
Pixel Pitch:
P2.6 / P3.9 / P5.2
LED Type:
SMD0606 / SMD1010 / SMD2020
Pixel Density:
36,864 - 147,456 pixels/m²
Brightness:
630-2300 nits
Refresh Rate:
3840Hz / 7680Hz
Gray Scale:
16 bit
Foldable Angle:
360°
Module Size:
250 × 250 mm
Screen Size:
1000 × 2500 mm
1000 × 2750 mm
1000 × 3000 mm
1000 × 3250 mm
1000 × 3500 mm
1000 × 3750 mm
1000 × 4000 mm
Screen Thickness:
14-17 mm
Screen Weight:
12 kg/m²
Protection Rating:
IP43
Maximum Power Consumption:
430-880 W/m²
Working Voltage:
DC24V / DC48V
Input Voltage:
AC100-240V
Viewing Angle:
120° Horizontal / 120° Vertical
Control Mode:
Synchronous / Asynchronous
Installation:
Mobile Installation / Quick Setup
Certification:
CE, RoHS, FCC
Easy Sailing
الموديل: EP150-EP225
المعلمات: Product Series:
EP Series
Application Environment:
Indoor / Semi-Outdoor
Pixel Pitch:
P2.6 / P3.9 / P5.2
LED Type:
SMD0606 / SMD1010 / SMD2020
Pixel Density:
36,864 - 147,456 pixels/m²
Brightness:
630-2300 nits
Refresh Rate:
3840Hz / 7680Hz
Gray Scale:
16 bit
Viewing Angle:
120° Horizontal / 120° Vertical
Foldable Angle:
360°
Module Size:
250 × 250 mm
Screen Size:
1000 × 1500 mm
1750 mm
2000 mm
2250 mm
Screen Thickness:
14-17.1 mm
Screen Weight:
12 kg/m²
Protection Rating:
IP43
Working Voltage:
DC24V / DC48V
Input Voltage:
AC100-240V
Maximum Power Consumption:
430-880 W/m²
Control Mode:
Synchronous / Asynchronous
Installation:
Mobile Installation / Quick Setup
Certification:
CE, RoHS, FCC

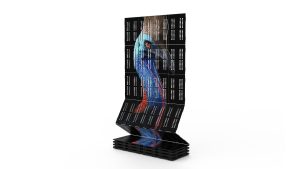

Smart T Plus
الموديل: FTS
المعلمات: Product Series:
FTS Series
Pixel Pitch:
P3.9-7.8 / P7.8 / P7.8-15.6 / P15.6 / P31.25 / P37.5
LED Type:
SMD1415 / SMD1921 / SMD2727
Module Resolution:
8×12 / 12×16 / 16×24 / 32×24 / 32×48 / 64×48 pixels
Transparency:
16.37% - 56%
Pixel Density:
711 - 32,768 pixels/m²
Brightness:
1100-9700 nits
Refresh Rate:
3840Hz / 7680Hz
Viewing Angle:
Horizontal 140°
Vertical 120°
Foldable Angle:
360°
Module Size:
250×375 mm
375×500 mm
300×450 mm
Thickness:
18.2-22.5 mm
Weight:
8-12 kg/m²
Protection Rating:
IP65
(Up to IP68)
Single Power Cable Maximum Load:
30m
Gray Scale:
16 bit
Contrast Ratio:
2500:1
Working Voltage:
DC24V / DC48V
Input Voltage:
AC100-240V
Working Temperature:
-20℃ ~ +45℃
Storage Temperature:
-20℃ ~ +60℃
Working Humidity:
0% ~ 90% RH
Control Mode:
Synchronous / Asynchronous
Installation:
Hanging / Wall-mounted / Ground Installation
Certification:
CE, RoHS, FCC

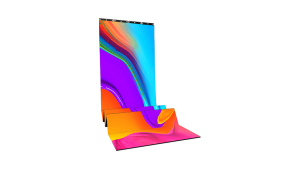

Smart Plus
الموديل: FCSL
المعلمات: Product Series:
FCSL Series
Pixel Pitch:
P5.2 / P7.8 / P10.4 / P15.6
LED Type:
SMD1921 / SMD2727
Module Resolution:
16×24 / 24×36 / 32×48 / 48×72 pixels
Pixel Density:
4,096 - 36,864 pixels/m²
Brightness:
2400-6000 nits
Refresh Rate:
3840Hz / 7680Hz
Viewing Angle:
140° Horizontal / 140° Vertical
Foldable Angle:
360°
Module Size:
250×375 mm
Thickness:
18-24 mm
Weight:
15 kg/m²
Protection Rating:
IP65 (Front & Rear)
Up to IP68 (Optional)
Gray Scale:
16 bit
Contrast Ratio:
2500:1
Working Voltage:
DC24V / DC48V
Input Voltage:
AC100-240V
Working Temperature:
-20℃ ~ +45℃
Storage Temperature:
-20℃ ~ +60℃
Working Humidity:
10% ~ 90% RH
Control Mode:
Synchronous / Asynchronous
Installation:
Hanging / Wall-mounted
Certification:
CE, RoHS, FCC

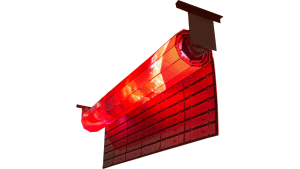

Rolling Rollable LED Display
الموديل: FRL/FRSL
المعلمات: Pixel Pitch:
Indoor: P1.25 / P1.56 / P1.953 / P2.6 / P3.9
Outdoor: P2.6 / P3.9
LED Type:
SMD1010 / SMD1515 / SMD2020
Module Resolution:
128×16 / 192×24 / 256×32 / 320×40 / 400×50 pixels
Pixel Density:
65,536 - 640,000 pixels/m²
Brightness:
Indoor: 600-1000 nits
Outdoor: 2000-6000 nits
Refresh Rate:
3840Hz
Viewing Angle:
Horizontal 120°-160°
Vertical 120°-160°
Module Size:
500 × 62.5 mm
Thickness:
Indoor: 15-16 mm
Outdoor: 18.5 mm
Weight:
Indoor: 13-15 kg/m²
Outdoor: 18 kg/m²
Protection Rating:
Indoor:
Front IP54 / Rear IP43
Outdoor:
Front IP65 / Rear IP65
Working Voltage:
DC48V
Input Voltage:
AC100-240V
Gray Scale:
16 bit
Contrast Ratio:
2500:1
Working Temperature:
-20℃ ~ +45℃
Storage Temperature:
-20℃ ~ +60℃
Control Mode:
Synchronous / Asynchronous
Installation:
Suspended / Wall-mounted / Ground Installation
Certifications:
CE, RoHS, FCC

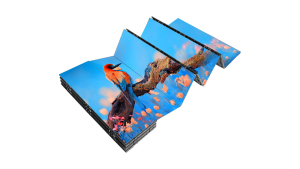

Smart folding LED Display screen
الموديل: FC
المعلمات: Product Series:
FC Series
Pixel Pitch:
P2.6 / P3.9 / P5.2
LED Type:
SMD0606 / SMD1010 / SMD2020
Module Resolution:
48×48 / 64×64 / 96×96 pixels
Pixel Density:
36,864 - 147,456 pixels/m²
Brightness:
1000-1500 nits
Refresh Rate:
3840Hz / 7680Hz
Viewing Angle:
120° Horizontal / 120° Vertical
Foldable Angle:
360°
Module Size:
250×250 mm
Thickness:
14-17 mm
Weight:
11 kg/m²
Protection Rating:
IP43
Gray Scale:
16 bit
Contrast Ratio:
2500:1
Working Voltage:
DC24V / DC48V
Input Voltage:
AC100-240V
Working Temperature:
-20℃ ~ +45℃
Storage Temperature:
-20℃ ~ +60℃
Control Mode:
Synchronous / Asynchronous
Installation:
Hanging / Wall-mounted / Floor Installation
Certification:
CE, RoHS, FCC
معرض الشركة
الشهادات والجوائز
قصص النجاح
Outdoor Advertising Operator / Commercial Display Integrator
The double-sided ultra-thin fixed LED displays were installed on advertising poles in Guatemala, maximizing advertising visibility from both directions. The lightweight and slim design reduces installation requirements, while the low heat generation and energy-saving features ensure stable operation for long-term outdoor applications.
Double-sided display design, ultra-thin and lightweight structure, low heat generation, energy saving, easy installation and high-efficiency outdoor advertising.
Educational Institution / Kindergarten
The liftable foldable LED display was installed at the outdoor playground of a kindergarten in Ordos, Inner Mongolia, China. The display can be hidden when not in use, maintaining an open and clean playground environment. During school events and outdoor activities, it can be automatically lifted and unfolded to provide a large-format visual display and enhance the overall event experience.
Outdoor hidden installation, automatic lifting and folding, weather-resistant design, space-saving structure and flexible campus applications.
Hotel / Banquet Hall Operator
The liftable foldable LED display was integrated into the banquet hall interior design in Shenzhen, China. The screen can be hidden when not in use, maintaining an elegant and clean space. During events, it can be automatically lowered and unfolded to provide a large-format visual display for weddings, banquets and conferences.
Hidden installation design, automatic lifting and folding, elegant space integration, flexible event applications and immersive visual experience.
Shopping Mall / Commercial Property Operator
The liftable foldable LED display was integrated into the indoor space of Tai Wai MTR shopping mall in Hong Kong. The screen remains hidden when not in use, maintaining a clean and modern environment. When required, it can be automatically lowered and unfolded to provide a large-format visual display for commercial events and promotions.
Hidden installation design, automatic lifting and folding, space-saving structure, seamless architectural integration and flexible commercial applications.
Automotive Brand / Event Production Company
The foldable LED display system was designed for a Geely automotive launch event, creating a three-sided immersive display space around the vehicle. During the unveiling ceremony, the lifting platform moved upward while the LED screens gradually folded from bottom to top, revealing the new vehicle with a dynamic and cinematic presentation effect.
Three-sided foldable LED structure, synchronized mechanical movement, dynamic vehicle unveiling, immersive stage design and creative brand presentation.
Concert Organizer / Stage Production Company
The foldable LED display was creatively arranged into a large circular structure for the Rolling Stone 30th Anniversary Concert. The flexible folding design enabled the creation of a unique curved stage visual system, delivering immersive 360° viewing effects and enhancing the overall performance atmosphere.
Flexible folding design, curved circular structure, creative stage integration, immersive 360° visual effects and unique stage aesthetics.
Concert Organizer / Stage Production Company
The F-P12 LED display system was deployed for Fukuyama Masaharu's Japan tour concert, featuring three large LED screens with a total area of 1670 m². The high-resolution and large-scale display provided powerful visual effects and enhanced the immersive experience for thousands of audiences.
Ultra-large LED display system, high reliability, large-scale stage integration, immersive visual effects and professional concert application.
Shopping Mall / Commercial Space Operator
The EP225 mobile fast assembly foldable LED display systems were deployed in a shopping mall in Zhejiang, China, providing a flexible visual solution for commercial promotions and events. The integrated foldable design enables quick setup, easy movement and efficient reuse for different application scenarios.
Mobile foldable design, fast installation, easy transportation, flexible deployment and reusable commercial applications.
Hotel / Event Venue Operator
The mobile fast assembly foldable LED display was installed in a hotel in Libya, providing a flexible visual solution for conferences, events and business activities. The foldable design enables quick setup, easy transportation and efficient reuse across different event scenarios.
Mobile foldable design, fast installation, space-saving transportation, easy operation and flexible event applications.
Cultural Tourism Project Operator / Scenic Area Management
The outdoor rollable LED display was installed at the former site of the Eighth Route Army Headquarters in Mata Town, Zuoquan County. The rolling structure allows the display to be stored safely when not in use and quickly deployed for exhibitions and cultural presentations, providing a flexible visual solution while preserving the historical site's environment.
Outdoor rollable design, space-saving storage, weather-resistant structure, flexible deployment and seamless integration with cultural tourism environments.
Concert Organizer / Stage Production Company
The liftable foldable LED display was integrated into the SHINee concert stage design, enabling dynamic lifting and folding movements during performances. The flexible stage integration enhanced visual effects and provided more possibilities for creative stage presentations.
Liftable and foldable design, dynamic stage integration, lightweight structure, creative stage applications and immersive visual effects.
Concert Organizer / Stage Production Company
The liftable foldable LED display was integrated into the concert stage structure at Stade de France, enabling dynamic lifting and folding movements during the performance. The lightweight and flexible design helped create an immersive visual experience while improving stage flexibility and installation efficiency.
Liftable and foldable design, dynamic stage integration, lightweight structure, fast installation and immersive visual effects.
Transportation Facility Operator / Commercial Display Integrator
The ultra-thin fixed LED display was installed at Tokyo Shibuya Station with a lightweight and space-saving design. The separated power supply structure reduced screen thickness and heat generation, improving energy efficiency and providing a reliable solution for long-term operation in public spaces.
Ultra-thin and lightweight design, separated power supply structure, low heat generation, energy saving, easy installation and seamless integration with architecture.
Award Ceremony Organizer / Stage Production Company
The liftable foldable LED display was integrated into the stage lifting system and hidden beneath the stage floor when not in use. During the performance, the screen could be automatically lifted and unfolded, creating dynamic visual effects while maintaining a clean and flexible stage design.
Hidden stage integration, automatic lifting and folding, synchronized stage movement, space-saving design and high-impact visual effects.
School / Educational Institution
The liftable foldable LED display was integrated into the lecture hall ceiling structure. The screen can be automatically lowered for teaching and presentations, and hidden inside the ceiling when not in use, maximizing space utilization and maintaining a clean interior design.
Automatic lifting and folding, hidden ceiling integration, space-saving design, smart operation and seamless architectural integration.
Cultural Tourism Project Operator / Scenic Area Developer
The transparent folding LED display was integrated into the cultural tourism space, providing immersive visual effects while maintaining architectural openness. The hollow design effectively reduces wind load and improves outdoor reliability.
Transparent hollow design, wind-resistant structure, automatic horizontal folding, architectural integration and immersive visual experience.
Concert Organizer / Stage Production Company
The liftable foldable LED display was integrated with the stage lifting system, enabling synchronized lifting and folding movements. It created a dynamic visual experience while reducing installation space and improving stage flexibility.
Automatic lifting and folding, lightweight structure, synchronized stage movement, fast installation and creative stage integration.
