منتجاتنا
عرض جميع المنتجات ← →

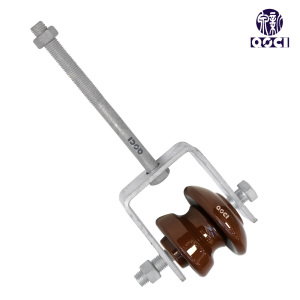

Porcelain Insulator
الموديل: ED-2B
المعلمات: Mechanical Tensile Strength: 13.5kN
Max Diameter: 90mm
Total Height: 76mm
Power Frequency Wet Withstand Voltage: 13kV
Power Frequency Dry Withstand Voltage: 25kV

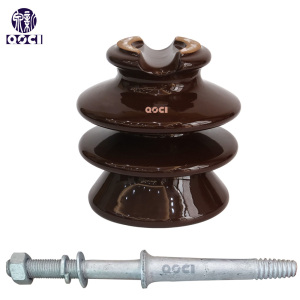

Porcelain Insulator
الموديل: P-11-Y
المعلمات: Rated voltage: 11kV
Rated mechanical load: 10kN
Max diameter: 150mm
Total height: 150mm
Creepage distance: 240mm
Power frequency wet withstand voltage: 50kV
Lightning impulse withstand voltage: 90kV
Suspension Glass Insulator
الموديل: ANSI 52-11
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: ANSI 52-8
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: ANSI 52-5
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: ANSI 52-3
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PSD70E
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:120kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:110kV

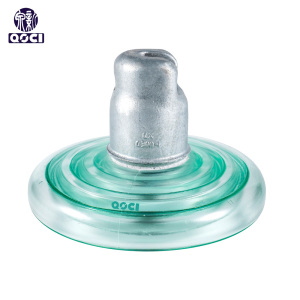

Suspension Glass Insulator
الموديل: PS300V 112V
المعلمات: Mechanical Failing Load:300kN
Nominal Disc Diameter：320mm
Nominal Spacing：195mm
Creepage Distance：485mm
Socket Coupling:24
Dry Lightning Impulse Withstand Voltage:130kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS240V 212V
المعلمات: Mechanical Failing Load:240kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20/24
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS210V 212V
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS160D 112V
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160BM
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：155mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS120B 112V
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS120B 212V
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：255mm
Nominal Spacing：127mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS70E 112W
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: PS70E 212W
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：255mm
Nominal Spacing：127mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U210BD
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：300mm
Nominal Spacing：170mm
Creepage Distance：450mm
Socket Coupling:20/24
Dry Lightning Impulse Withstand Voltage:120kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV

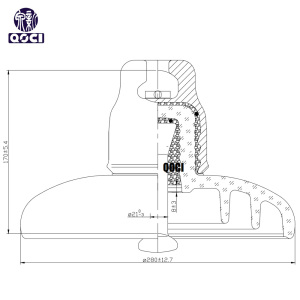

Suspension Glass Insulator
الموديل: U160BLD
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：340mm
Nominal Spacing：170mm
Creepage Distance：550mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:130kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV

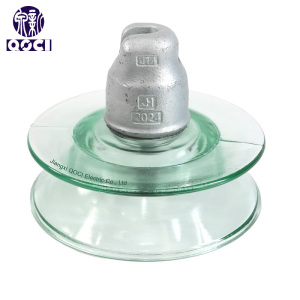

Suspension Glass Insulator
الموديل: U120BLD
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:120kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:110kV

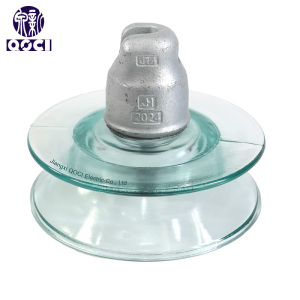

Suspension Glass Insulator
الموديل: U100BLD
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:120kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:110kV
Suspension Glass Insulator
الموديل: U70BLD
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:120kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:110kV
Suspension Glass Insulator
الموديل: U420BP
المعلمات: Mechanical Failing Load:420kN
Nominal Disc Diameter：380mm
Nominal Spacing：205mm
Creepage Distance：620mm
Socket Coupling:28
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:140kV

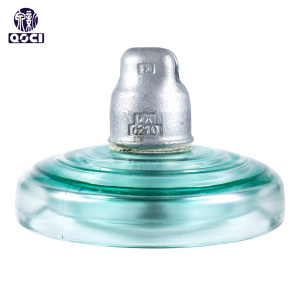

Suspension Glass Insulator
الموديل: U210BP
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：320mm
Nominal Spacing：170mm
Creepage Distance：550mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:130kV

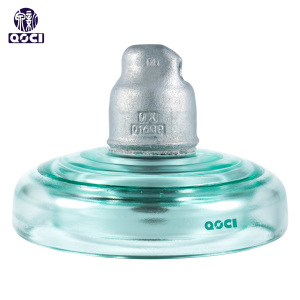

Suspension Glass Insulator
الموديل: U160BLP
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：320mm
Nominal Spacing：170mm
Creepage Distance：550mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160BSP
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：320mm
Nominal Spacing：146mm
Creepage Distance：550mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160BLP
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：450mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:125kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U120BLP
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:125kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV

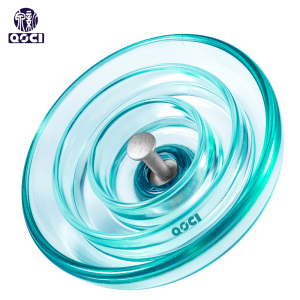

Suspension Glass Insulator
الموديل: U100BLP
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：320mm
Nominal Spacing：146mm
Creepage Distance：550mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U100BLP
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:125kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U70BLP
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：320mm
Nominal Spacing：146mm
Creepage Distance：550mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:55kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U70BLP
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：450mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:125kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U210AD
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：420mm
Nominal Spacing：170mm
Creepage Distance：380mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:95kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160BSA
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：420mm
Nominal Spacing：146mm
Creepage Distance：380mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:95kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U120BLA
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：380mm
Nominal Spacing：146mm
Creepage Distance：365mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:90kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U100BA
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：380mm
Nominal Spacing：146mm
Creepage Distance：365mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:90kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U70BA
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：380mm
Nominal Spacing：127/146mm
Creepage Distance：365mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:90kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

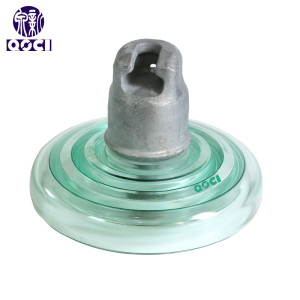

الموديل: U420B
المعلمات: Mechanical Failing Load:420kN
Nominal Disc Diameter：360mm
Nominal Spacing：205mm
Creepage Distance：550mm
Socket Coupling:28
Dry Lightning Impulse Withstand Voltage:140kV
Wet Power Frequency Withstand Voltage:80kV
Power Frequency Puncture Voltage:140kV
Suspension Glass Insulator

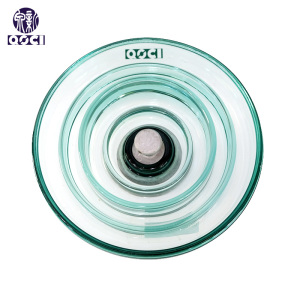

الموديل: U300B
المعلمات: Mechanical Failing Load:300kN
Nominal Disc Diameter：320mm
Nominal Spacing：195mm
Creepage Distance：485mm
Socket Coupling:24
Dry Lightning Impulse Withstand Voltage:130kV
Wet Power Frequency Withstand Voltage:50kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U240B
المعلمات: Mechanical Failing Load:240kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20/24
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

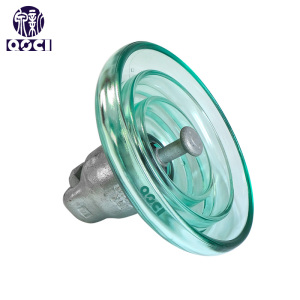

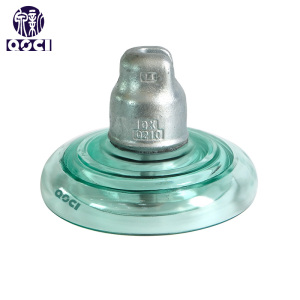

الموديل: U210B
المعلمات: Mechanical Failing Load:210kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

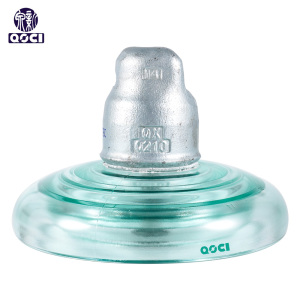

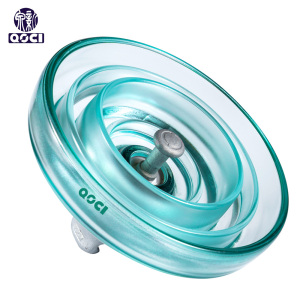

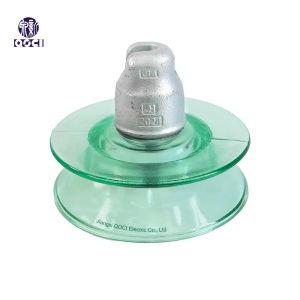

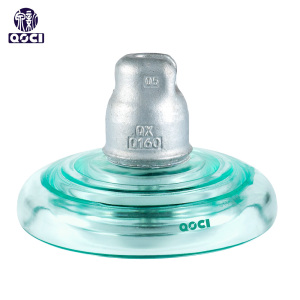

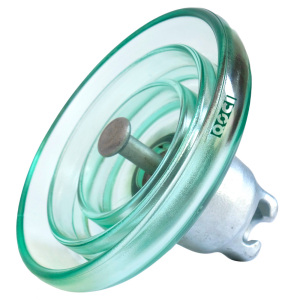

الموديل: U160BL
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：170mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160BS
المعلمات: Mechanical Failing Load:160kN
Nominal Disc Diameter：280mm
Nominal Spacing：146mm
Creepage Distance：400mm
Socket Coupling:20
Dry Lightning Impulse Withstand Voltage:110kV
Wet Power Frequency Withstand Voltage:45kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

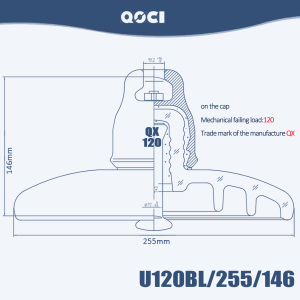

الموديل: U120BL
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U120BS
المعلمات: Mechanical Failing Load:120kN
Nominal Disc Diameter：255mm
Nominal Spacing：127mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

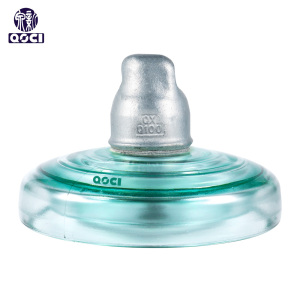

الموديل: U100BL
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U100BS
المعلمات: Mechanical Failing Load:100kN
Nominal Disc Diameter：255mm
Nominal Spacing：127mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator

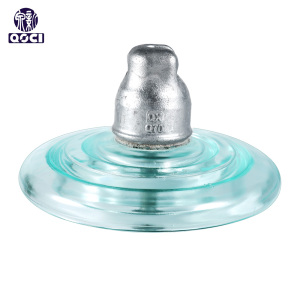

الموديل: U70BL
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：255mm
Nominal Spacing：146mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U70BS
المعلمات: Mechanical Failing Load:70kN
Nominal Disc Diameter：255mm
Nominal Spacing：127mm
Creepage Distance：320mm
Socket Coupling:16
Dry Lightning Impulse Withstand Voltage:100kV
Wet Power Frequency Withstand Voltage:40kV
Power Frequency Puncture Voltage:130kV
Suspension Glass Insulator
الموديل: U160B
المعلمات: mechanical failing load: 160kN
disc diameter: 280mm
nominal height: 127/146mm
creepage distance: 360mm
power frequency wet withstand voltage: 50kV
lightning impulse withstand voltage: 140kV
working temperature: -40°C to 60°C
Suspension Glass Insulator

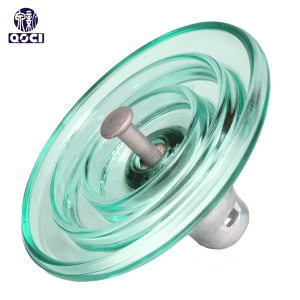

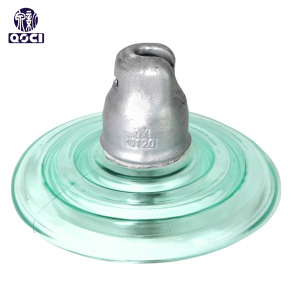

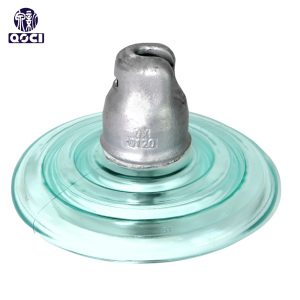

الموديل: U120B
المعلمات: mechanical failing load: 120kN
disc diameter: 255mm
nominal height: 127/146mm
creepage distance: 320mm
power frequency wet withstand voltage: 45kV
lightning impulse withstand voltage: 130kV
working temperature: -40°C to 60°C
Suspension Glass Insulator
الموديل: U70B
المعلمات: mechanical failing load: 70kN
disc diameter: 255mm
nominal height: 146mm
creepage distance: 320mm
power frequency wet withstand voltage: 45kV
lightning impulse withstand voltage: 130kV
working temperature: -40°C to 60°C
معرض الشركة
الشهادات والجوائز
قصص النجاح
National Power Utility, Distribution EPC Contractor
salt fog flashover incidents reduced by 60% vs previous composite batch, zero UV degradation, maintenance cost reduced by 50%, replacement rate under 2% over 3-year period
chemically inert to salt and monsoon corrosion, proven 100+ year track record in tropical climates, no UV/hydrophobicity degradation concerns, 20% lower initial cost than composite alternative
National Grid Corporation, Power Transmission EPC Contractor
zero line-tripping incidents, maintenance cost reduced by 70%, 100% visual defect detection (no live-line testing required), pollution flashover incidents reduced by 85% vs porcelain baseline.
zero-value self-breaking enables 100% visual inspection, extreme temperature tolerance (-40°C to +55°C verified in Uzbekistan & Iraq), superior anti-dust self-cleaning in desert environments, 30+ year designed lifespan, proven mechanical reliability at 550 kN tensile strength
مقاطع فيديو الشركة والمنتجات
مقدمة عن الشركة وجولة في المصنع
⏱ Duration: 3:45 | 👁 Views: 15,230
عرض المنتج - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
عرض الابتكار التقني
⏱ Duration: 4:30 | 👁 Views: 12,890
شهادات العملاء وقصص النجاح
⏱ Duration: 6:20 | 👁 Views: 9,650
هل أنت مستعد لتغيير حياتك؟
اتصل بنا الآن لتعرف كيف تلبي منتجاتنا احتياجاتك.
