حول GRT Relay

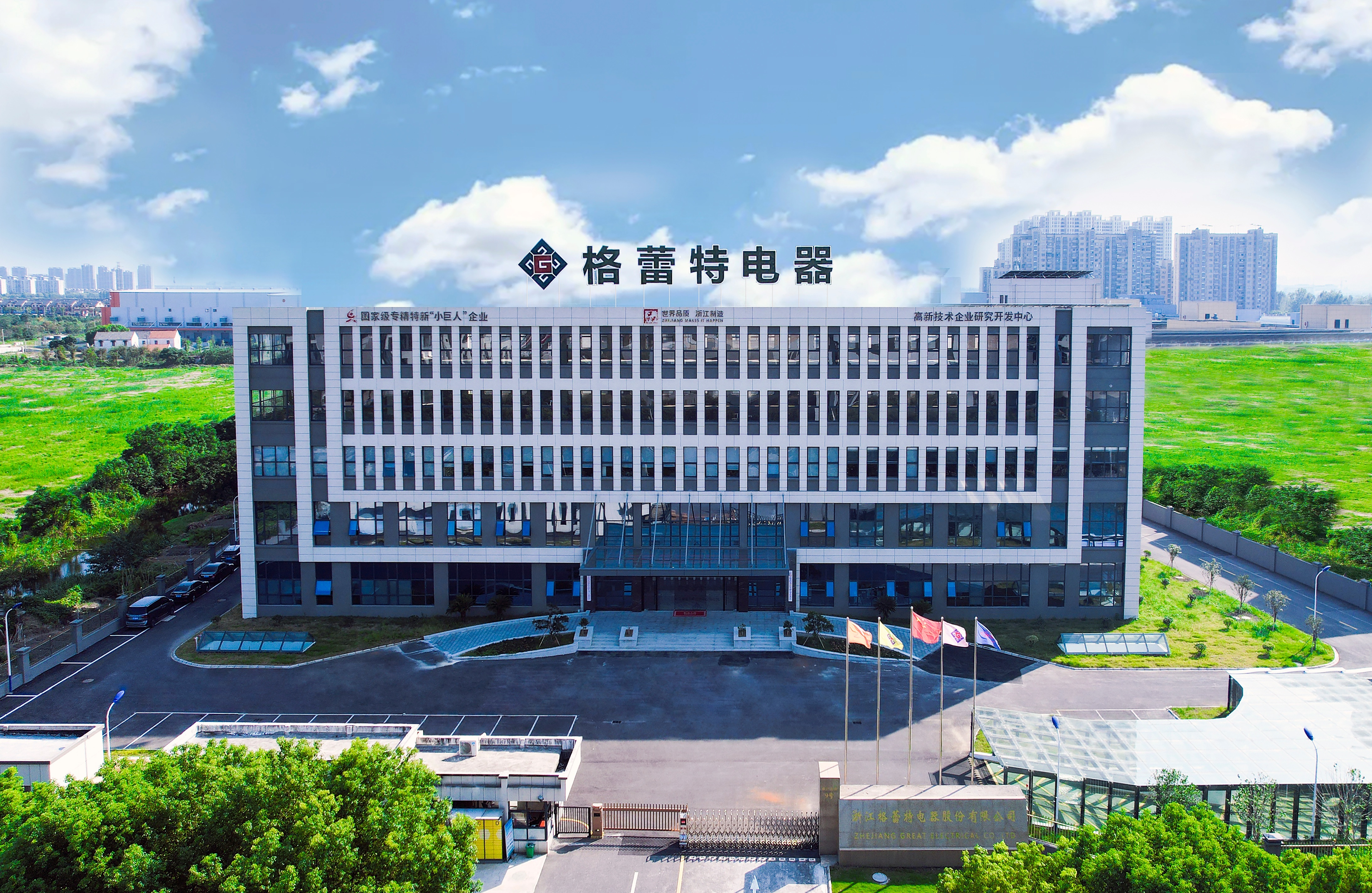

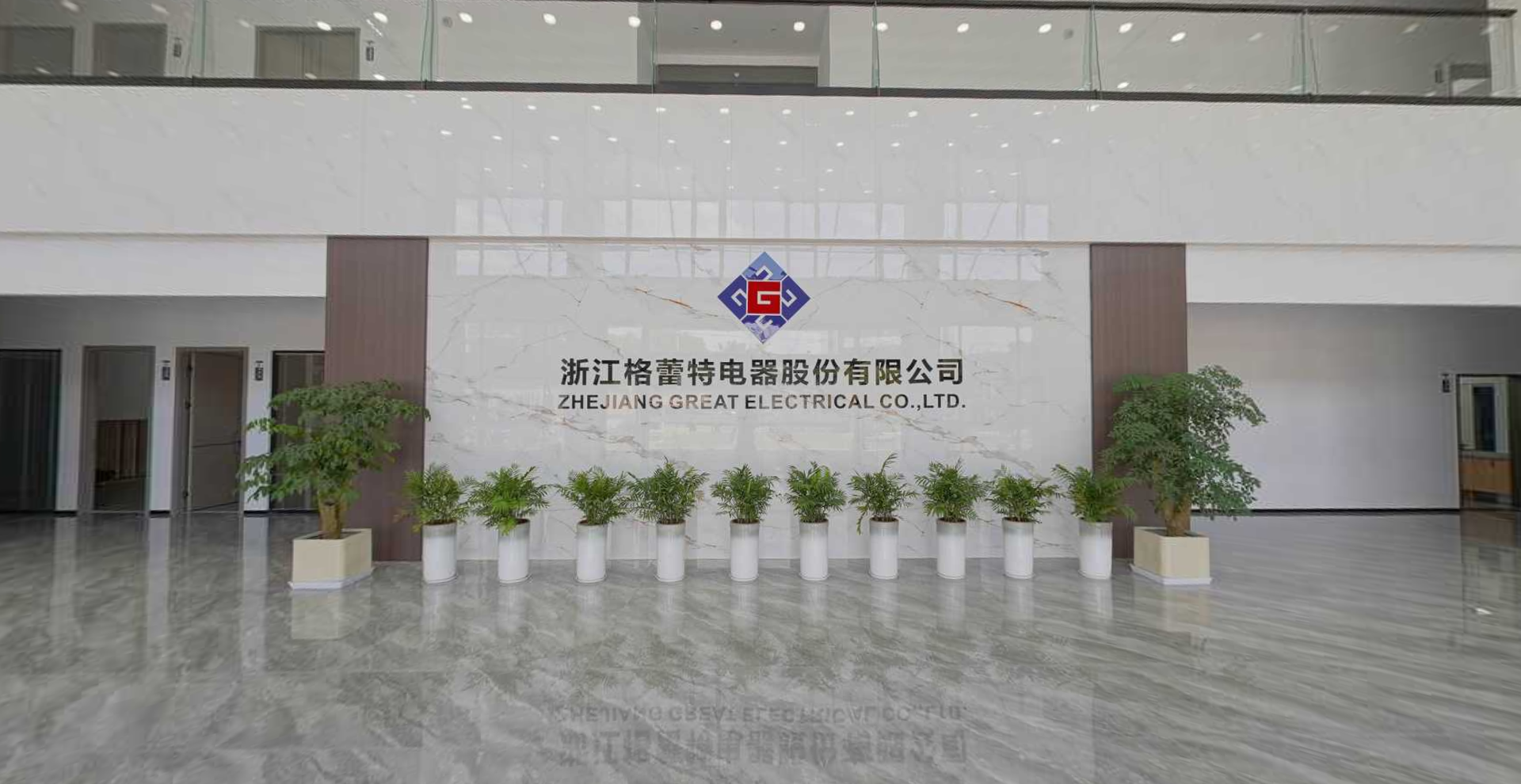

Zhejiang Great Electrical Co., Ltd., formerly known as Wenzhou Great Electrical Co., Ltd., was established in Yueqing, Wenzhou, Zhejiang Province in 2003. In 2010, it moved to Yaozhuang Town, Jiashan County, Jiaxing City, and is a national high-tech enterprise specializing in the research and development, production and sales of power relays, current transformers and shunts. The company's products are mainly used in smart meters, smart homes, new energy charging piles, photovoltaic and energy storage equipment and other fields.
In 2016, it was listed on the New Third Board, and in 2017, it entered the innovation layer, stock code: 838484, stock abbreviation: Great.
The company has five holding subsidiaries: Jiaxing Wisdom Electronic Tech Co., Ltd. Jiaxing Great Intelligent Manufacturing Co., Ltd. Qidong Blackstone Precision Machinery Co., Ltd. Jiaxing Intellisense Tech Co., Ltd. and Haina Intellisense Electronics Co., Ltd.

National-level specialized and new "little giant" enterprise
National high-tech enterprise
"Five-star" level enterprise
Top 10 per acre output demonstration enterprises
Top 10 enterprises with scientific and technological progress and talents
Jiashan County "Unicorn" shortlisted enterprises
🎓
فريق عالمي المستوى
خريجو جامعات عالمية مرموقة
🔬
بحث وتطوير متقدم
تطوير ذاتي
🤖
التركيز على الابتكار
تقنيات ابتكارية متعددة

منتجاتنا

عرض جميع المنتجات ← →

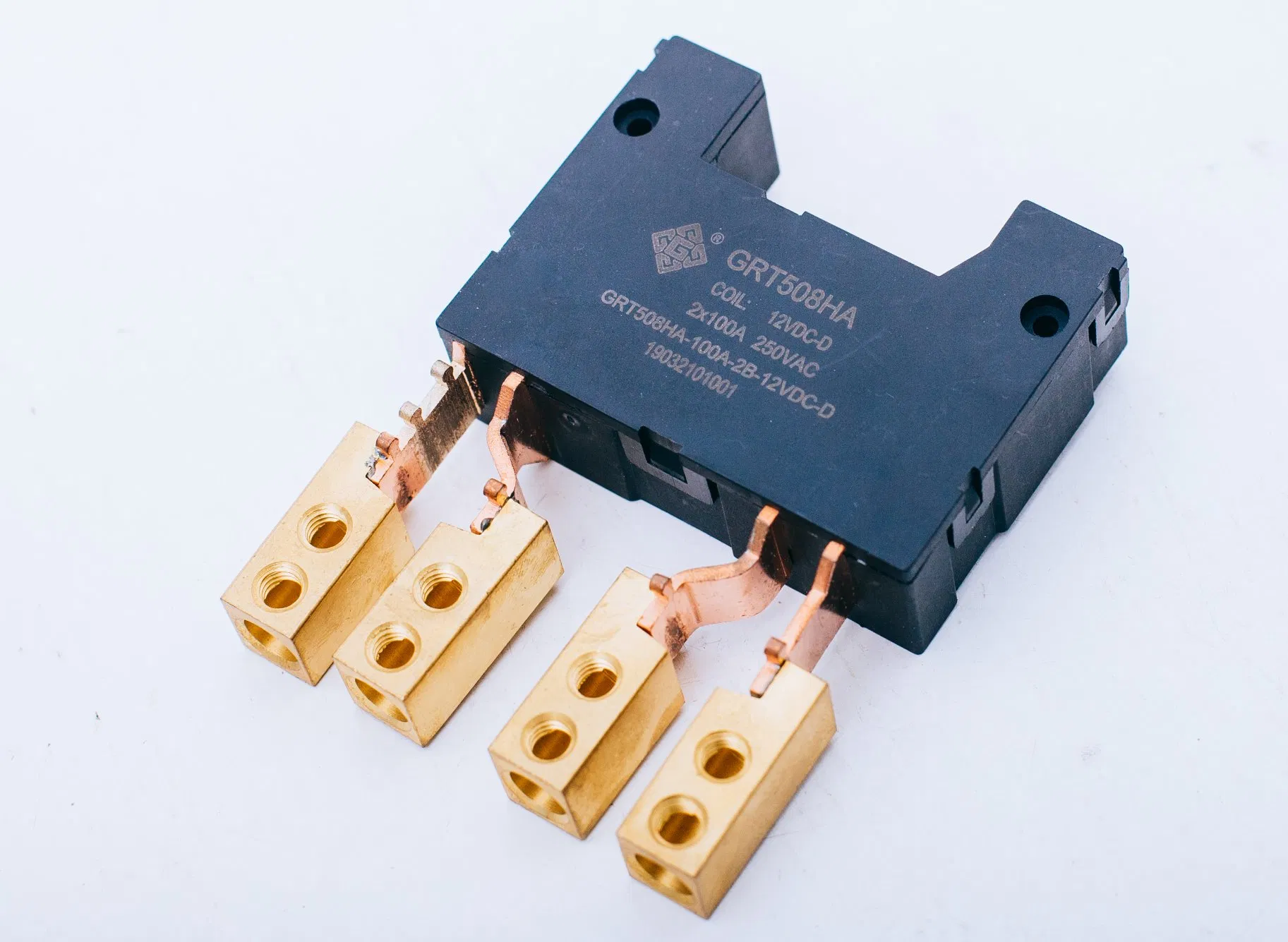

Latching Relay

Latching Relay

الموديل: GRT508HA
المعلمات: Rated Load(resistive): 100A
Contact Material：AgSnO2
Max. Switching Current: 100A
Max. Switching Voltage: 250VAC
Coil Voltage：5-48 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance：10,000 OPS(80A 250VAC) / 6000 OPS(100A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

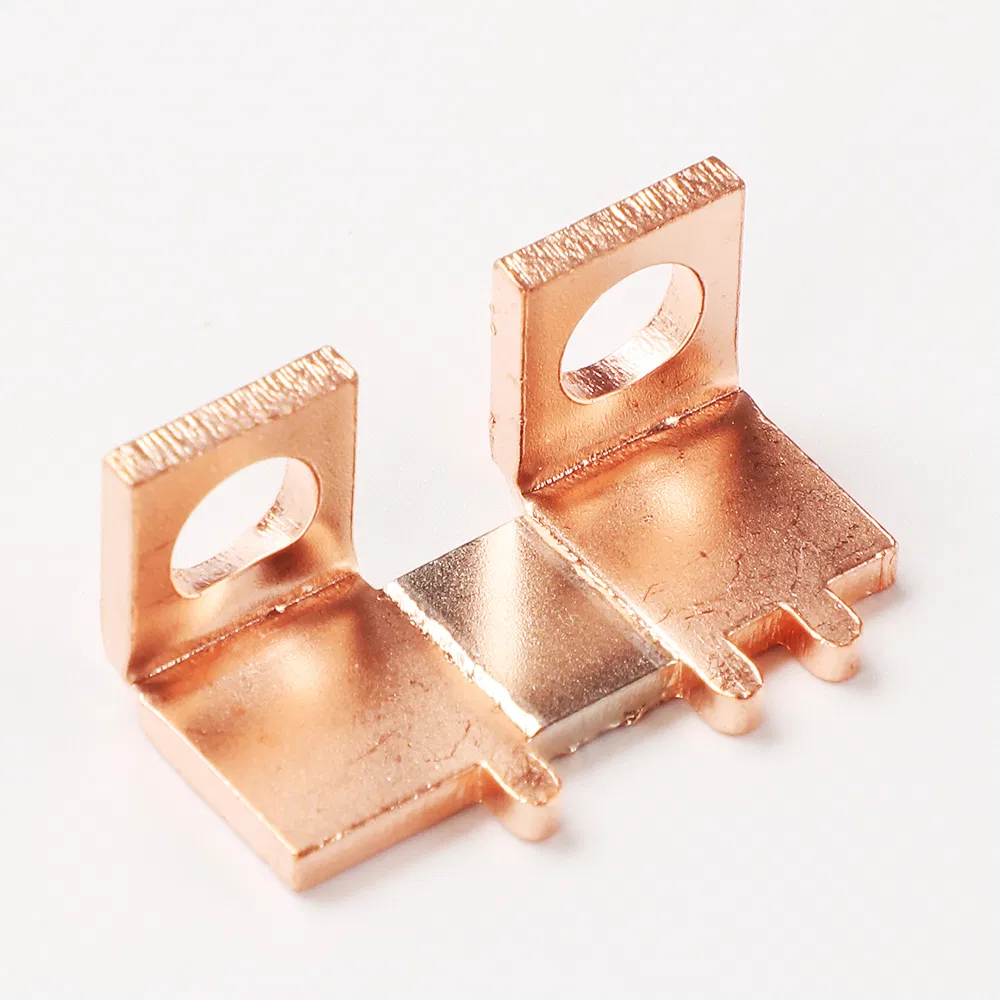

shunt

shunt

الموديل: GRT505
المعلمات: Resistance value(μΩ): ≤100 ~ ≥500
Tolerance: ±1% /±5% /±10%
TRC: ≤±50PPM
Power: 3W
Thickness(mm): 1.0~2.0

Latching Relay

Latching Relay

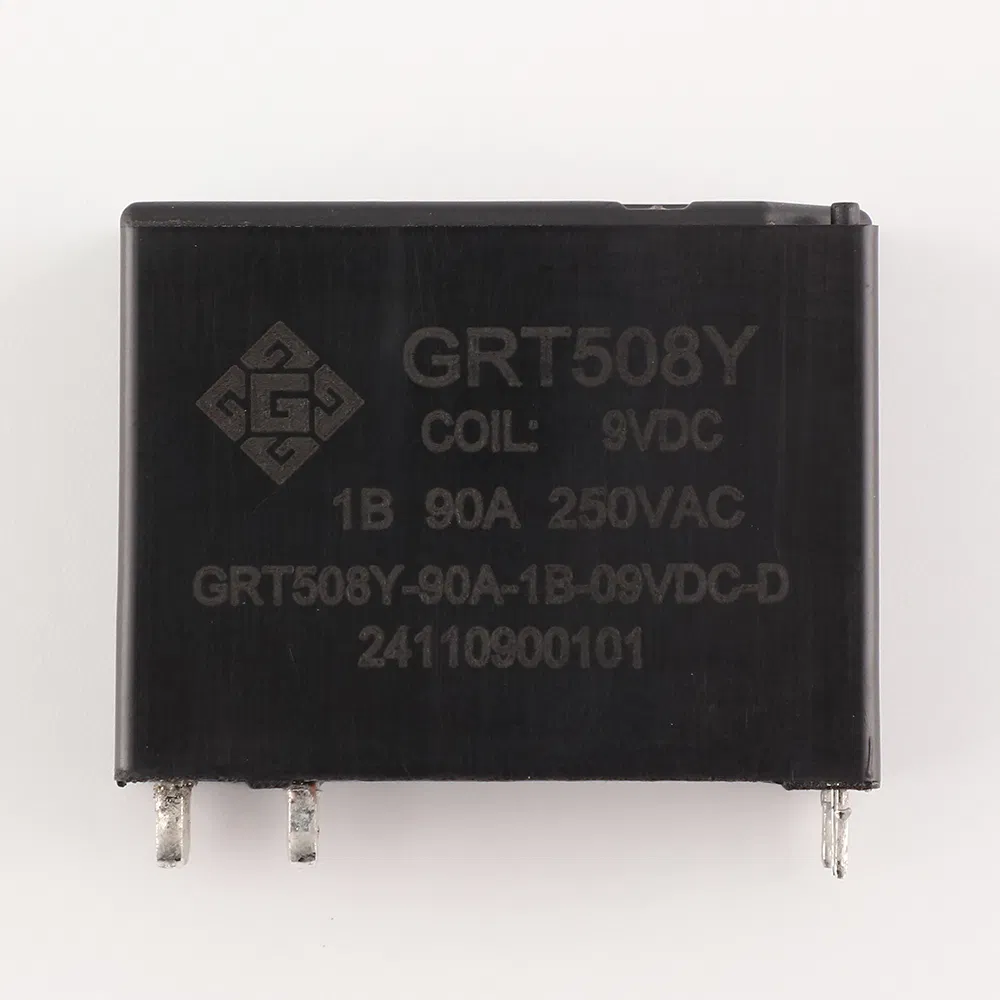

الموديل: GRT508Y-90A
المعلمات: Rated Load(resistive): 90A
Contact Material：AgSnO2
Max. Switching Current: 90A
Max. Switching Voltage: 440VAC
Coil Voltage：6-24 VDC
Mechanical Endurance: 1,000,000 OPS
Electrical Endurance: 10,000 OPS
Max. Short-Circuit Current: 1200A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：PCB

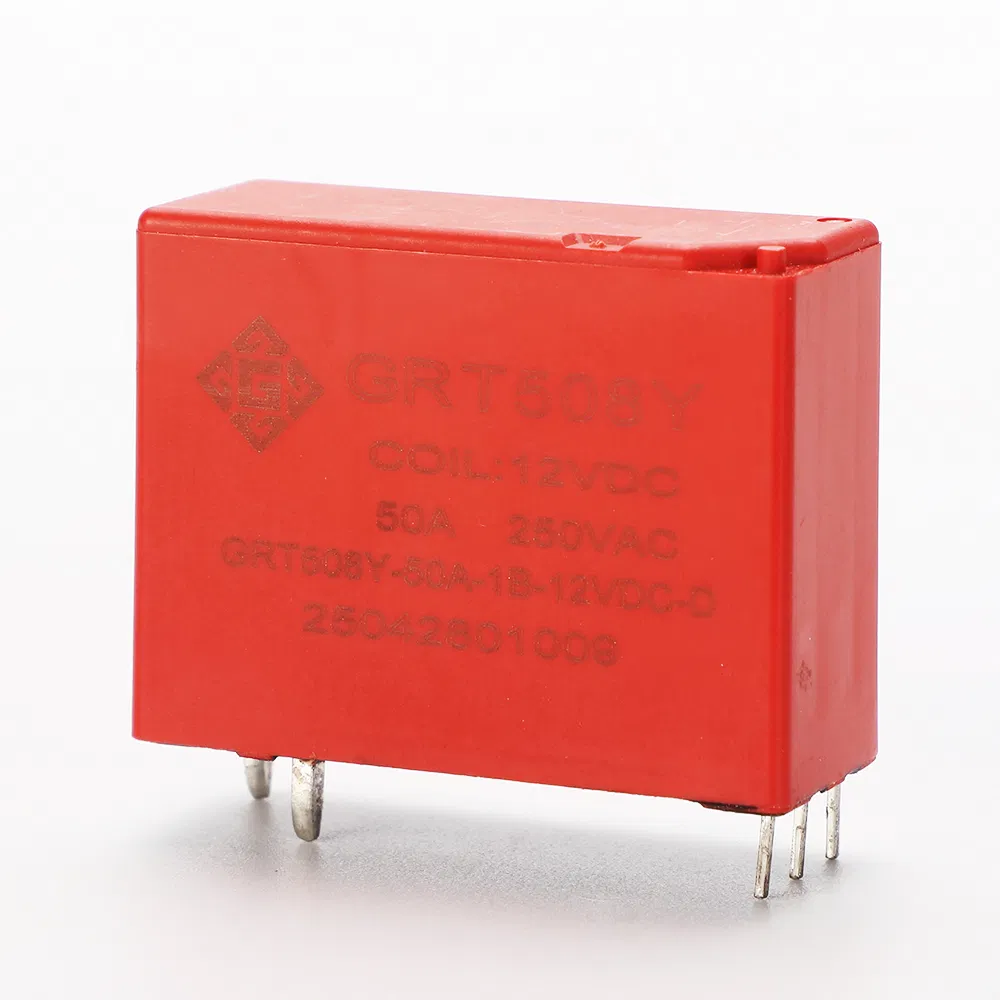

Latching Relay

Latching Relay

الموديل: GRT508Y-50A
المعلمات: Rated Load(resistive): 50A
Contact Material：AgSnO2
Max. Switching Current: 50A
Max. Switching Voltage: 440VAC
Coil Voltage：5-48 VDC
Mechanical Endurance: 1,000,000 OPS
Electrical Endurance: 30,000 OPS
Max. Short-Circuit Current: 1200A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：PCB

Latching Relay

Latching Relay

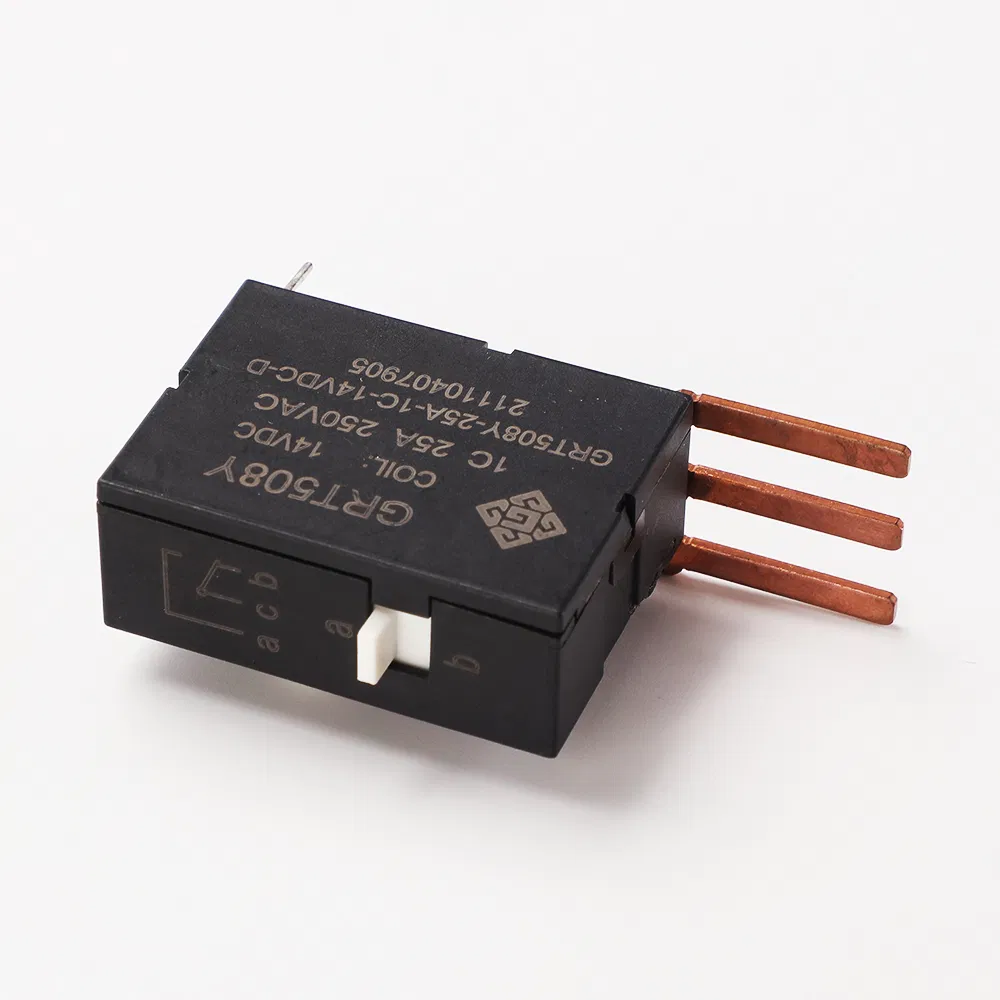

الموديل: GRT508Y-40A/25A
المعلمات: Rated Load(resistive): 40A
Contact Material：AgSnO2
Max. Switching Current: 40A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 500,000 OPS
Electrical Endurance: 20,000 OPS
Max. Short-Circuit Current: 750A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：PCB

Latching Relay

Latching Relay

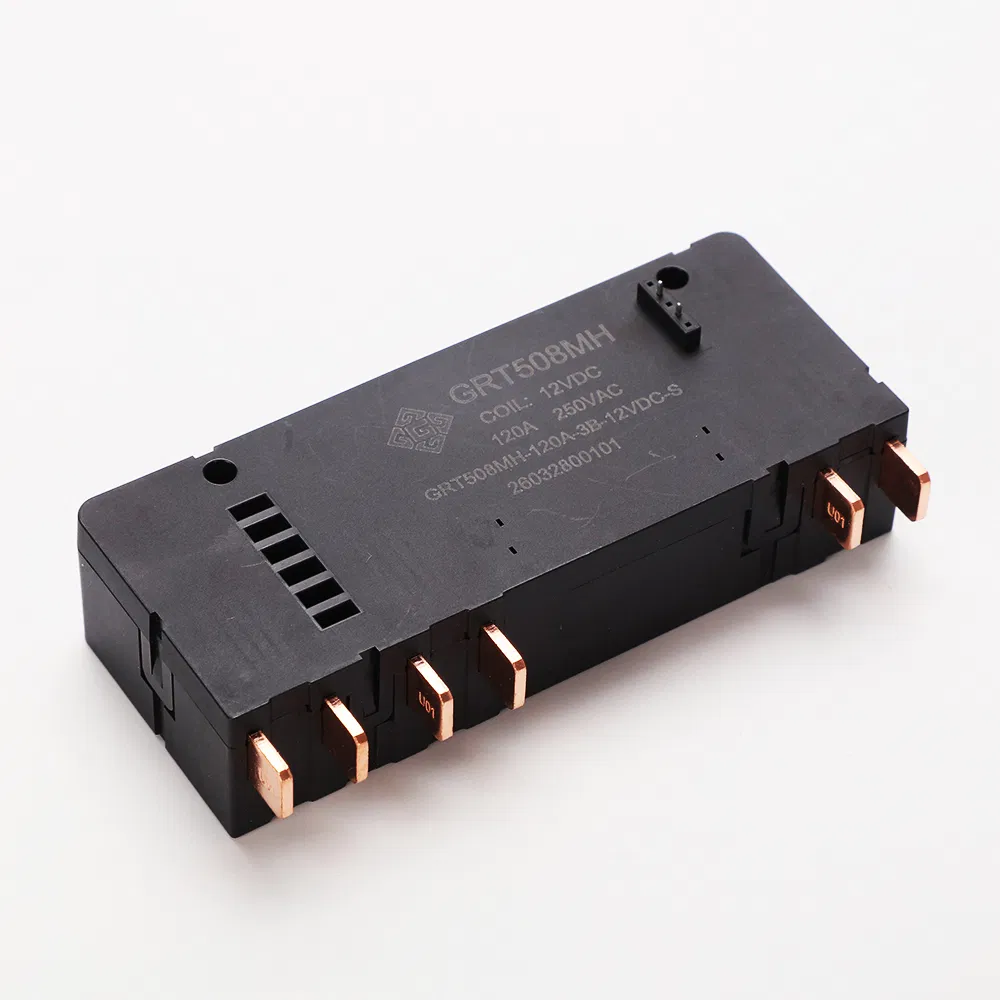

الموديل: GRT508MH
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 276VAC
Coil Voltage：5-48 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

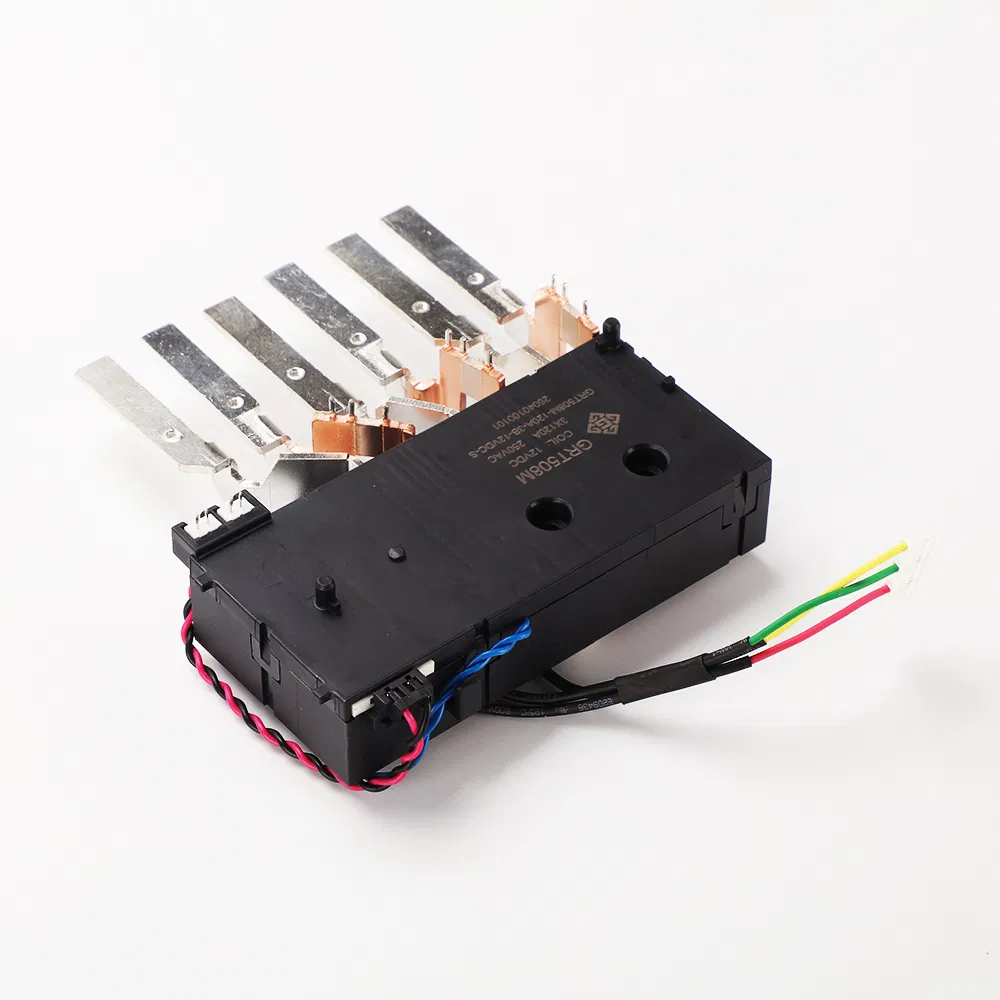

الموديل: GRT508M
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 380VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (100A 250VAC) / 6000 OPS(120A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

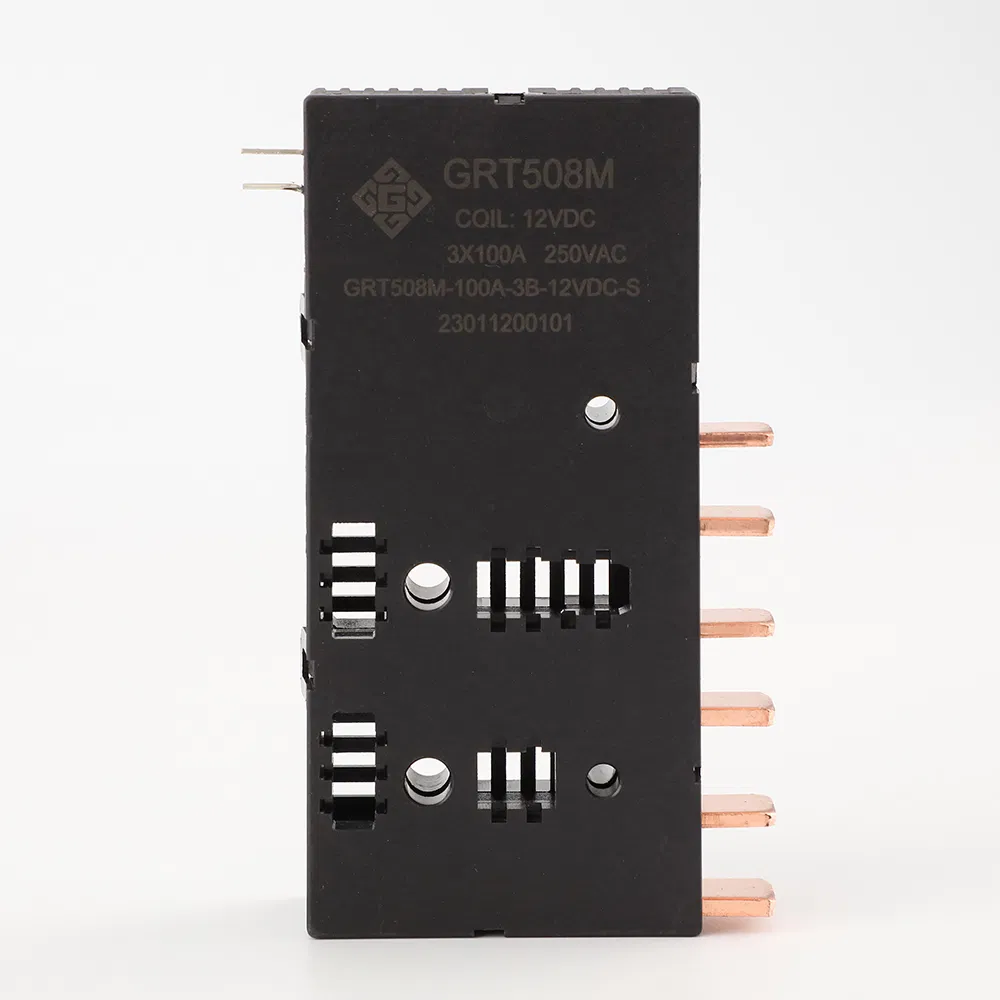

الموديل: GRT508M
المعلمات: Rated Load(resistive): 100A
Contact Material：AgSnO2
Max. Switching Current: 100A
Max. Switching Voltage: 276VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (60A 250VAC) / 6000 OPS(80A 250VAC)
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

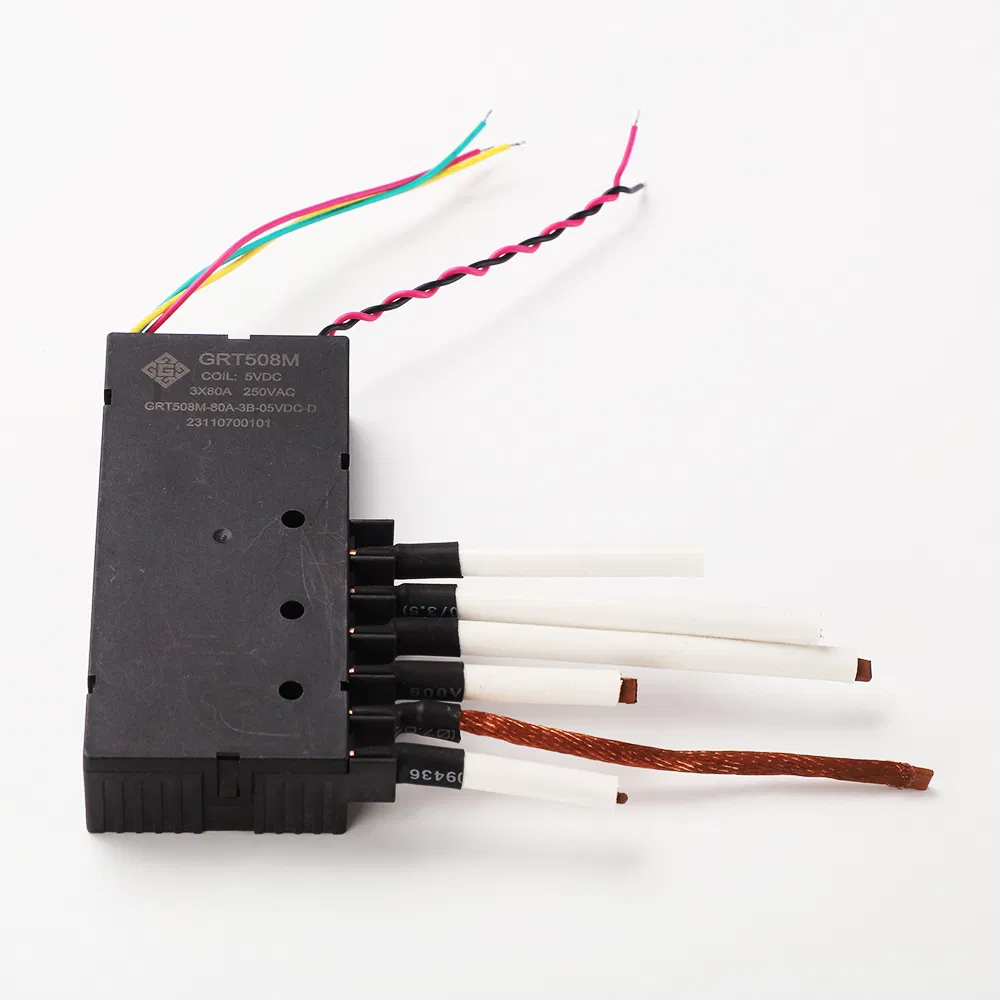

الموديل: GRT508M
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 380VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (60A 250VAC) / 6000 OPS(80A 250VAC)
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

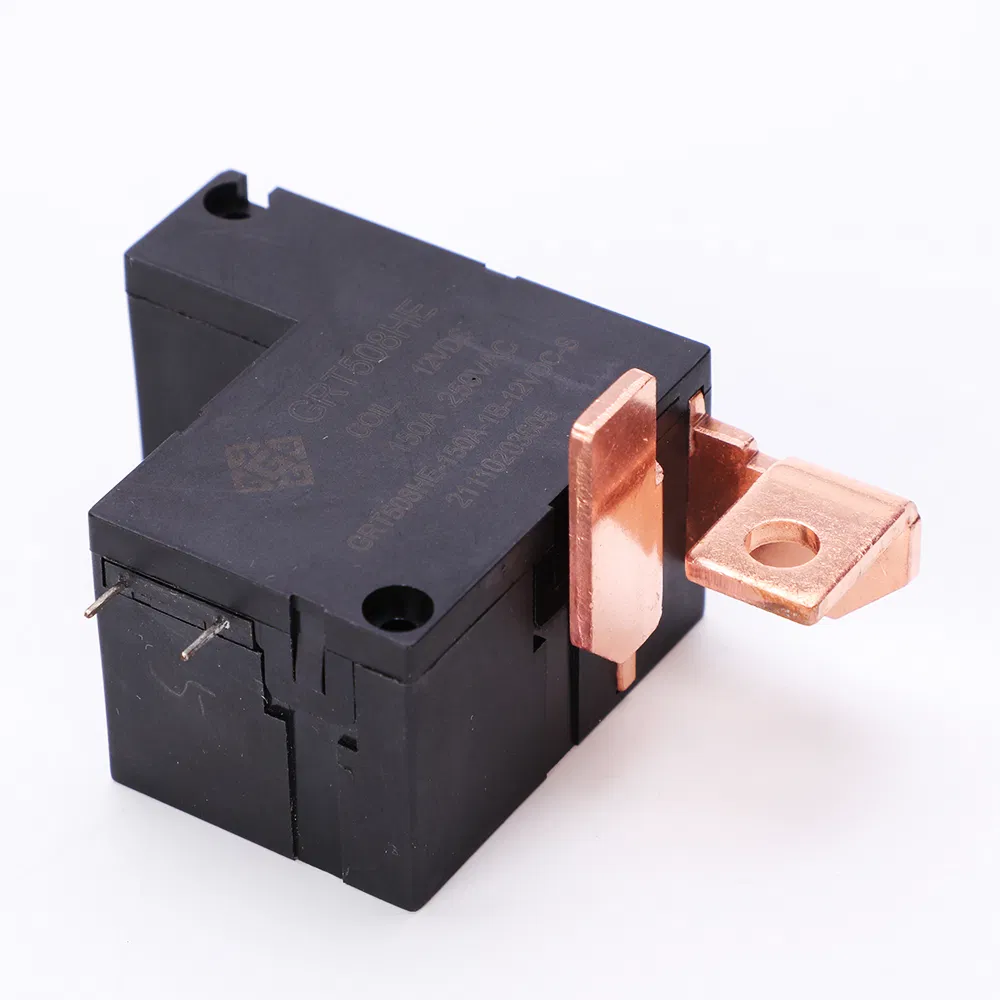

الموديل: GRT508HE
المعلمات: Rated Load(resistive): 150A
Contact Material：AgSnO2
Max. Switching Current: 150A
Max. Switching Voltage: 253VAC
Coil Voltage：6-24 VDC
Mechanical Endurance: 100,000 OPS
Electrial Endurance: 10,000 OPS(120A 250VAC) / 5,000 OPS(150A 250VAC)
Max. Short-Circuit Current: 3000A/10ms / 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

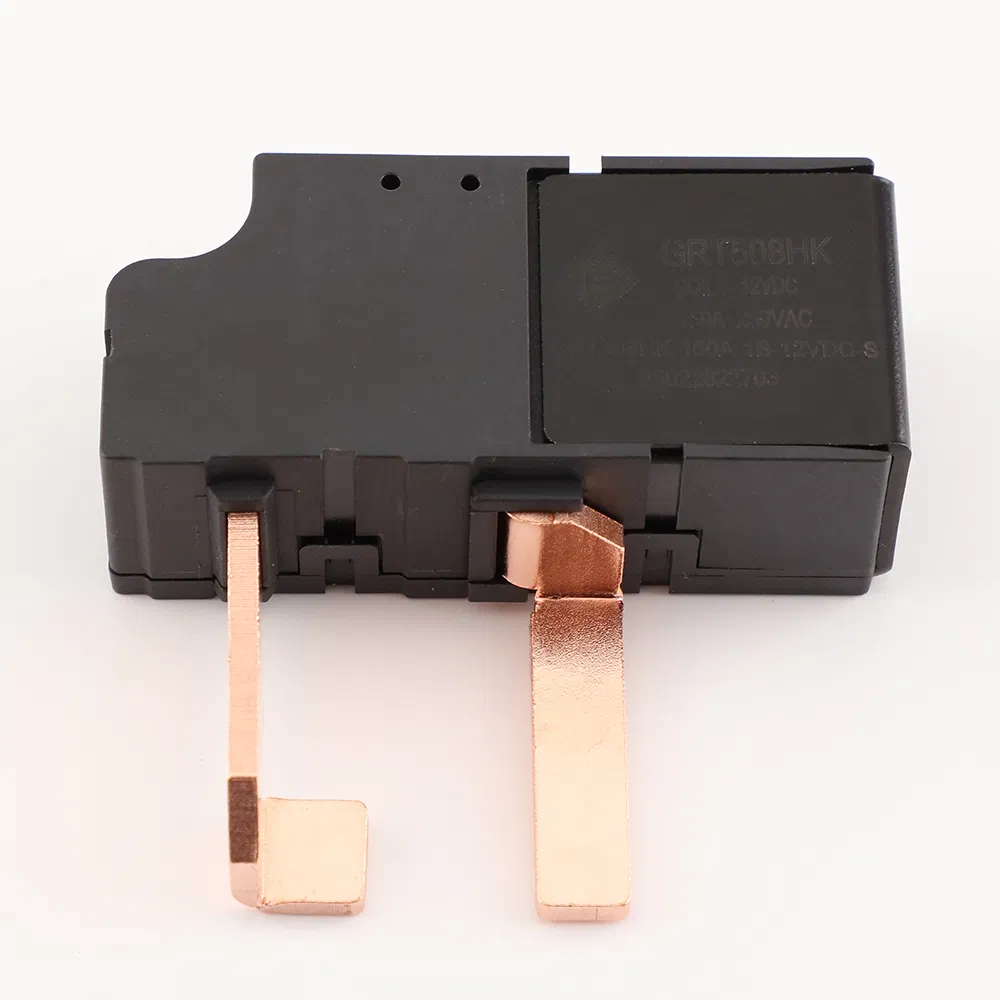

الموديل: GRT508HK
المعلمات: Rated Load(resistive): 150A
Contact Material：AgSnO2
Max. Switching Current: 150A
Max. Switching Voltage: 440VAC/28VDC
Coil Voltage：6-24 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

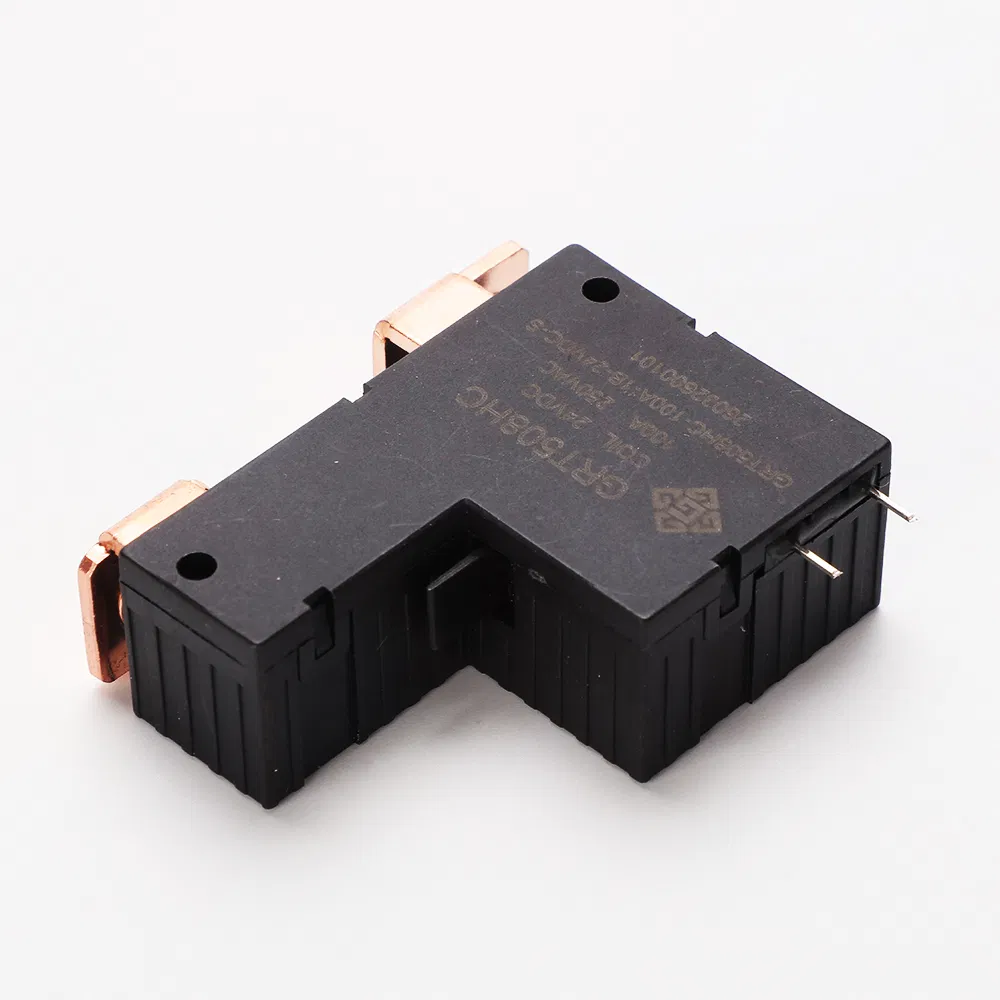

الموديل: GRT508HC
المعلمات: Rated Load(resistive): 100A
Contact Material：AgSnO2
Max. Switching Current: 100A
Max. Switching Voltage: 440VAC/28VDC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 6,000 OPS
Max. Short-Circuit Current: 1500A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

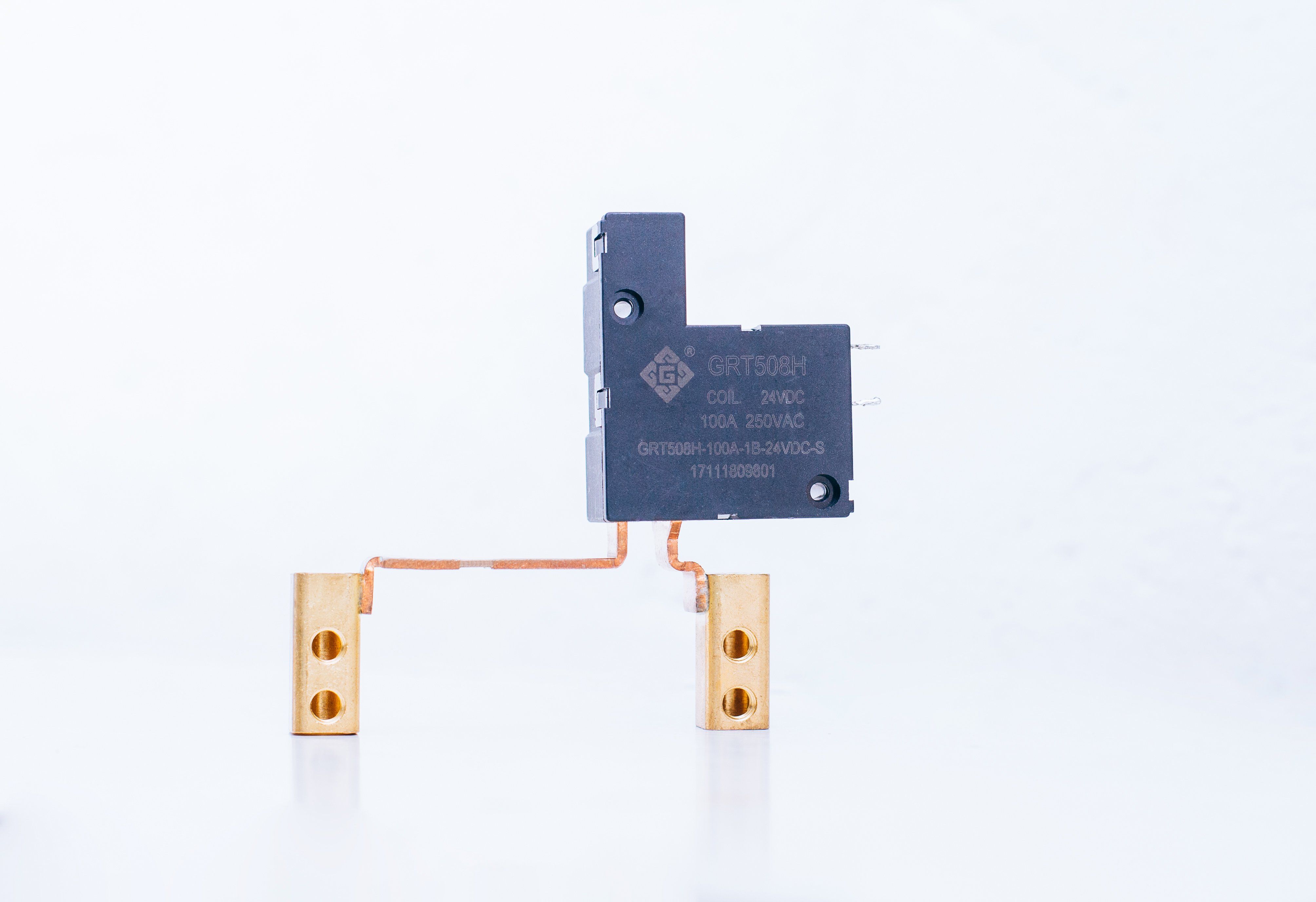

الموديل: GRT508H
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (100A 250VAC) / 6,000 OPS(120A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

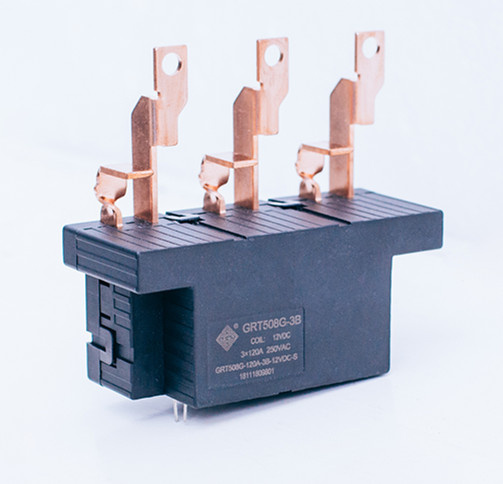

الموديل: GRT508G-3B
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 380VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS(100A 250VAC) / 6,000 OPS(120A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

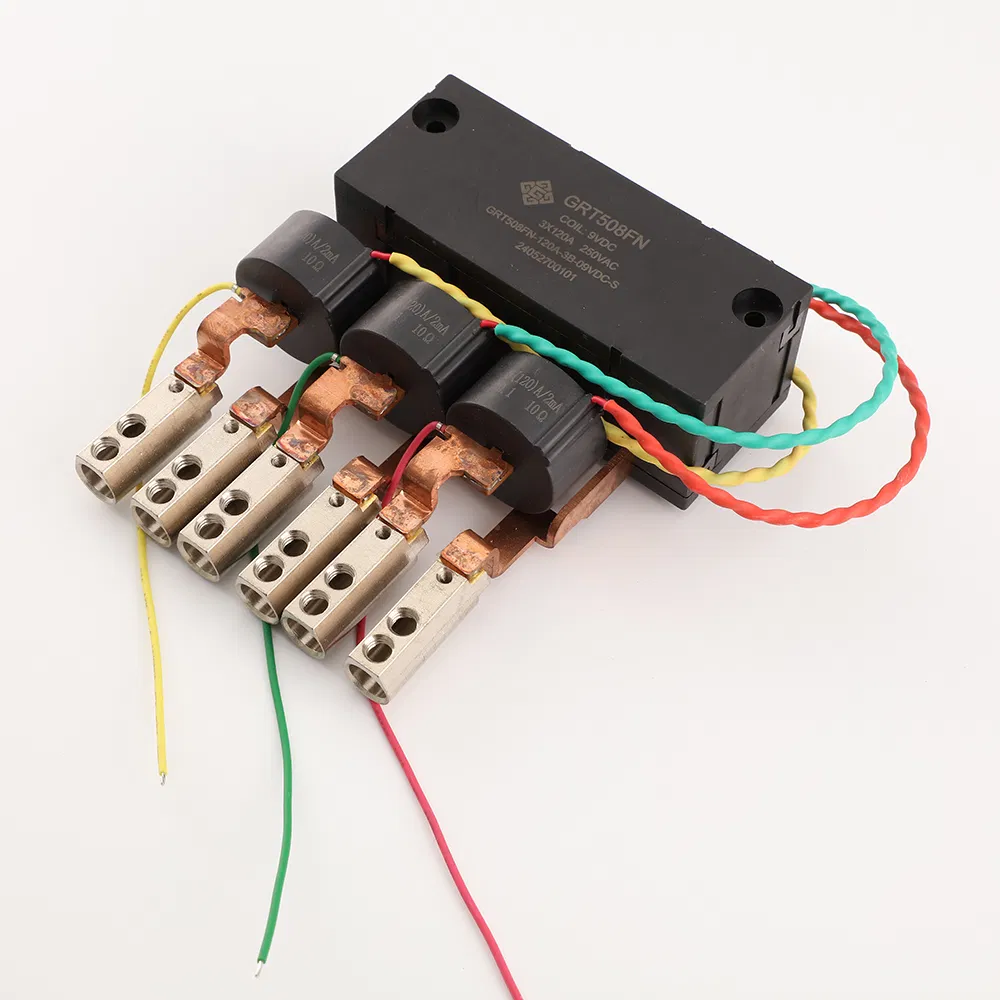

الموديل: GRT508FN
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS(100A 230VAC) / 6,000 OPS(120A 230VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

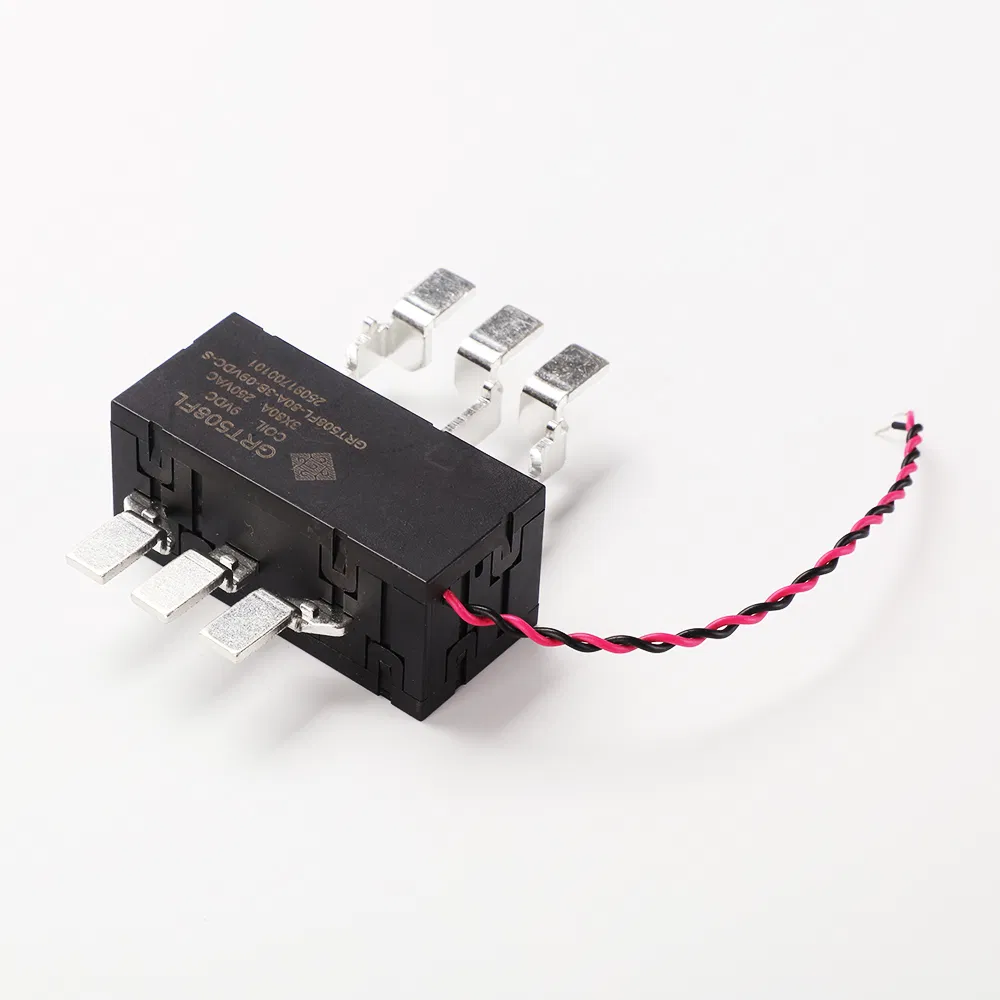

Latching Relay

Latching Relay

الموديل: GRT508FL
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 380VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 1500A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

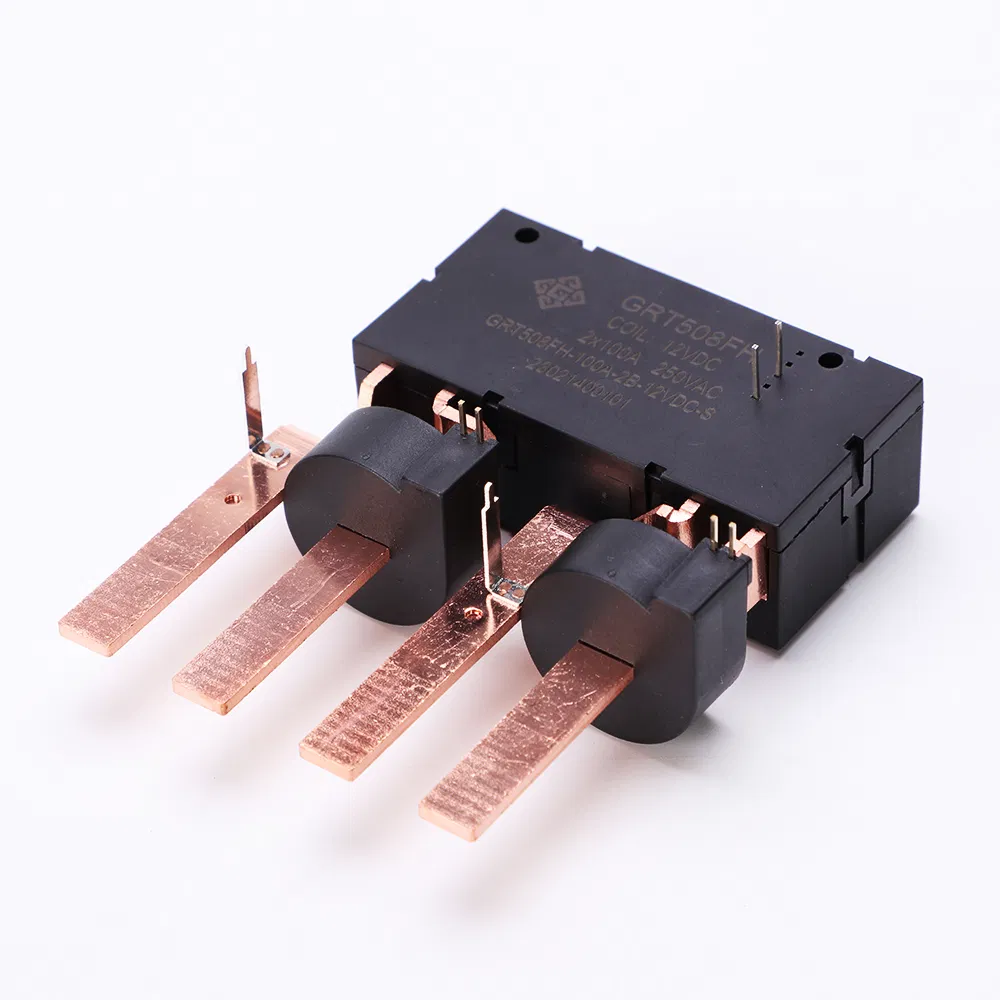

الموديل: GRT508FH
المعلمات: Rated Load(resistive): 100A
Contact Material：AgSnO2
Max. Switching Current: 100A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance：10,000 OPS(100A 250VAC) / 5000 OPS(120A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

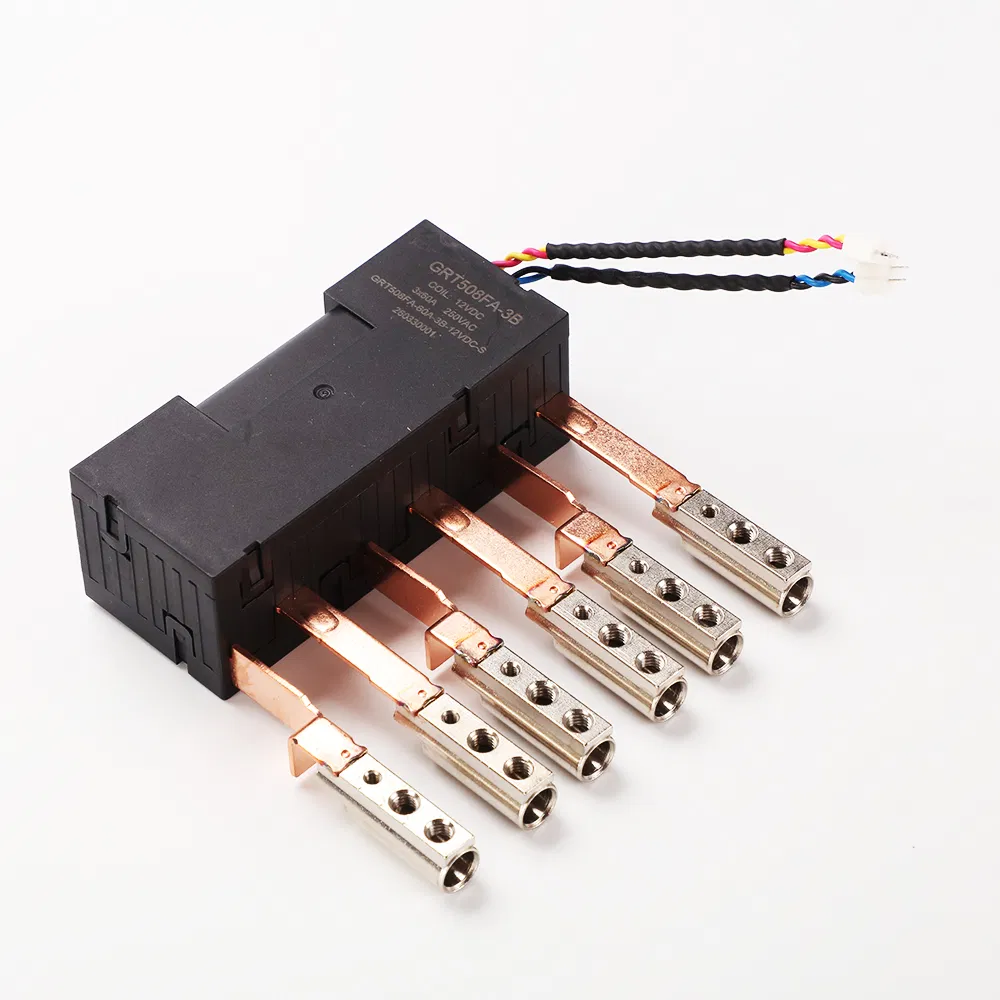

الموديل: GRT508FA3B
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 380VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (60A 250VAC) / 6000 OPS(80A 250VAC)
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion）
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

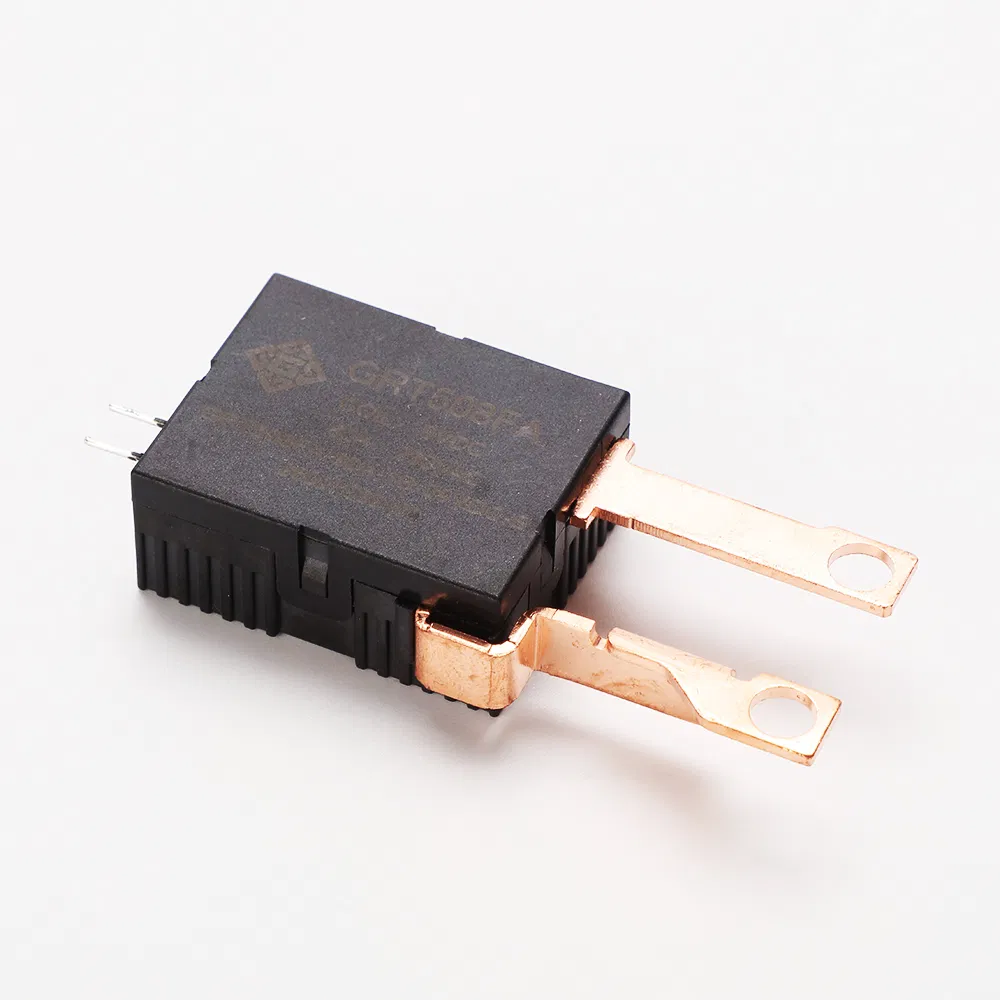

الموديل: GRT508FA
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (60A 250VAC) / 6000 OPS(80A 250VAC)
Max. Short-Circuit Current: 1800A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

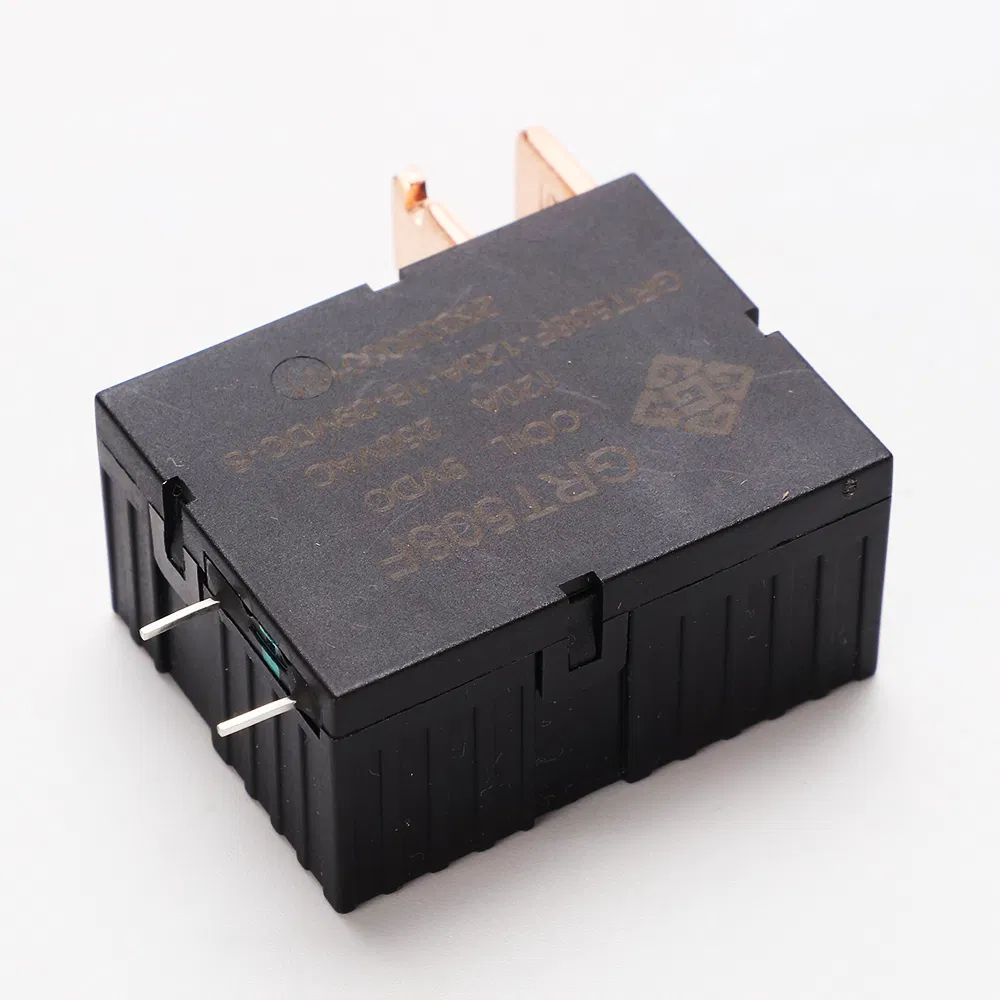

Latching Relay

Latching Relay

الموديل: GRT508F
المعلمات: Rated Load(resistive): 120A
Contact Material：AgSnO2
Max. Switching Current: 120A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (100A 250VAC) / 6000 OPS(120A 250VAC)
Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

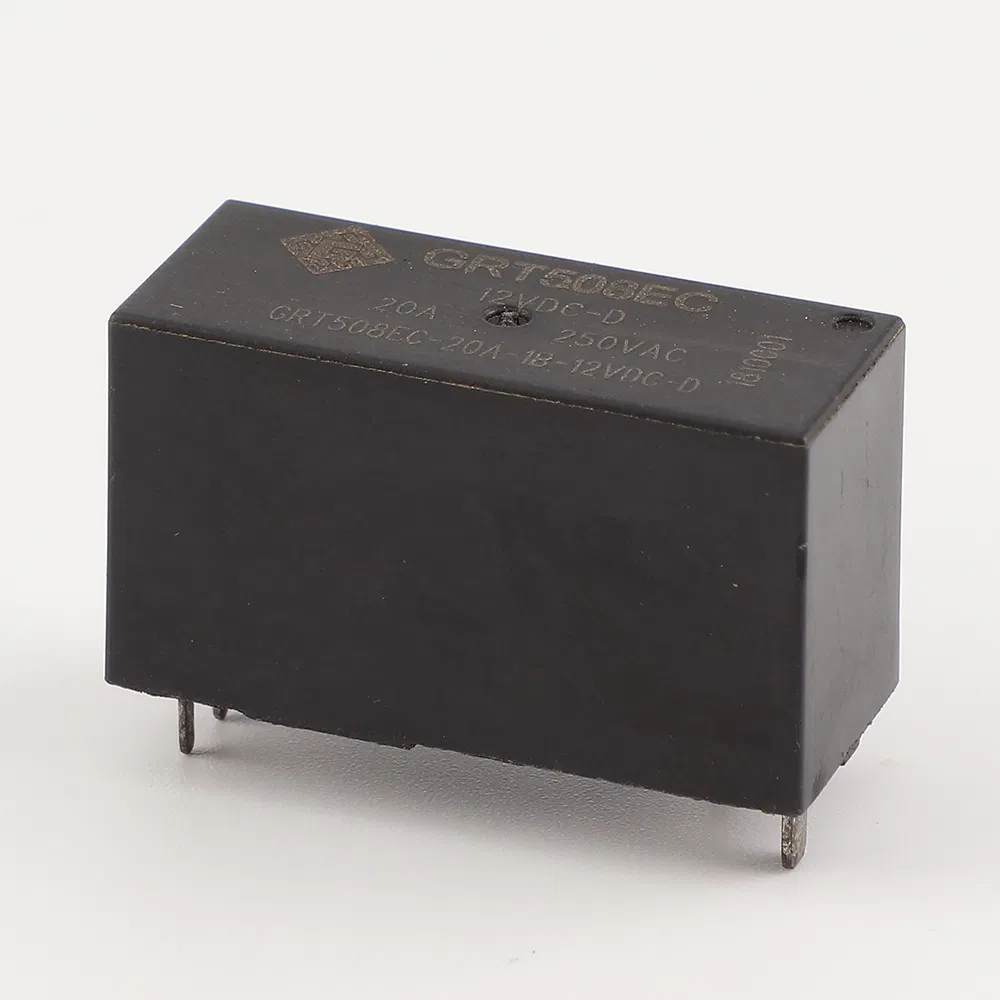

Latching Relay

Latching Relay

الموديل: GRT508E
المعلمات: Rated Load(resistive): 20A
Contact Material：AgSnO2
Max. Switching Current: 20A
Max. Switching Voltage: 277VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 100,000 OPS(16A 250VAC) / 60000 OPS(20A 250VAC)
Max. Short-Circuit Current: 500A/2ms
Ambient Temperature：-40℃~+85℃
Installation form：PCB

Latching Relay

Latching Relay

الموديل: GRT508BW
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance：10,000 OPS
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

الموديل: GRT508BV
المعلمات: Rated Load(resistive): 80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

الموديل: GRT508BG
المعلمات: Rated Load(resistive): 90A
Contact Material：AgSnO2
Max. Switching Current: 90A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：PCB

Latching Relay

Latching Relay

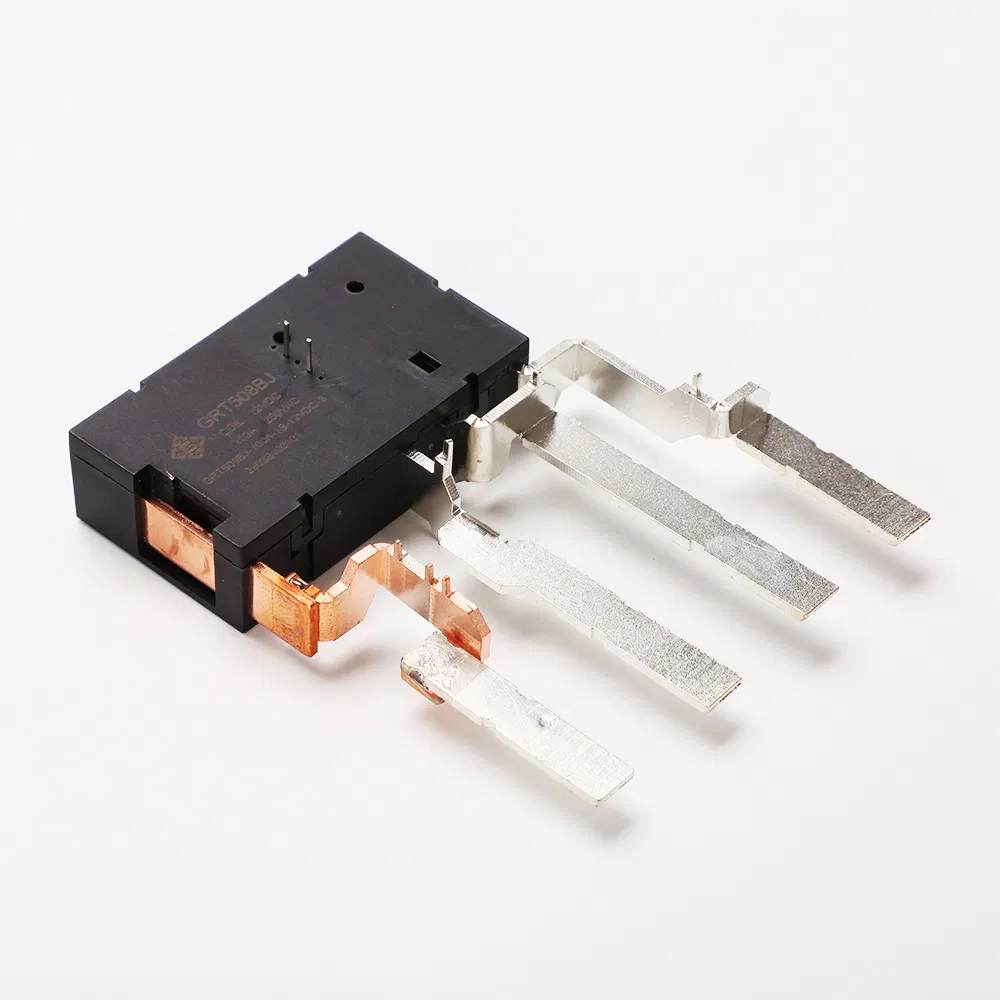

الموديل: GRT508BJ
المعلمات: Rated Load(resistive): 90A
Contact Material：AgSnO2
Max. Switching Current: 90A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

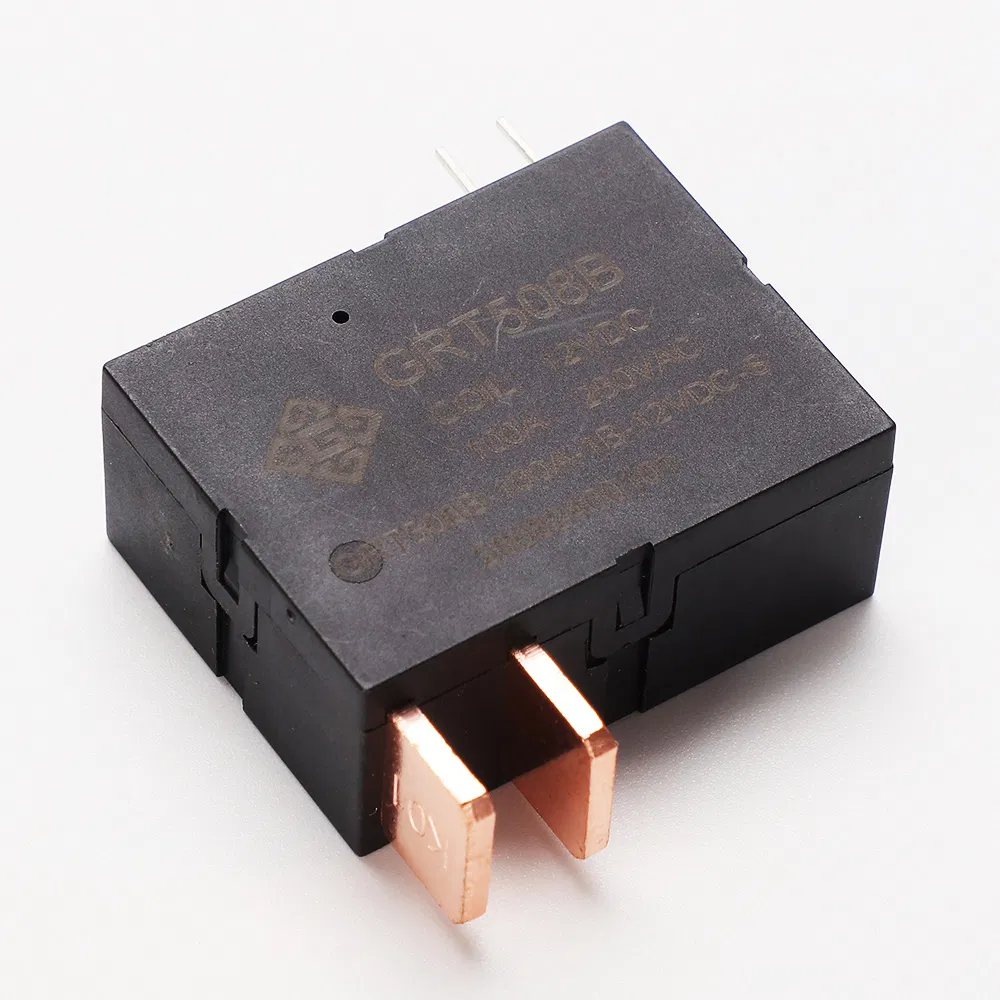

Latching Relay

Latching Relay

الموديل: GRT508B
المعلمات: Rated Load(resistive): 100A
Contact Material：AgSnO2
Max. Switching Current: 100A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 5,000 OPS (100A 250VAC) / 10,000 OPS (80A 250VAC)
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

Latching Relay

Latching Relay

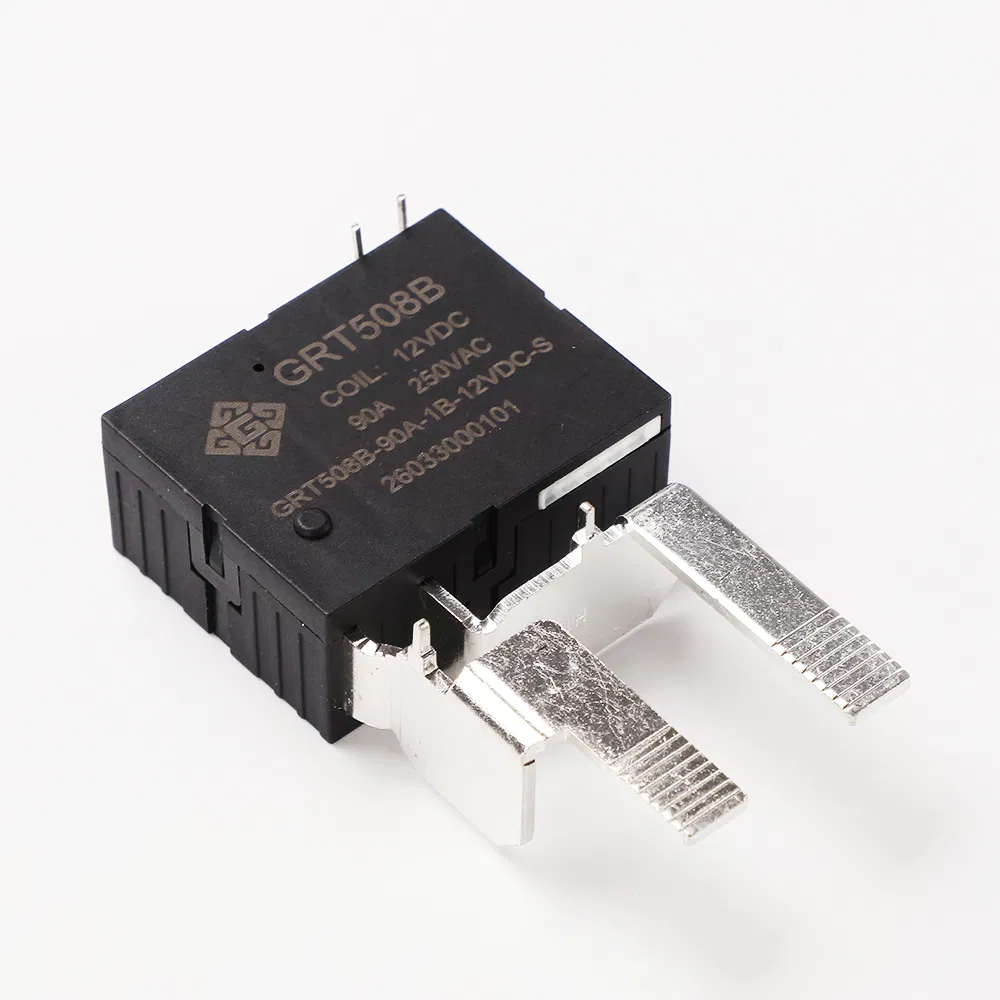

الموديل: GRT508B
المعلمات: Rated Load(resistive): 60A/90A
Contact Material：AgSnO2
Max. Switching Current: 90A
Max. Switching Voltage: 250VAC
Coil Voltage：5-24 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS
Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion)
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

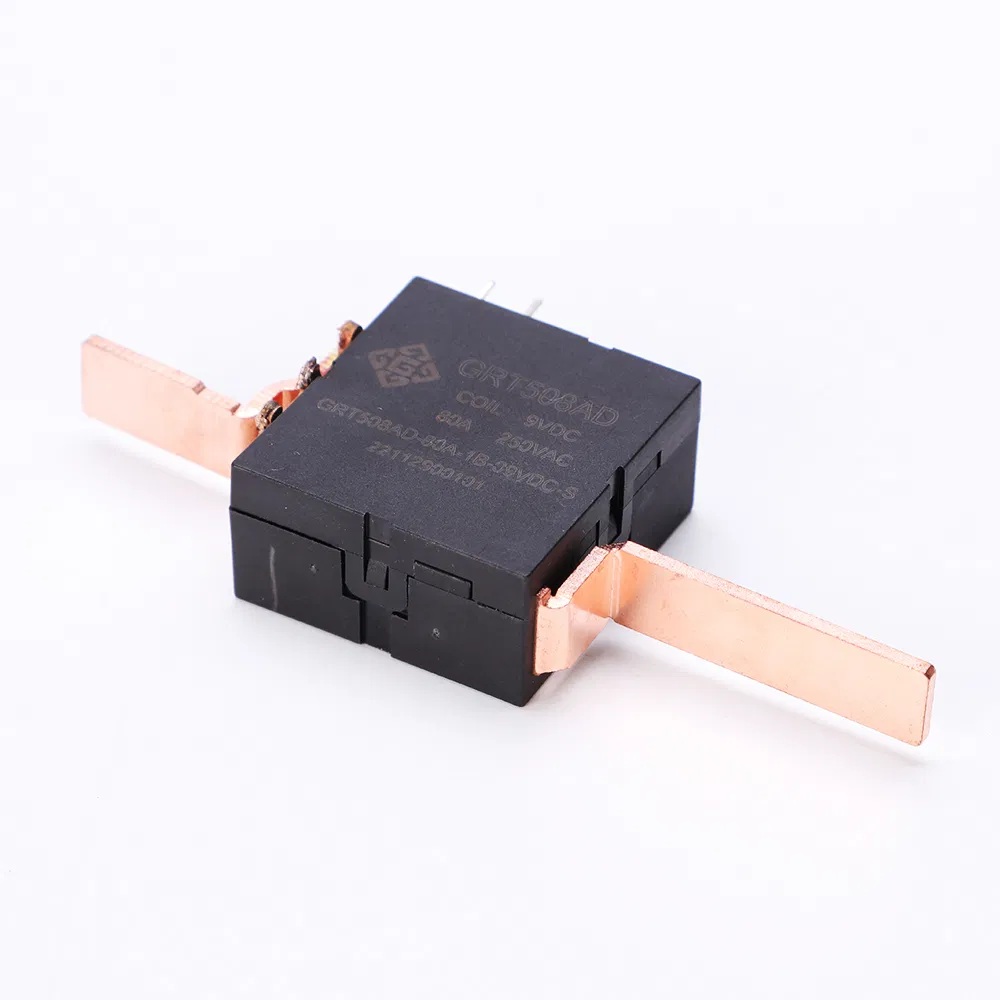

Latching Relay

Latching Relay

الموديل: GRT508AD
المعلمات: Rated Load(resistive): 60A/80A
Contact Material：AgSnO2
Max. Switching Current: 80A
Max. Switching Voltage: 250VAC
Coil Voltage：5-48 VDC
Mechanical Endurance: 100,000 OPS
Electrical Endurance: 10,000 OPS (60A 250VAC)/ 3,000 OPS (80A 250VAC)
Max. Short-Circuit Current: 1500A/10ms
Ambient Temperature：-40℃~+85℃
Installation form：Fast Connection

معرض الشركة

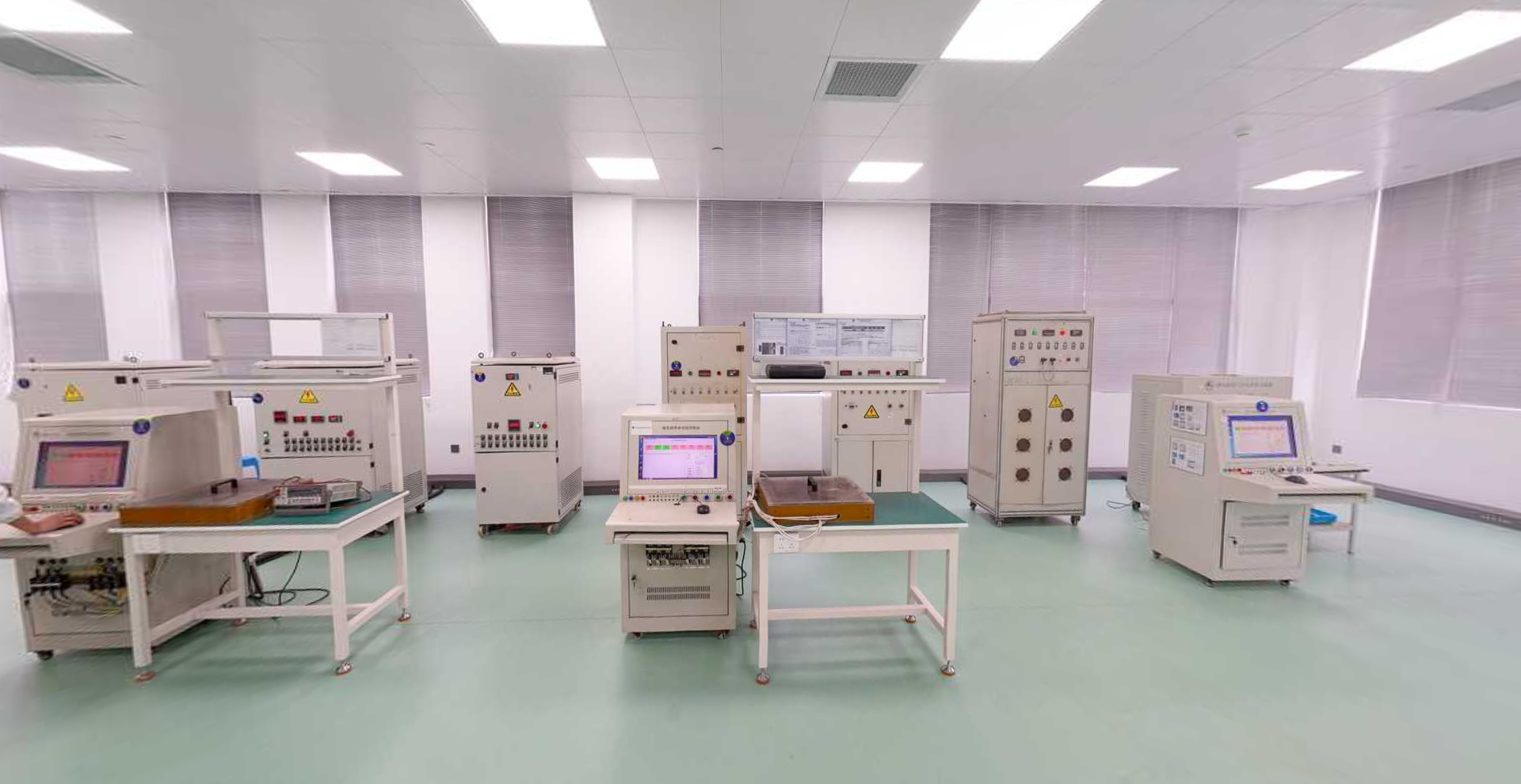

lab
lab

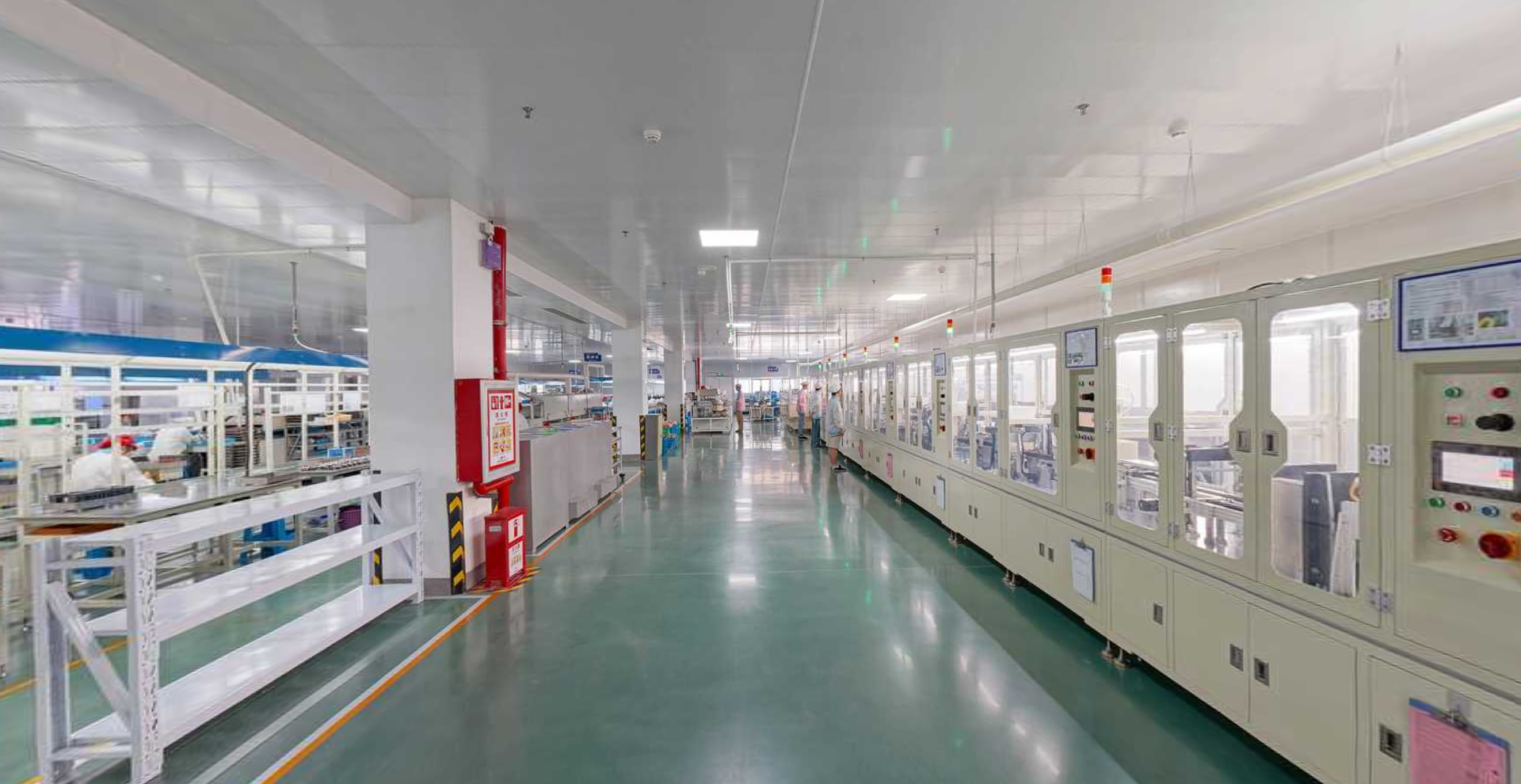

workshop
workshop

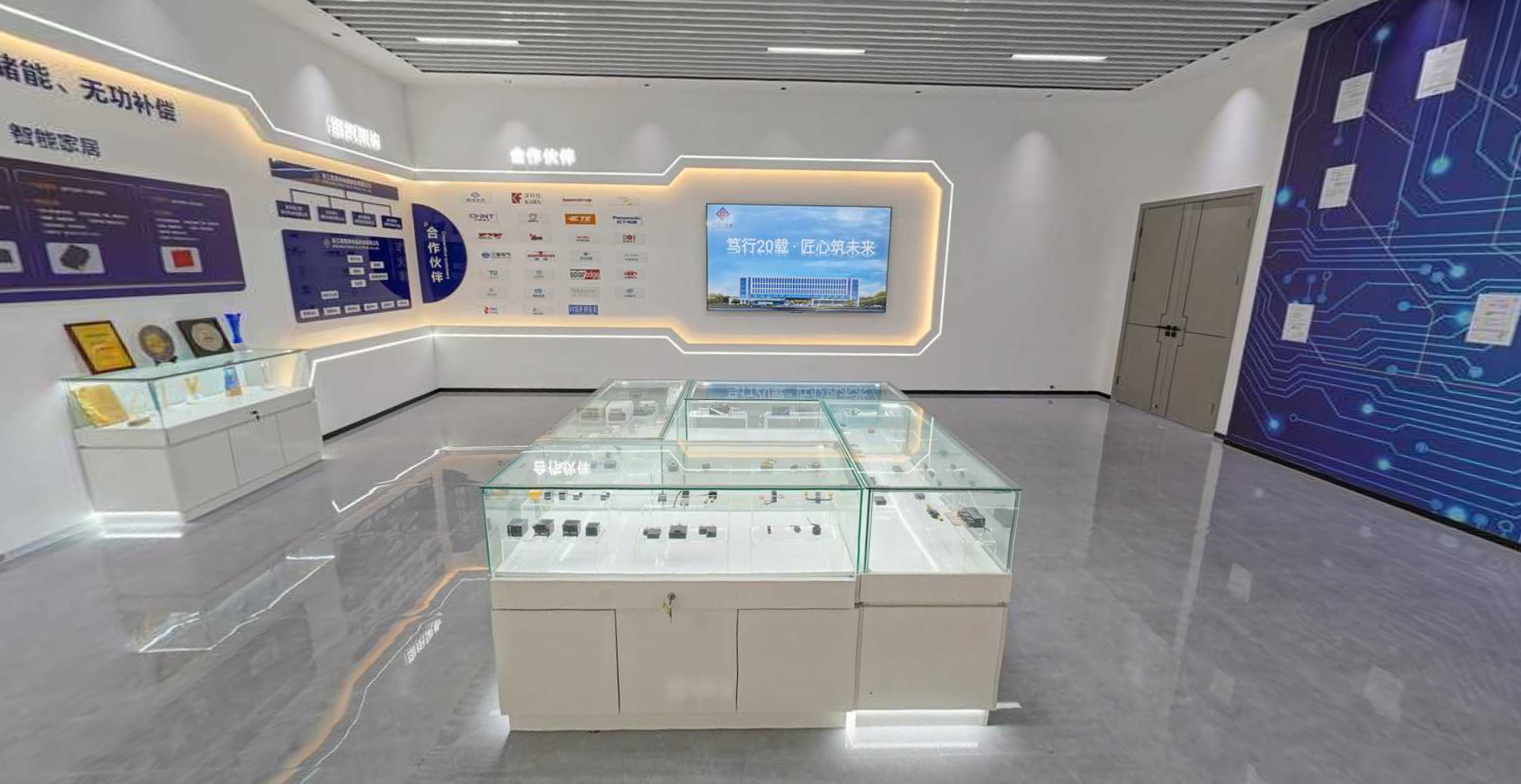

showroom
showroom

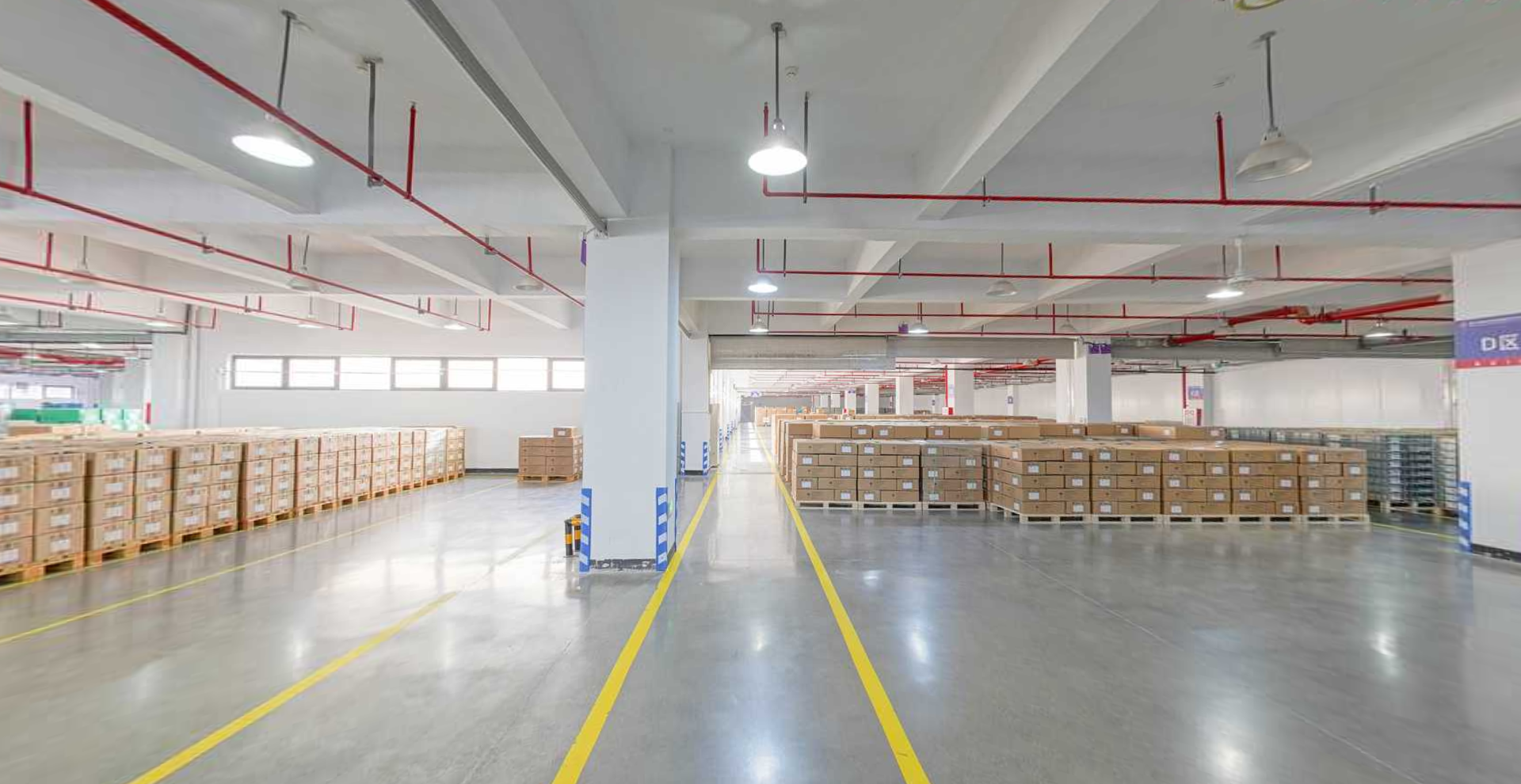

warehouse
warehouse
office
office
factory
factory

الشهادات والجوائز

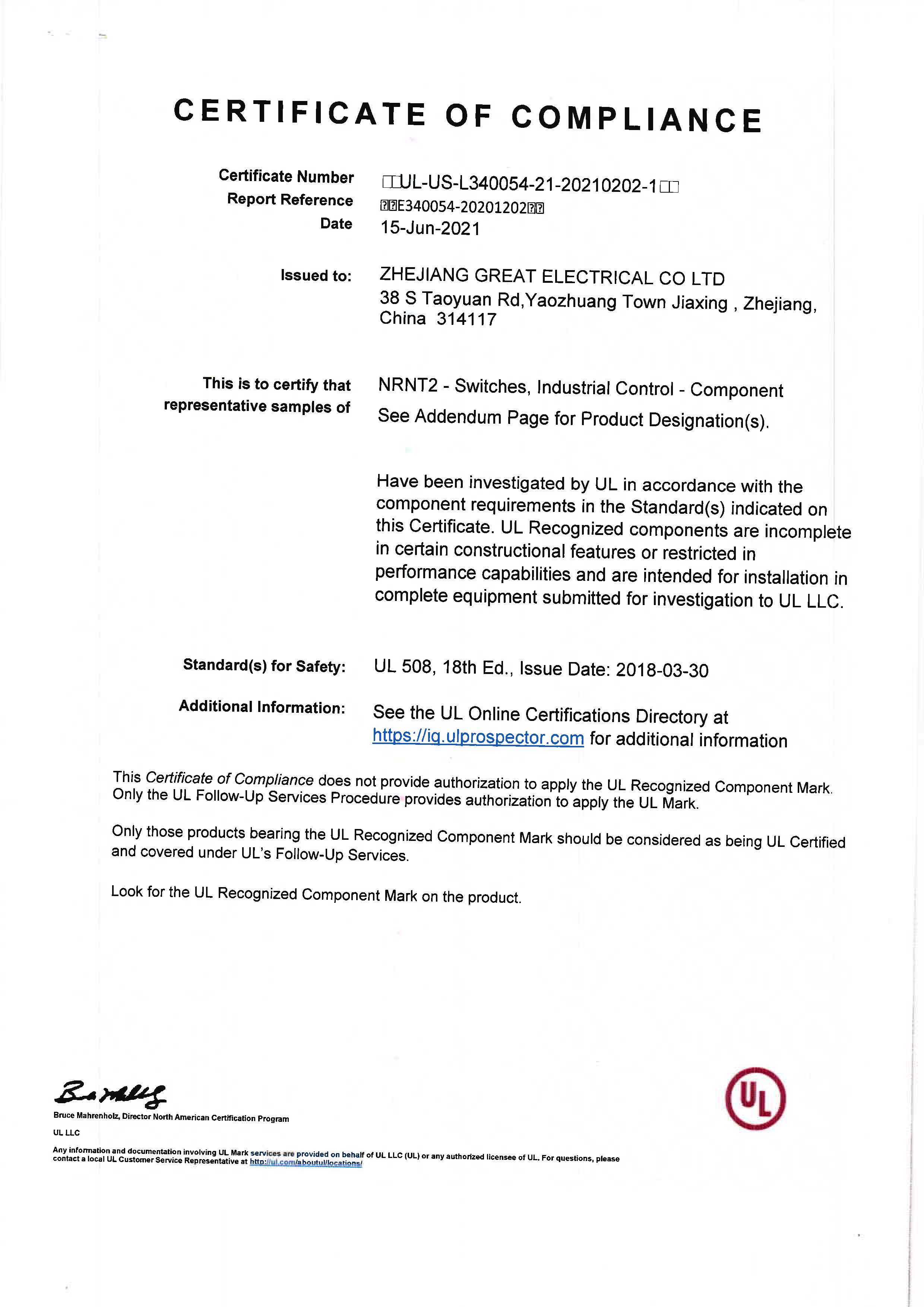

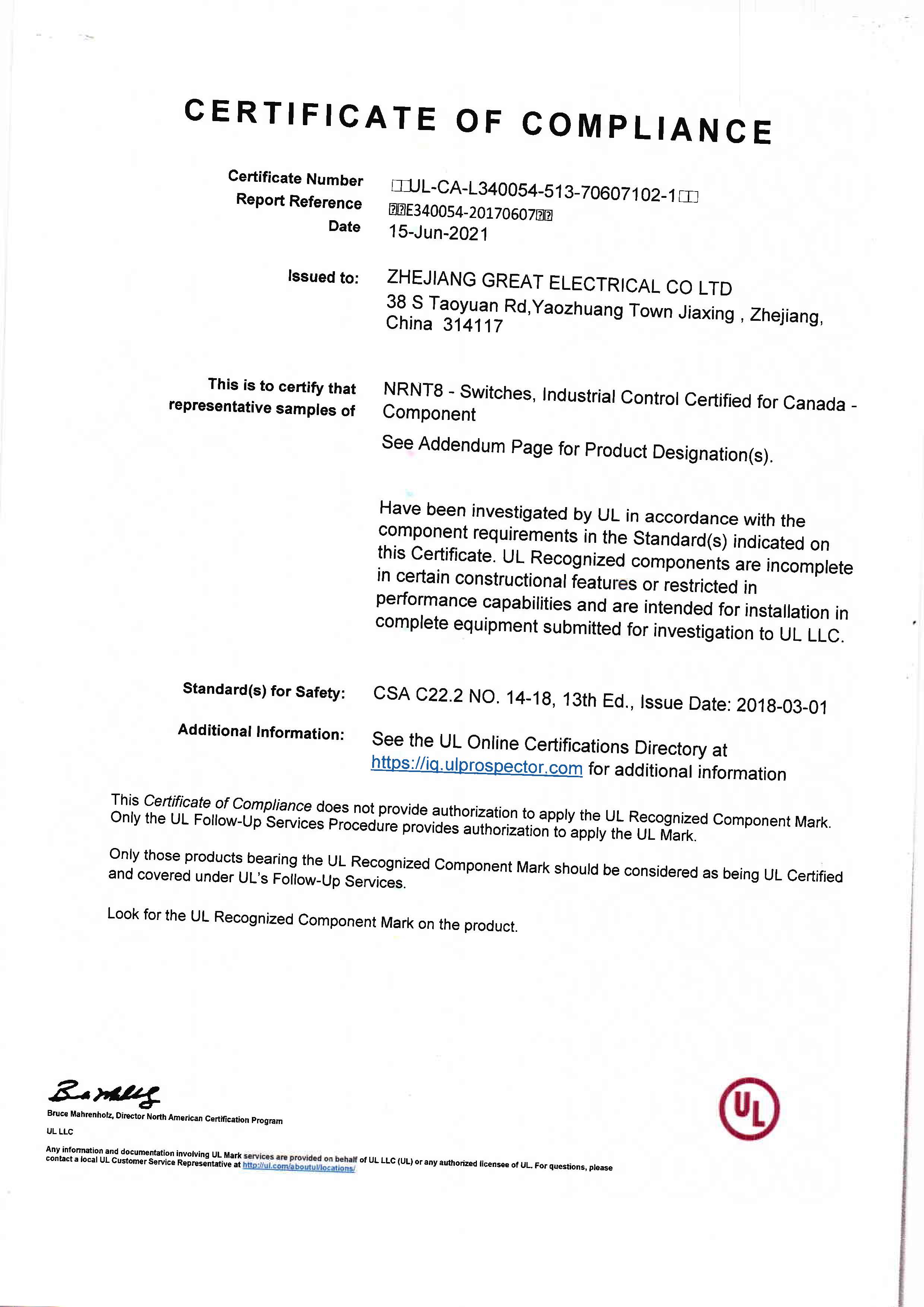

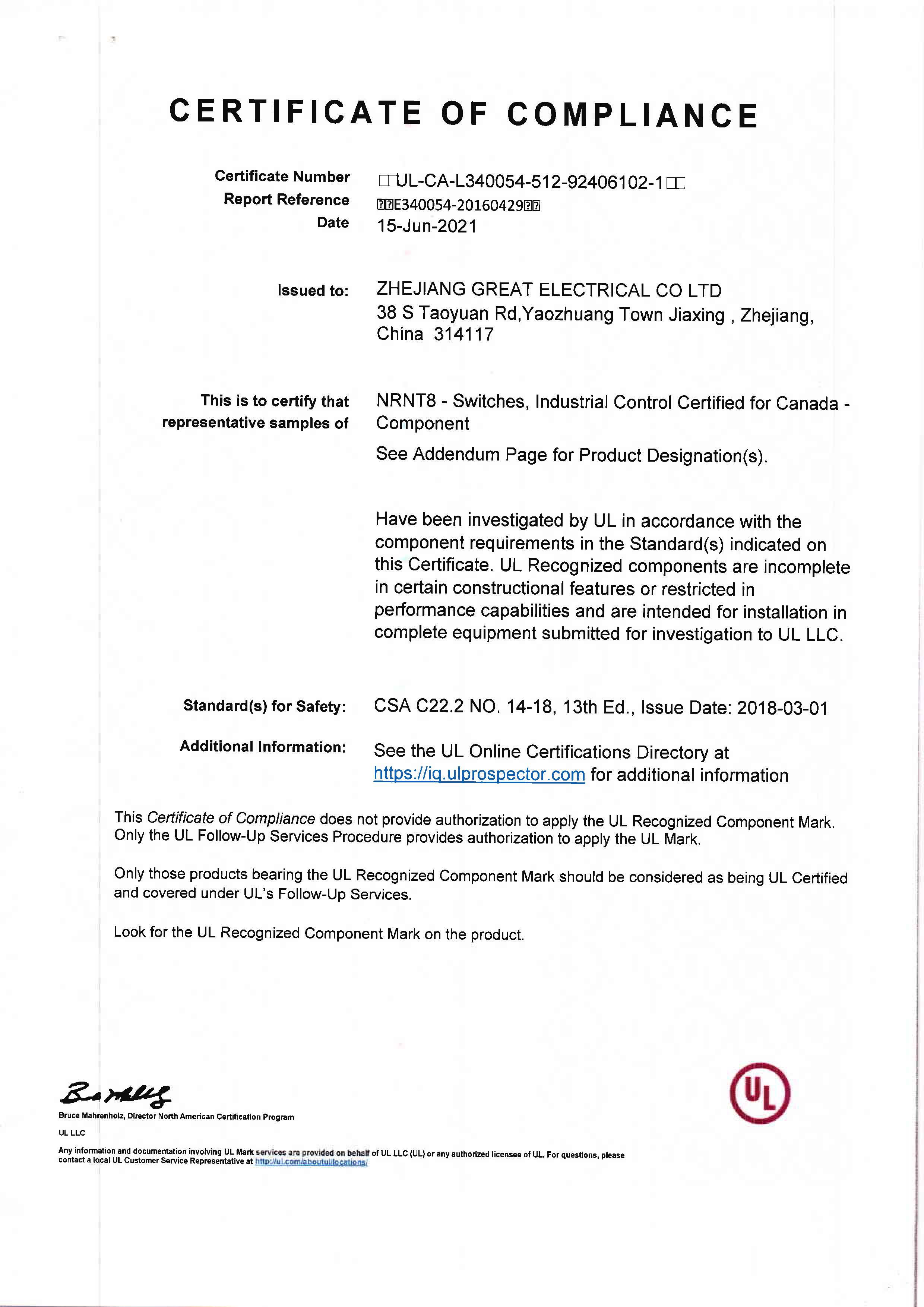

UL
UL

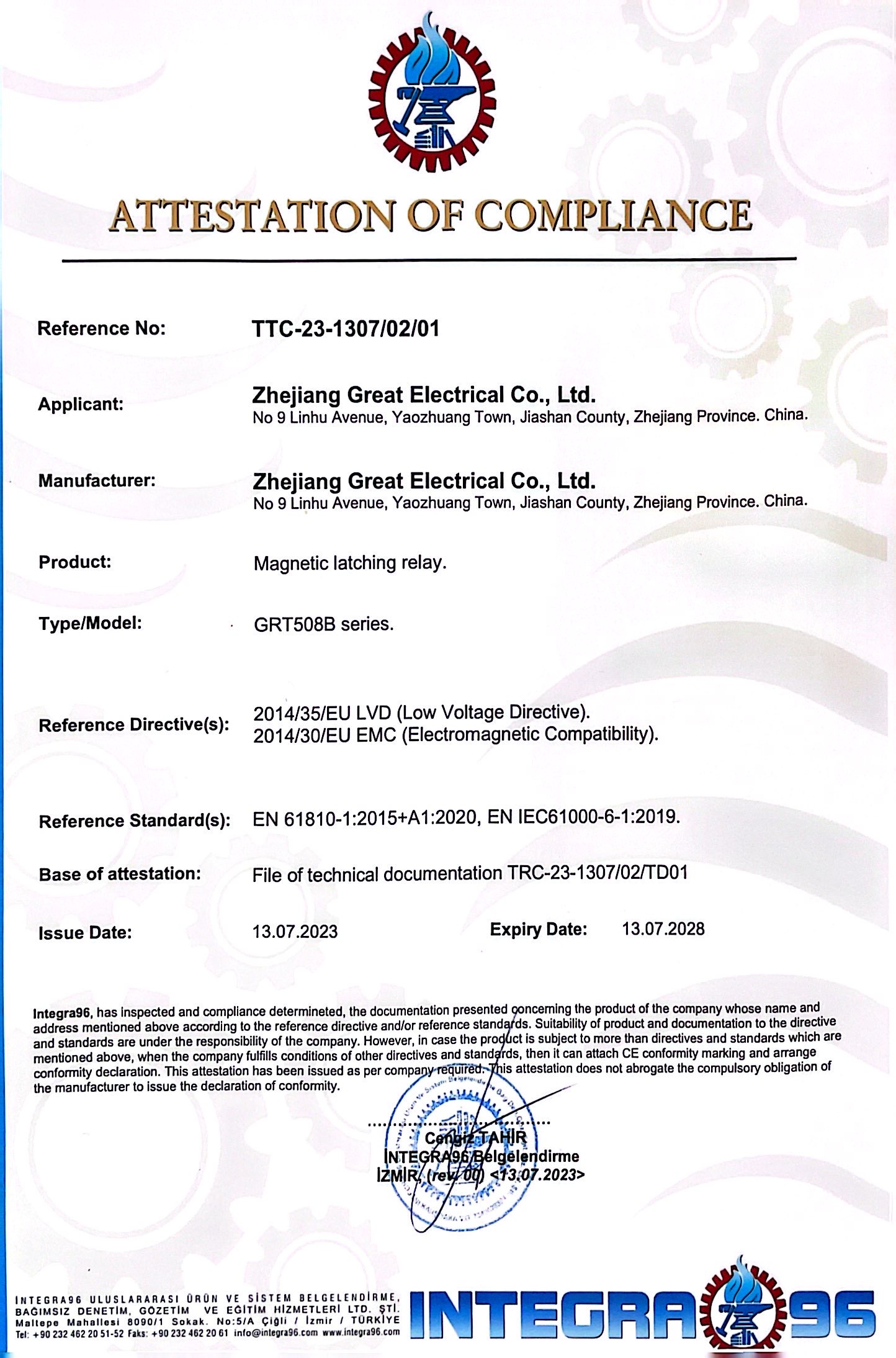

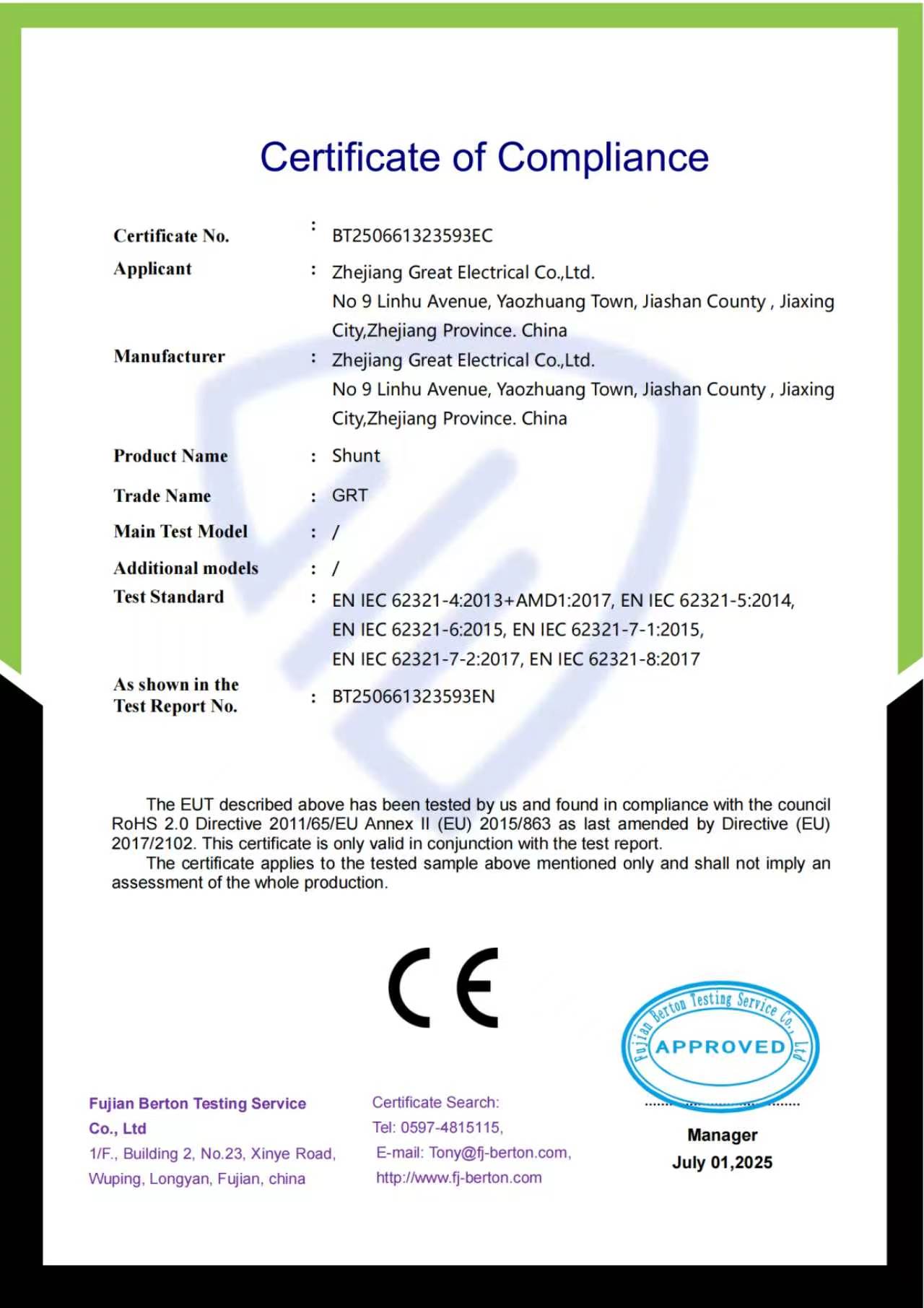

CE
CE

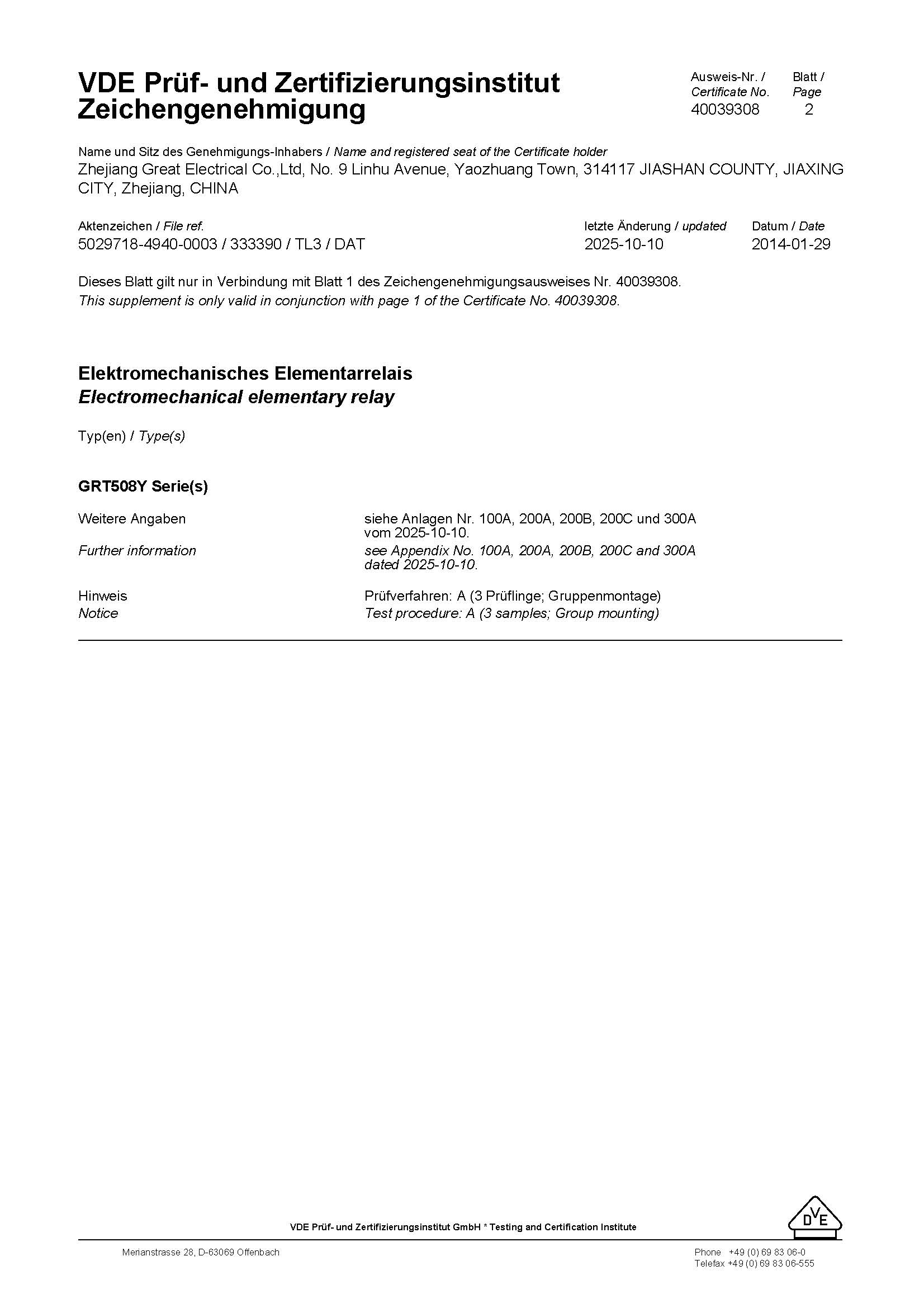

VDE
VDE

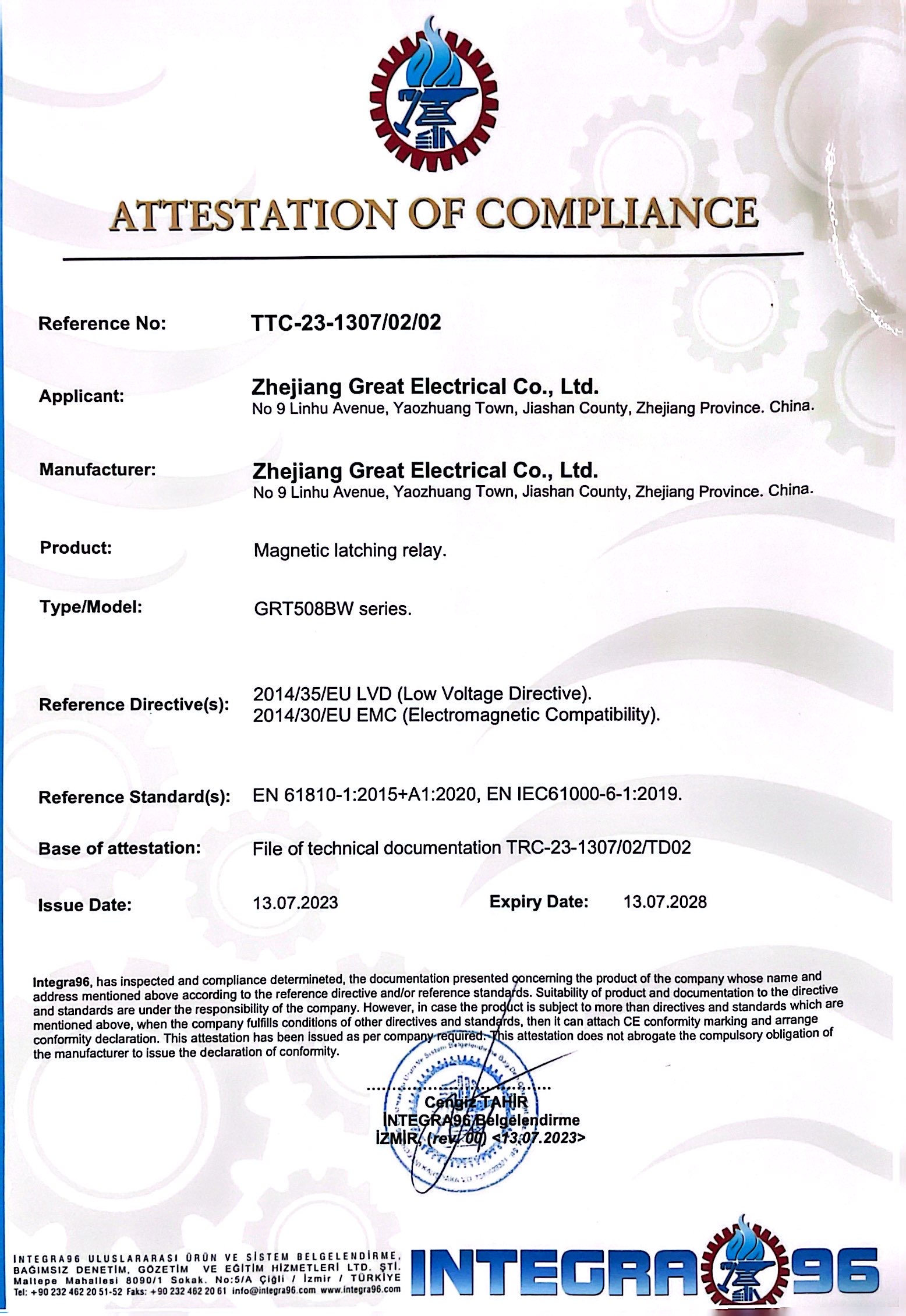

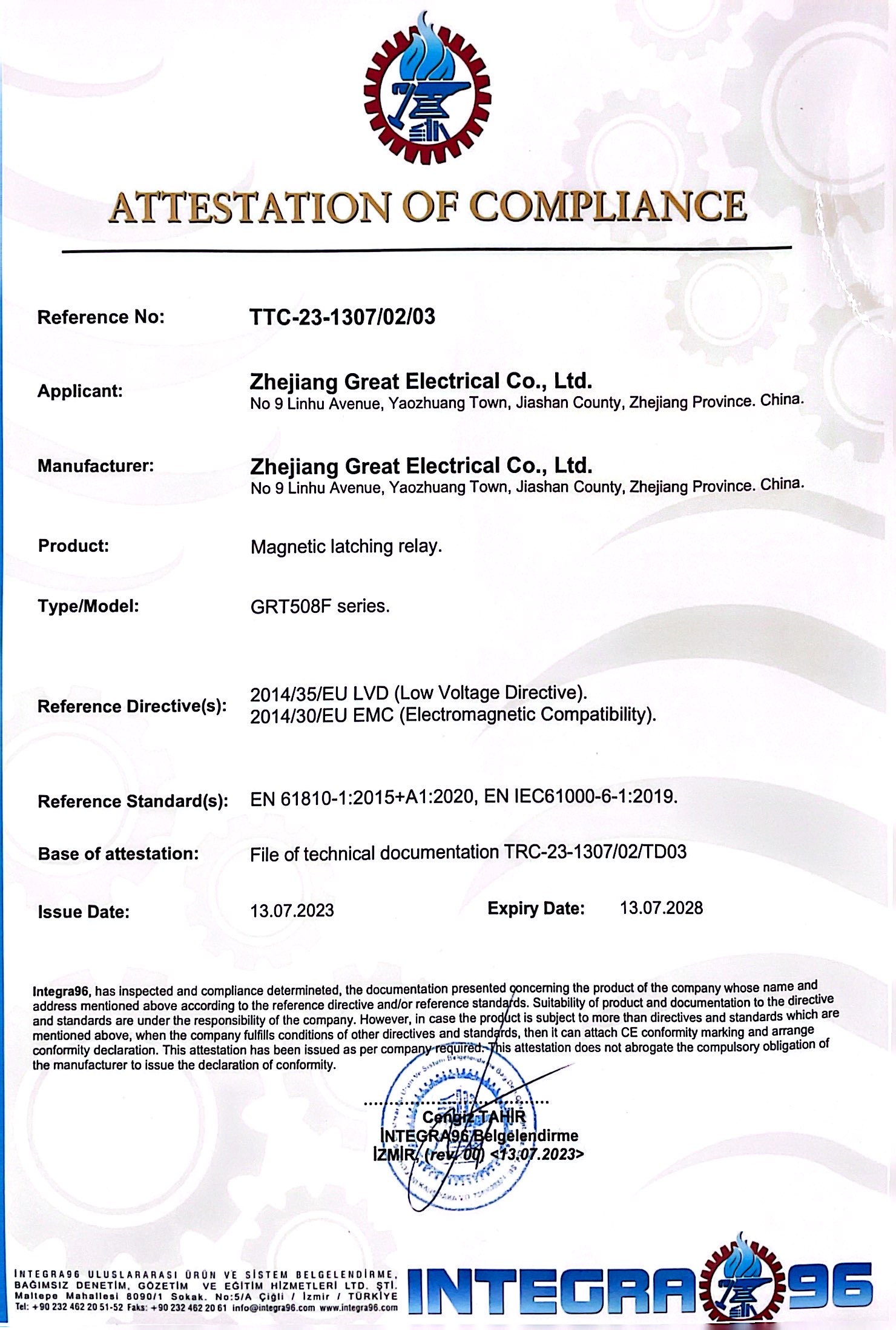

CE
CE

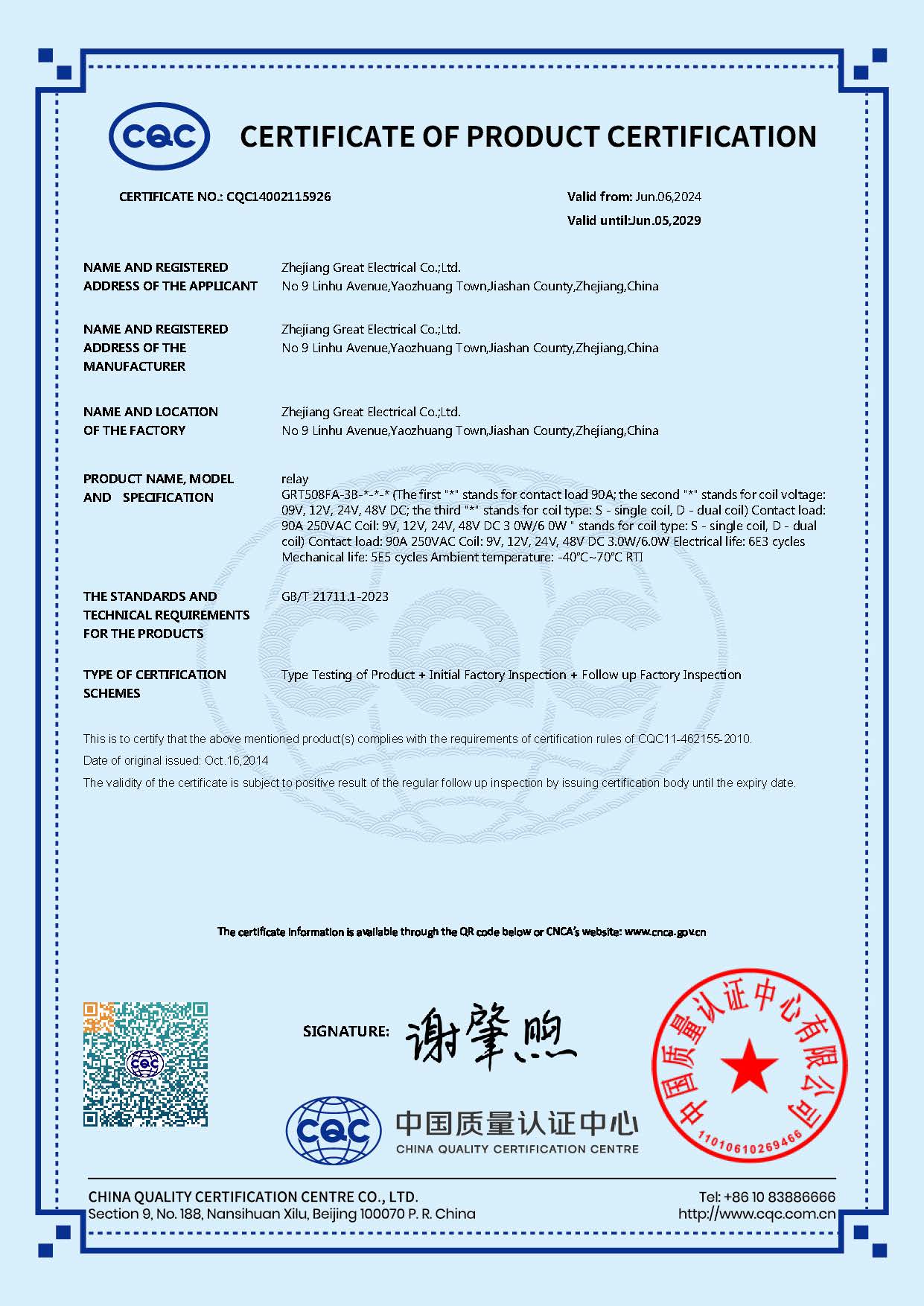

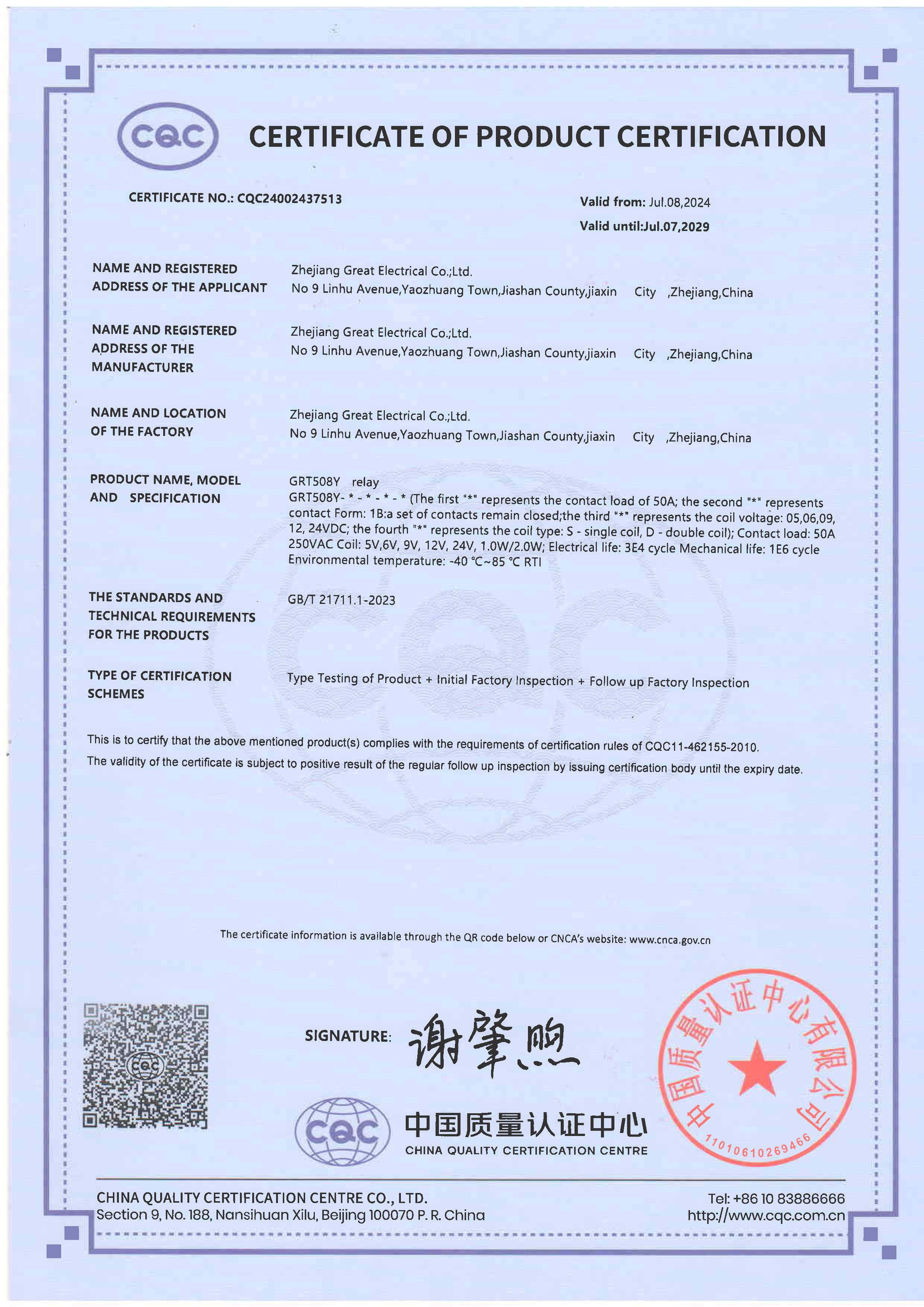

CQC
CQC
CQC
CQC

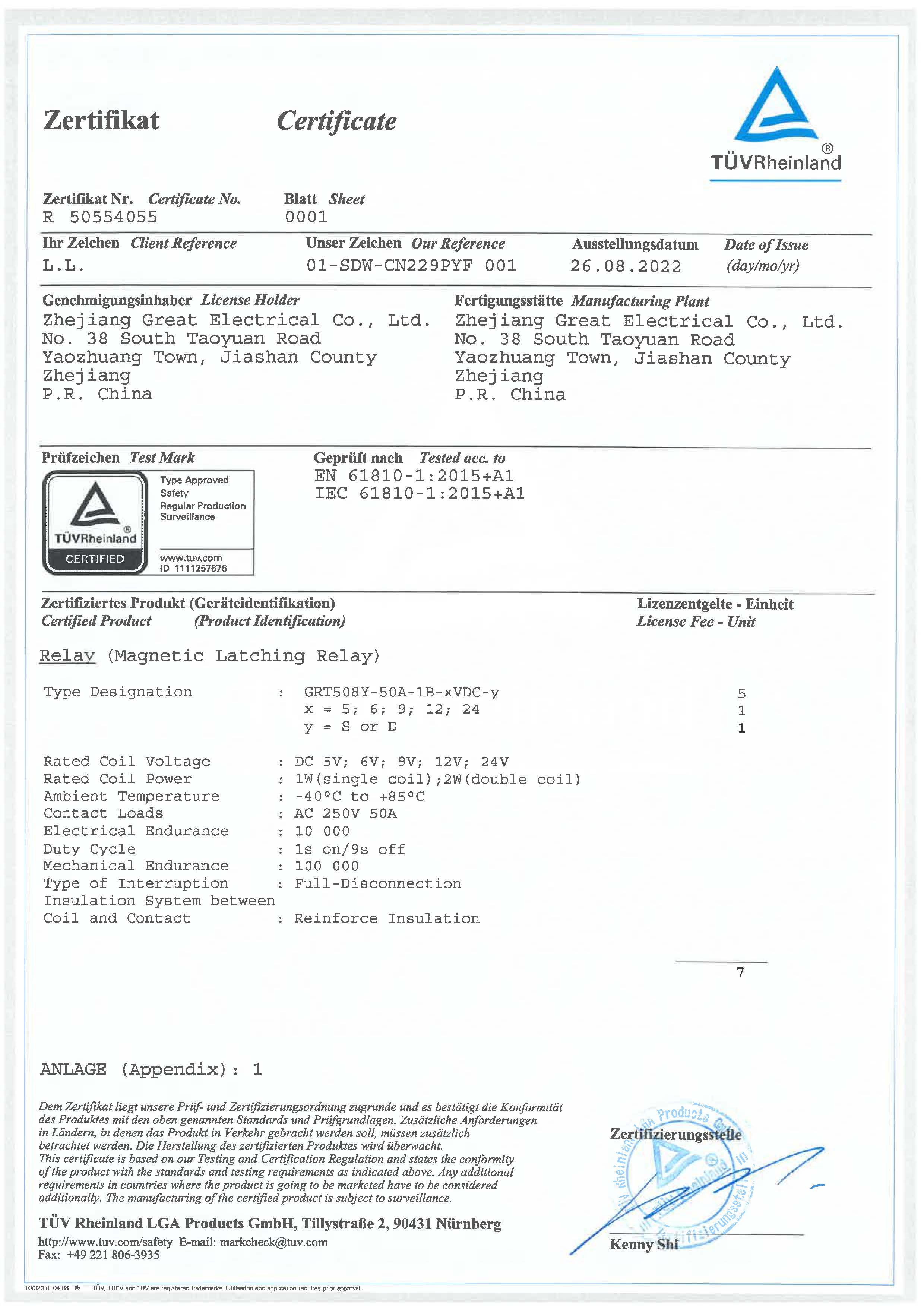

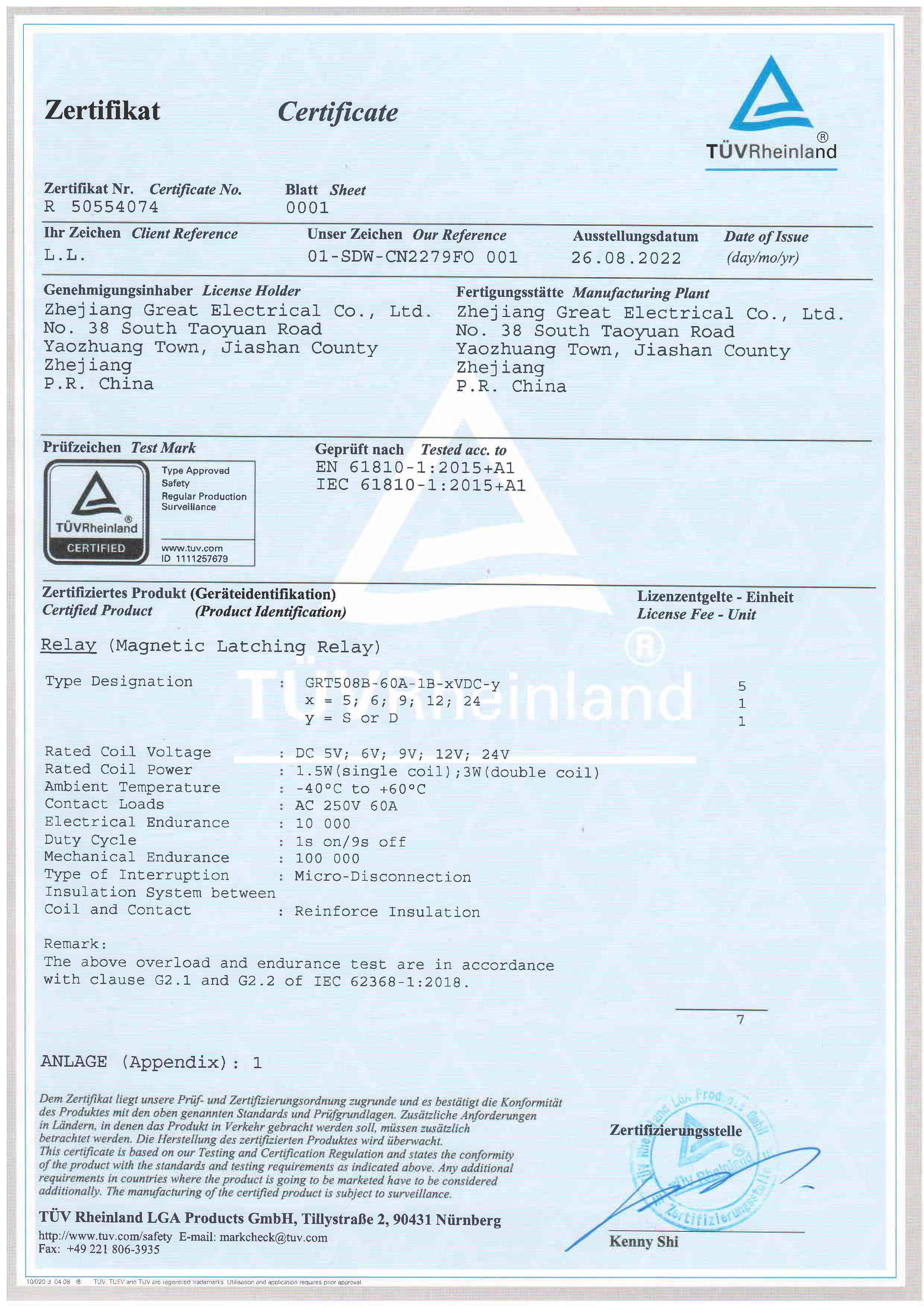

TUV
TUV
UL
UL

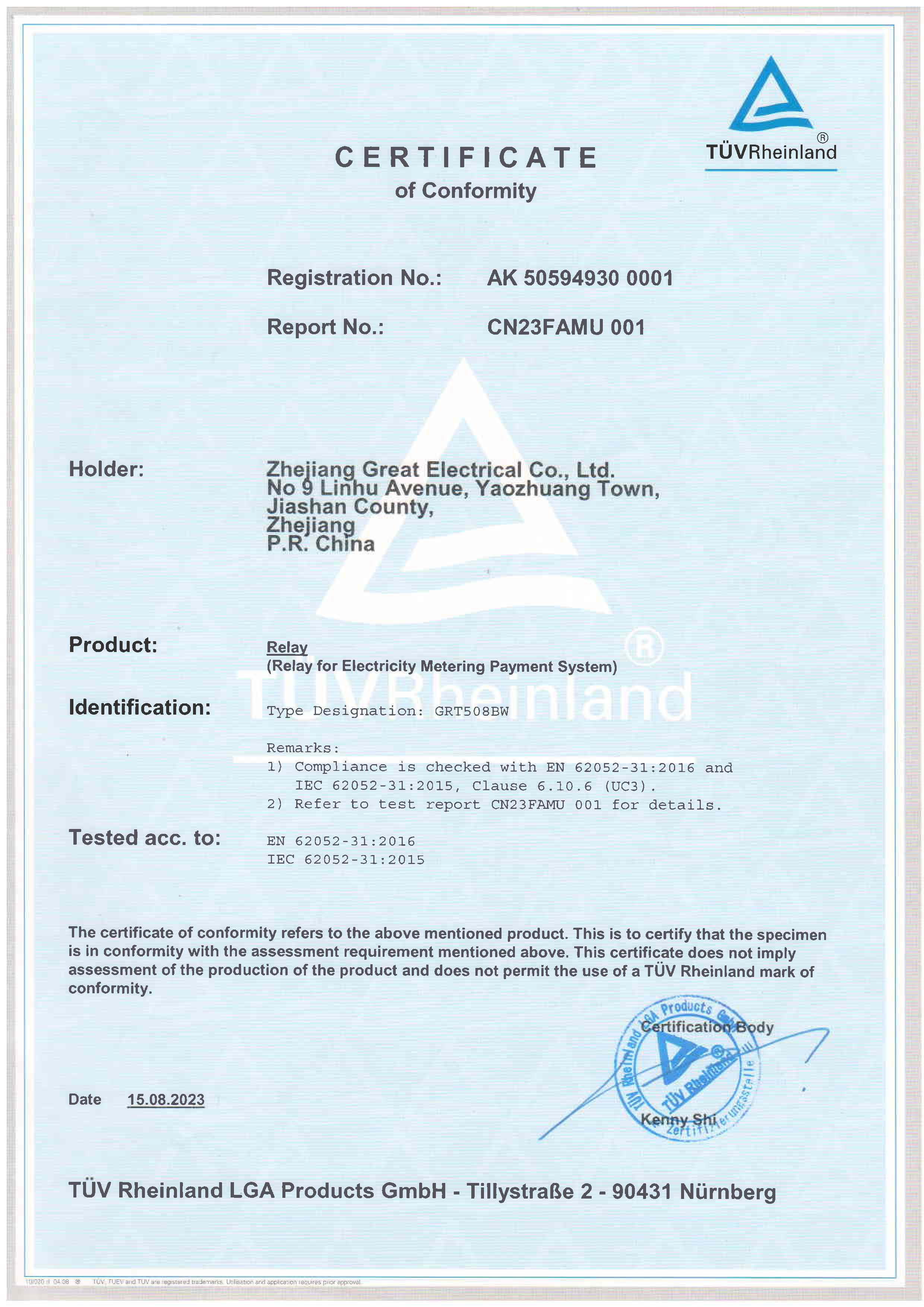

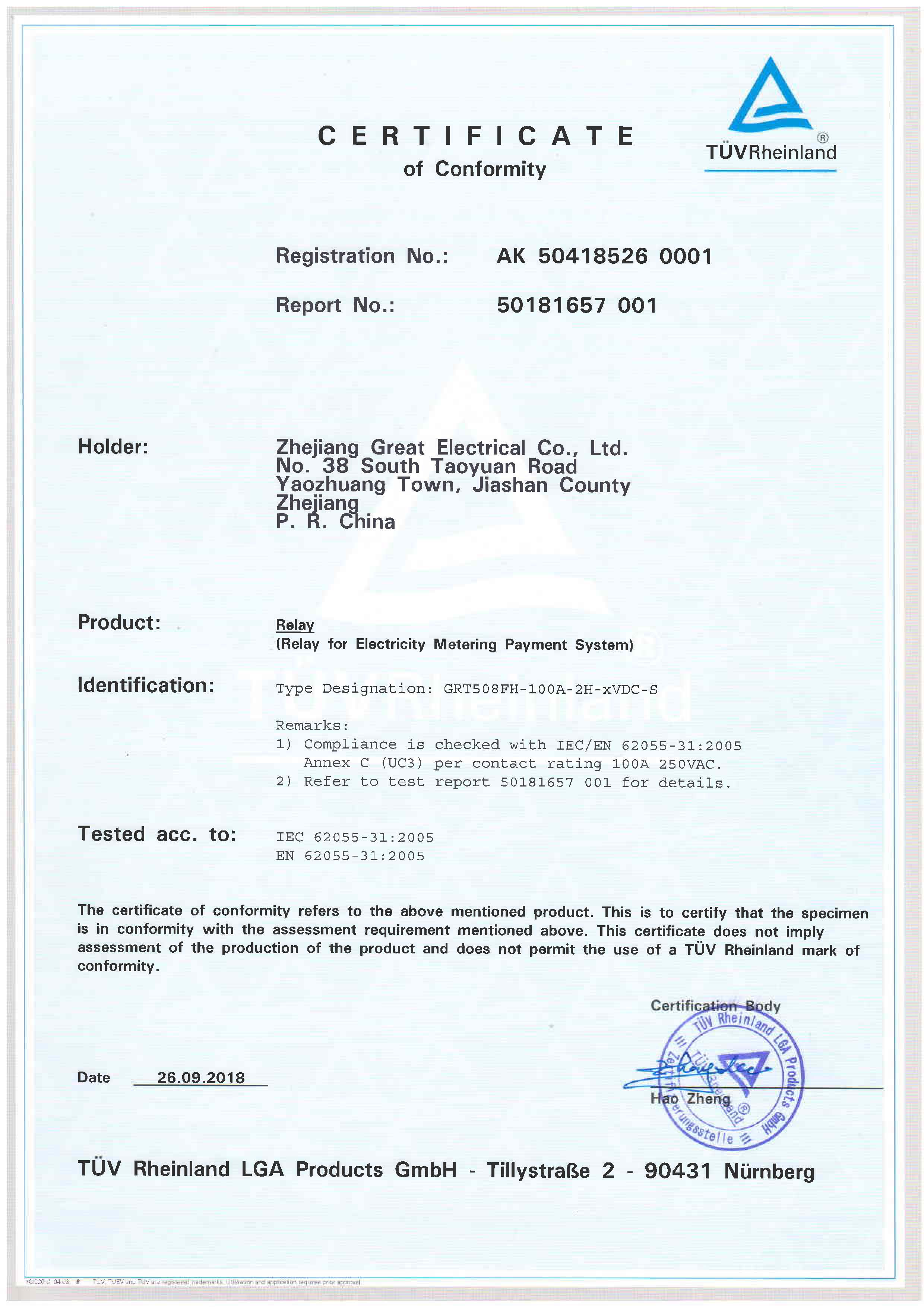

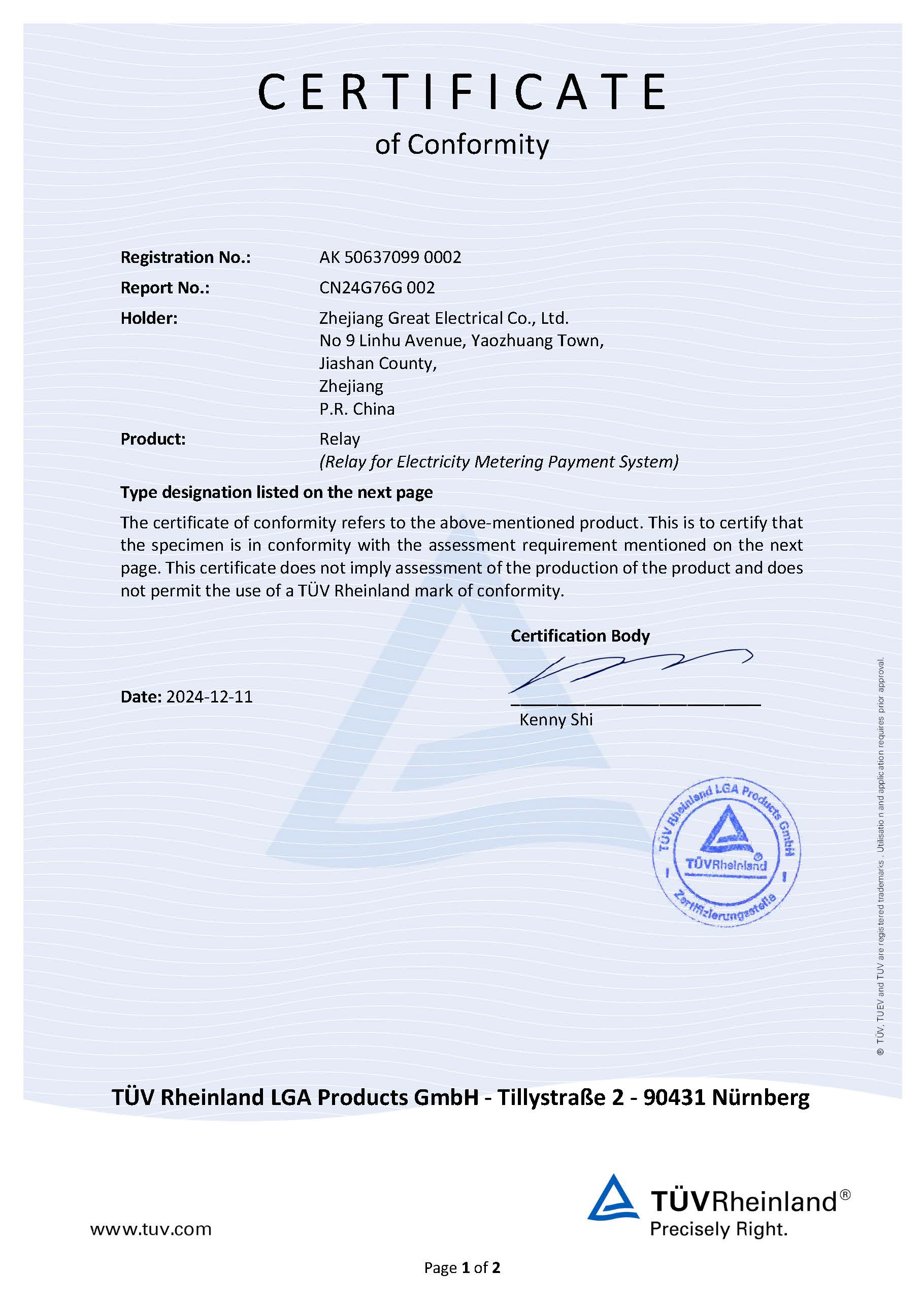

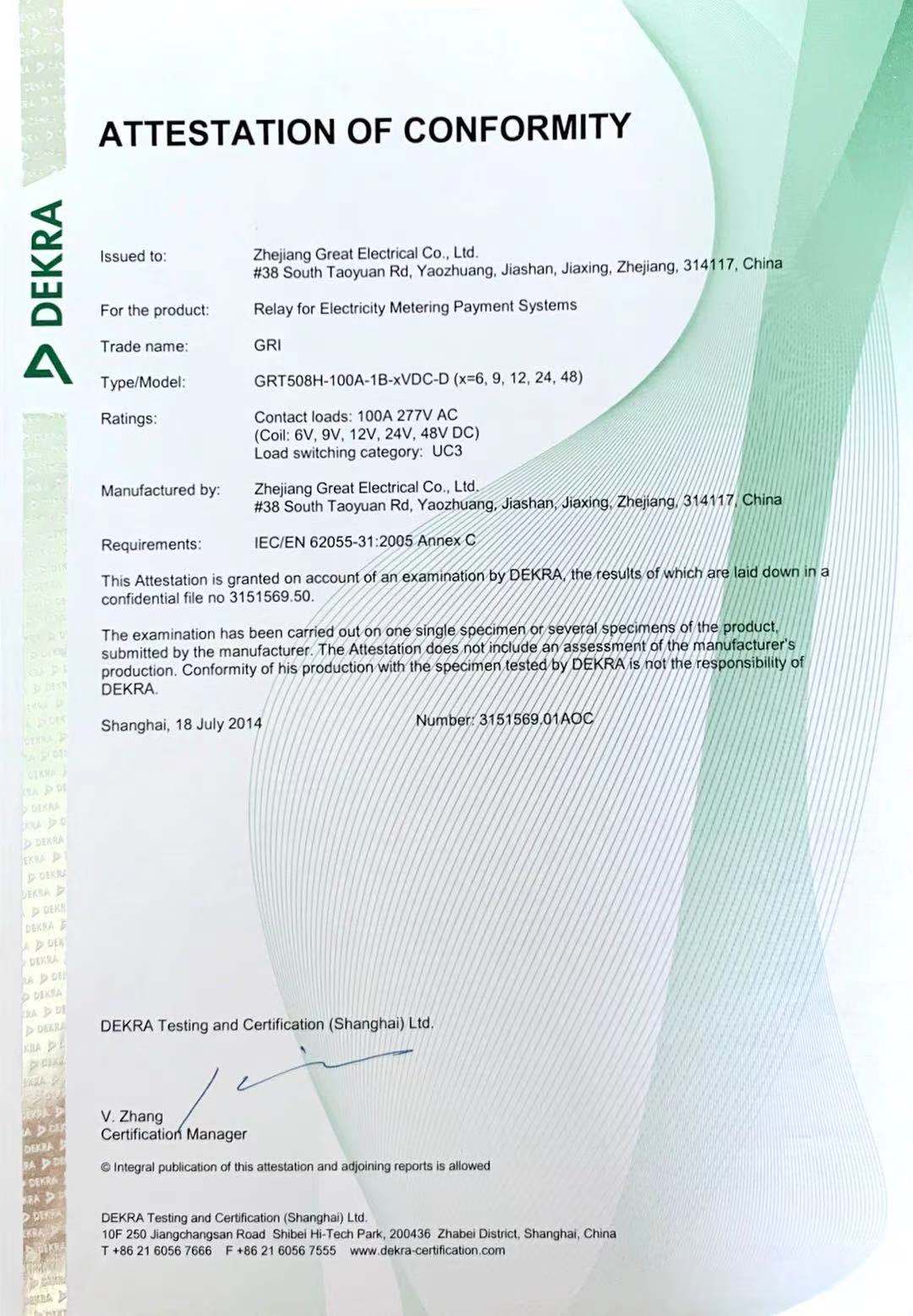

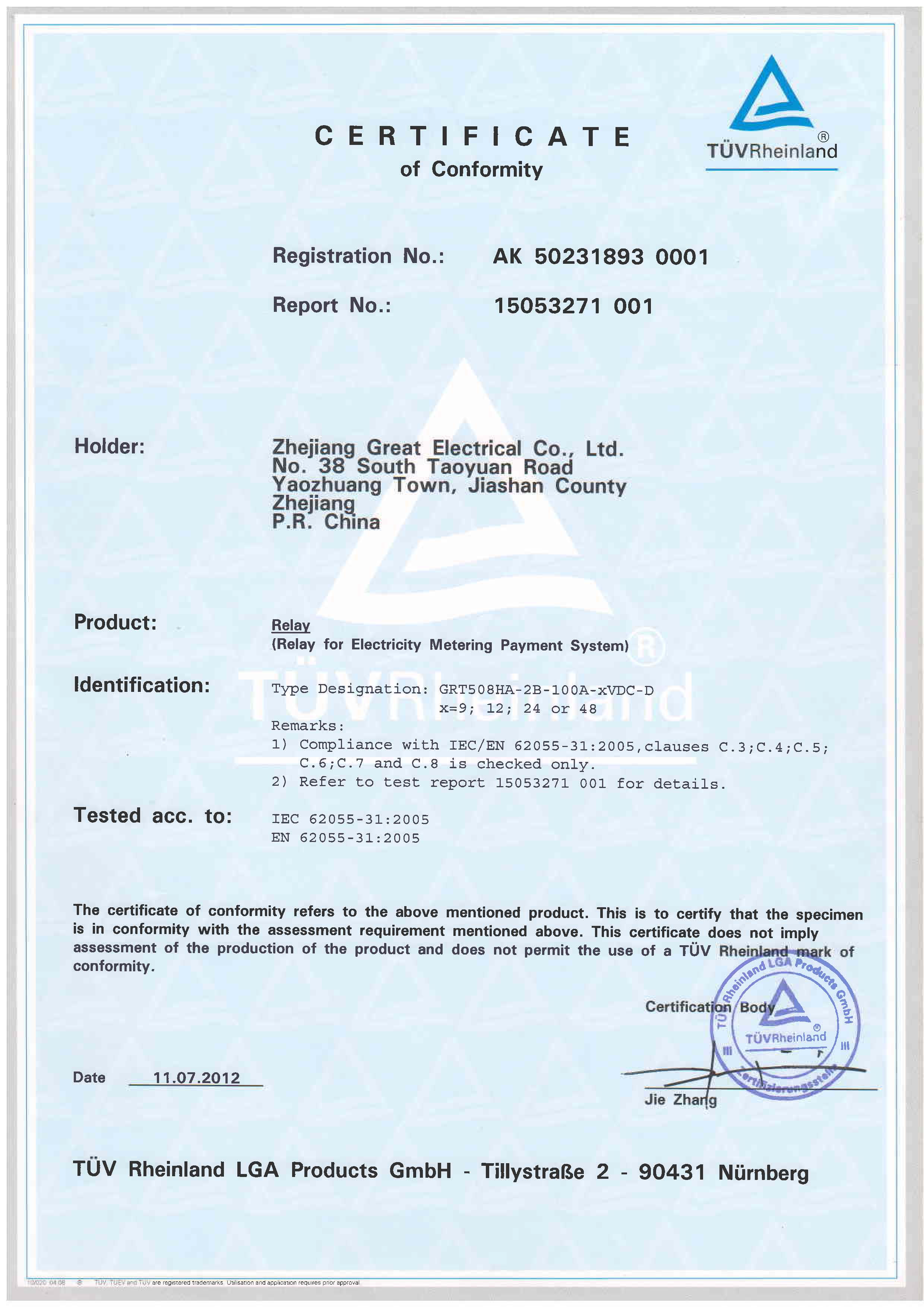

UC3
UC3

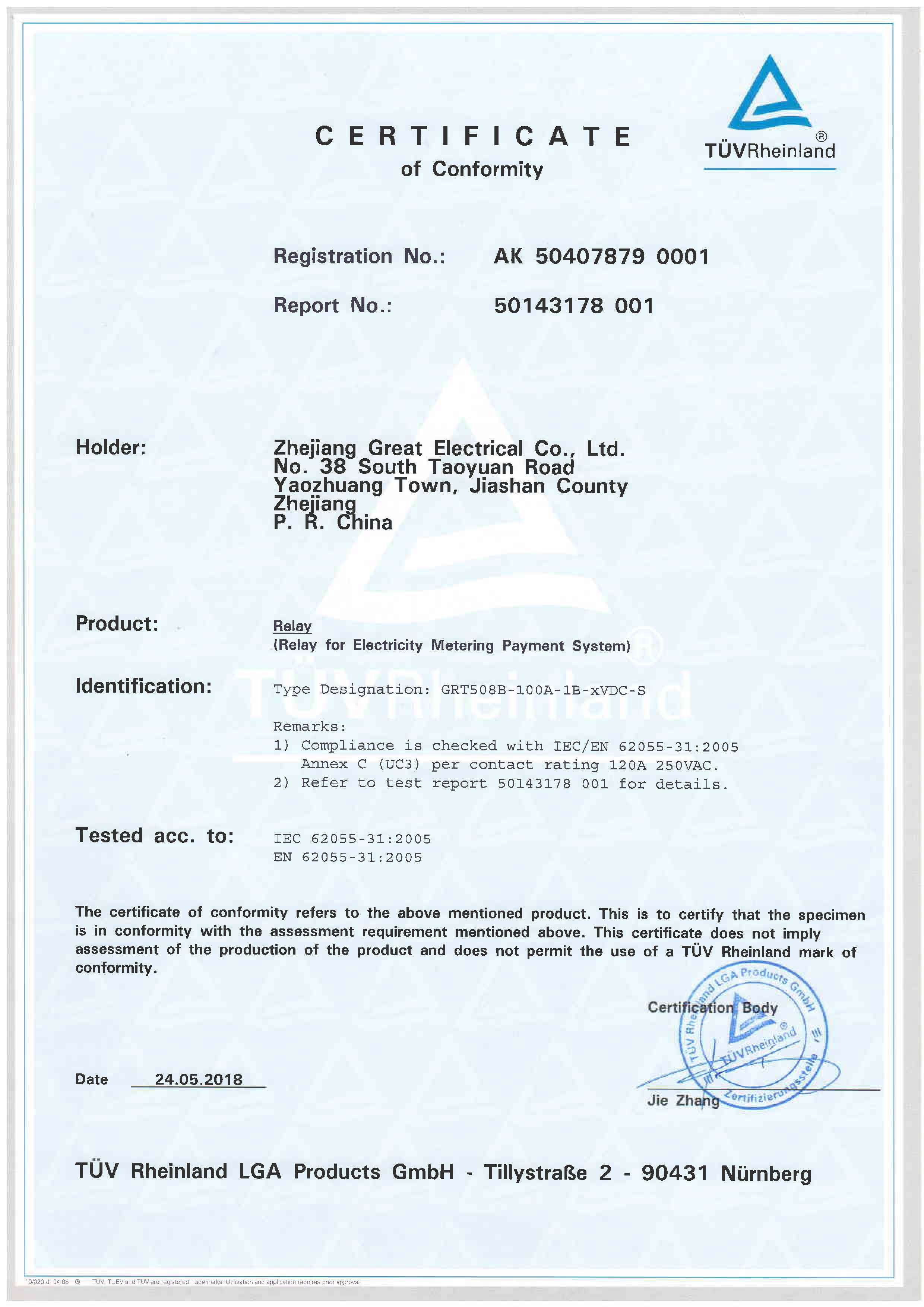

UC3
UC3

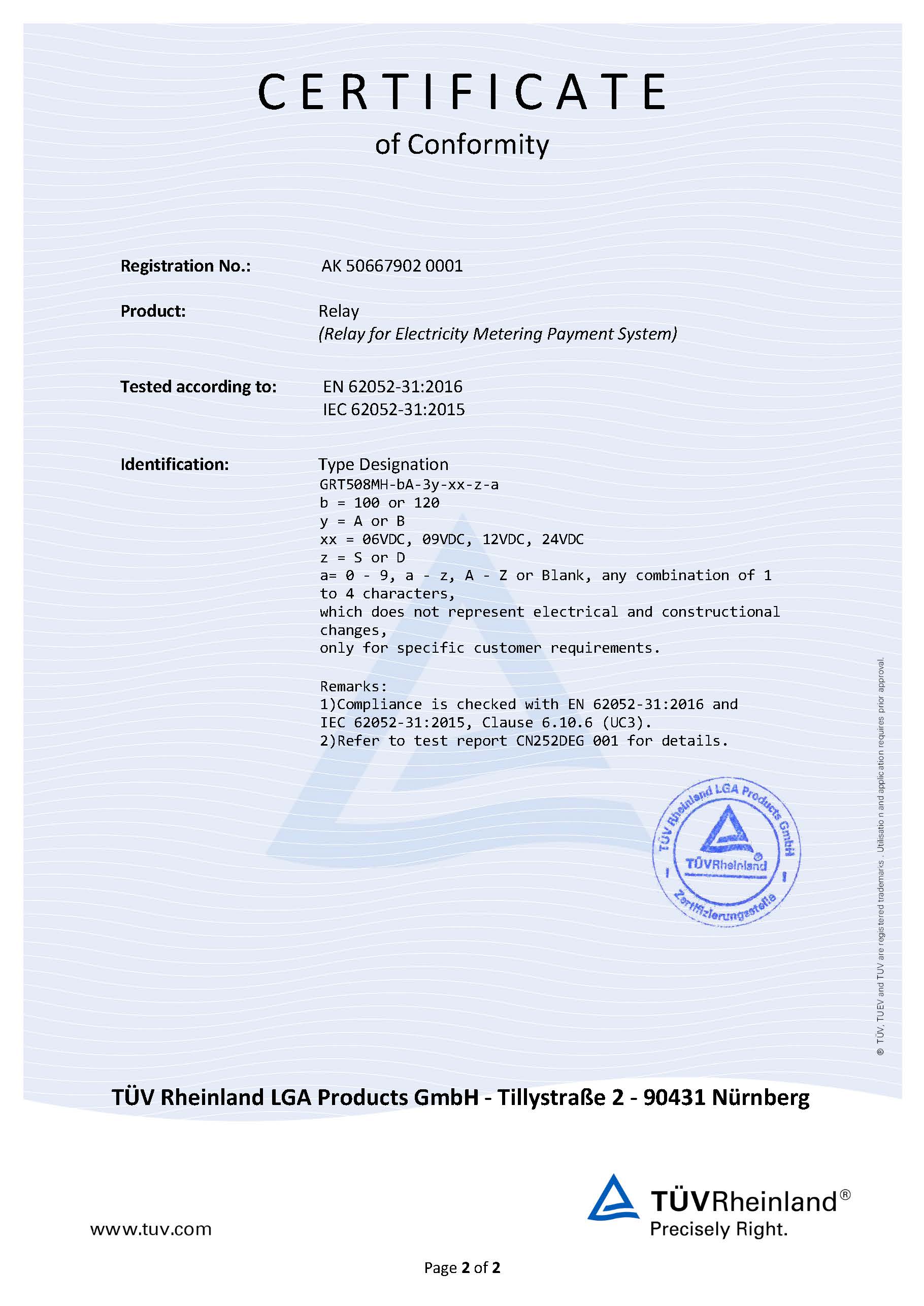

UC3
UC3
UC3
UC3
UC3
UC3

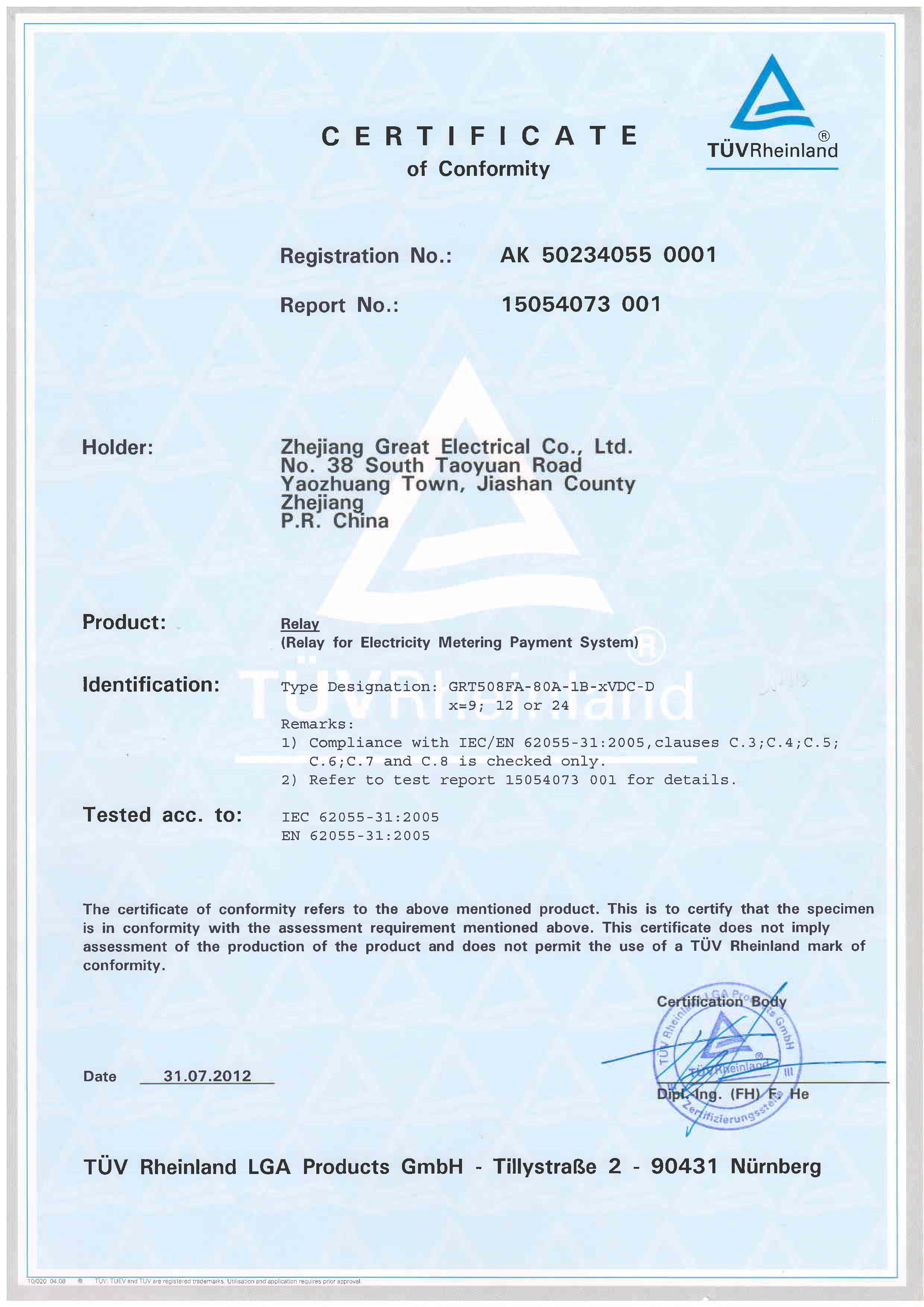

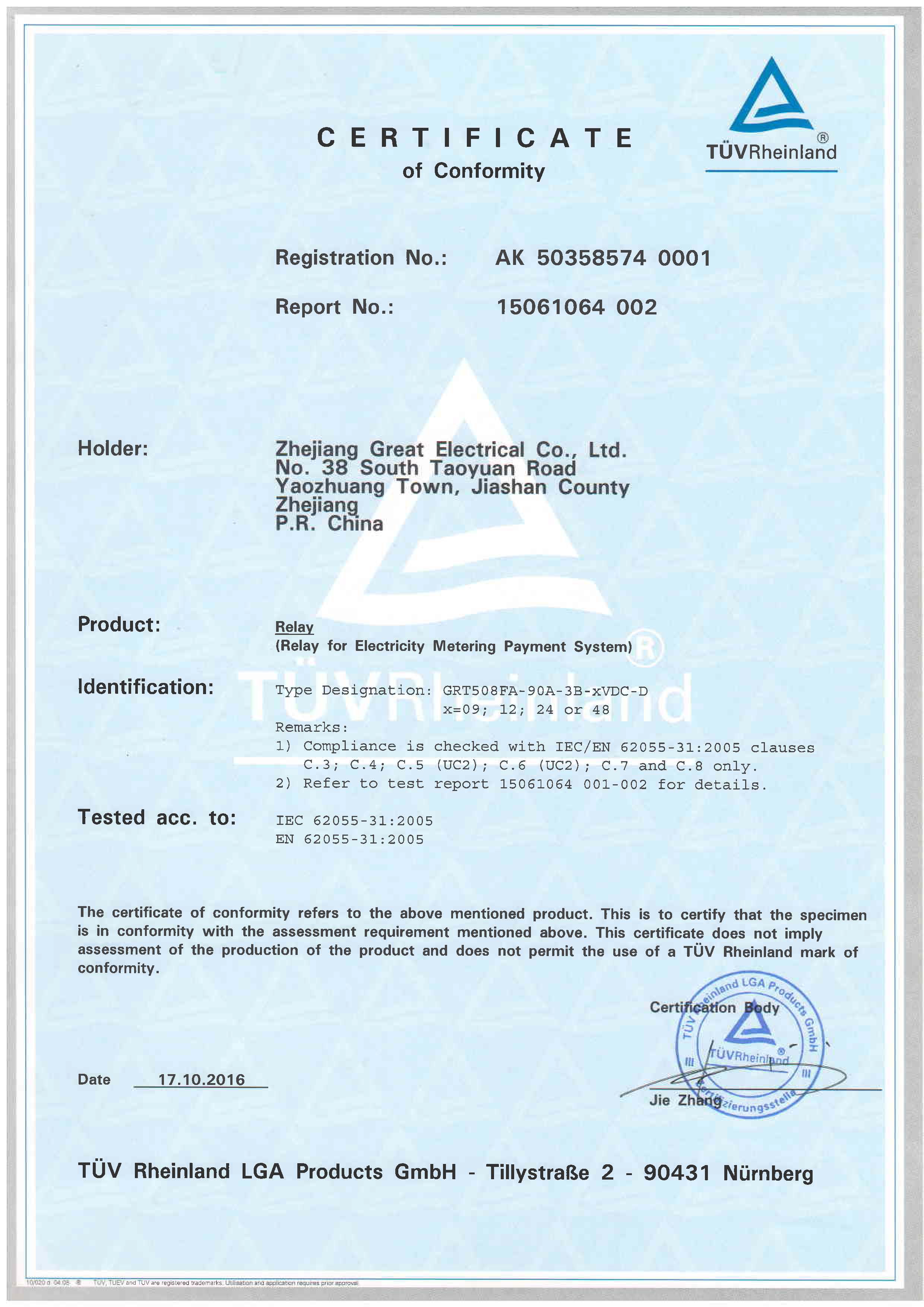

UC2
UC2
UC2
UC2

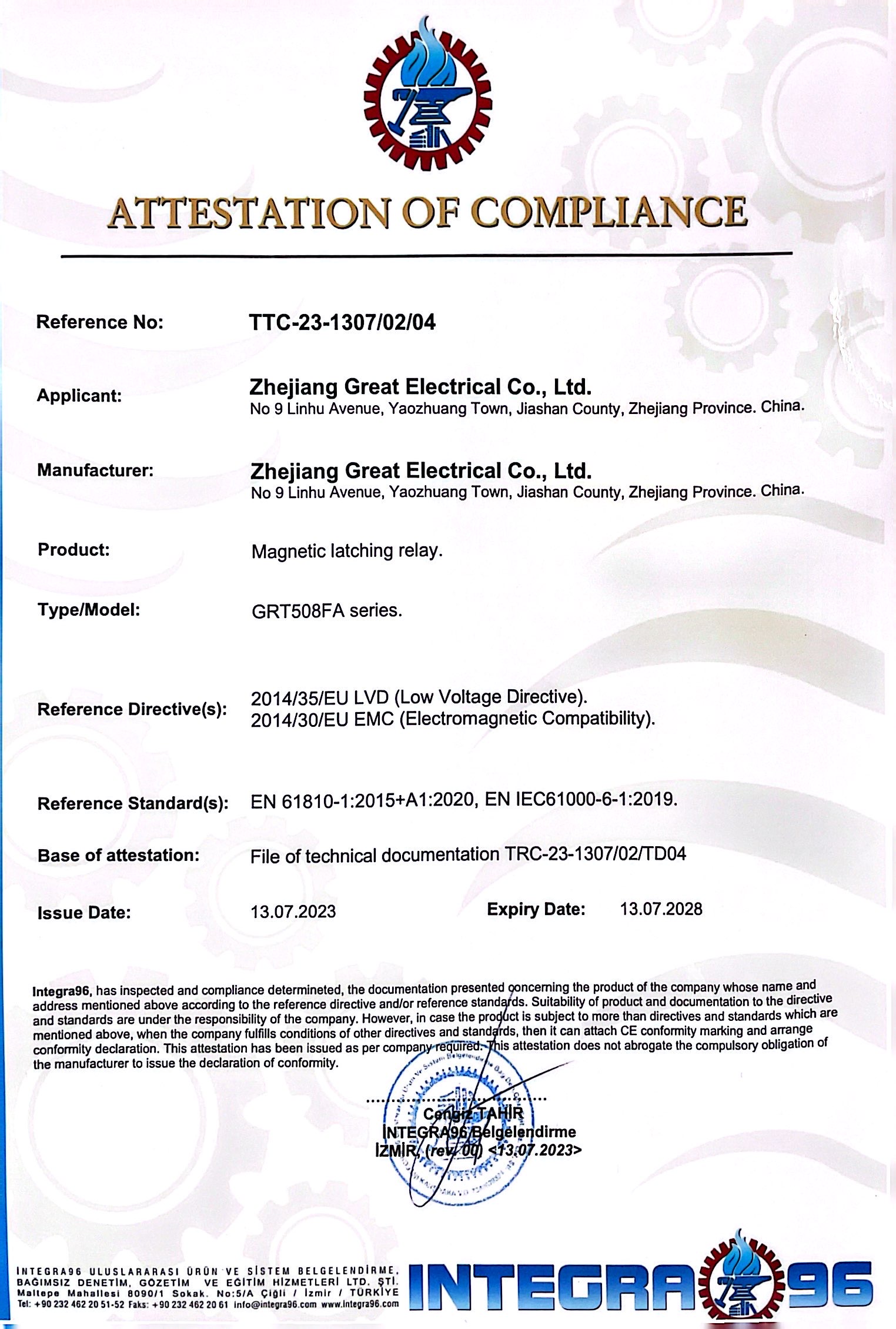

CE
CE
UC3
UC3
CE
CE
CE
CE
UC3
UC3
UL
UL
UC2
UC2
UC3
UC3
TUV
TUV

قصص النجاح

ODM

ODM

stable operation
Ultra-low coil power consumption, consistent contact performance, long service life

الموقع: KR 📦 Quantity: 50000 pcs
Customized ODM

Customized ODM

stable operation
Ultra-low coil power consumption, consistent contact performance, long service life

الموقع: KR,DK,DE,CN,ES,FI,GB,GR,IN,ZA,BR 📦 Quantity: 5,000,000 units

مقاطع فيديو الشركة والمنتجات

▶

مقدمة عن الشركة وجولة في المصنع

⏱ Duration: 3:45 | 👁 Views: 15,230

▶

عرض المنتج - Kestrel K-1

⏱ Duration: 5:12 | 👁 Views: 28,450

▶

عرض الابتكار التقني

⏱ Duration: 4:30 | 👁 Views: 12,890

▶

شهادات العملاء وقصص النجاح

⏱ Duration: 6:20 | 👁 Views: 9,650

تواصل معنا اليوم

اتصل بنا الآن لتعرف كيف تلبي منتجاتنا احتياجاتك.
