Packaging line
الموديل: SCZN
المعلمات: Product Features of Automatic Packaging Assembly Line:
Shuangcheng Intelligent's automatic packaging assembly line centers on technological innovation, with product features covering automation, efficiency, energy conservation, environmental protection, and more. It is widely used in e-commerce warehousing, food and beverage, pharmaceuticals and personal care products, 3C electronics, hardware toys, and other fields.
1. High Automation and Intelligence
The fully automated operation process covers carton forming, loading, sealing, strapping, shrink wrapping, labeling, vacuum packaging, palletizing, and stretch wrapping—all completed seamlessly to minimize manual intervention. The intelligent control system (PLC and sensors) along with a touch screen human-machine interface allows for precise parameter setting and automation of processes, ensuring stability and continuity in packaging.
2. Efficiency and High-Speed Performance
Significant improvements in packaging speed, such as I-beam carton sealers handling 480-600 cartons per hour and servo-driven shrink wrappers reaching 40-60 pieces per minute, greatly enhance production line efficiency.
3. Energy Saving and Environmental Protection Design
Optimization of the intelligent control systems and transmission structures reduces energy consumption by about 15%, adhering to low-carbon and energy-saving concepts. Efficient servo control technologies also help reduce resource wastage.
4. Multi-functionality and Strong Adaptability
Support for various packaging forms (such as case erecting, filling, sealing, strapping, vacuum, shrink wrapping), material irregular packages; customized solutions tailored to meet the needs of industries like electronics, food, pharmaceuticals, etc.
5. Easy Operation and Safety Reliability
User-friendly touch screen interfaces simplify operations, with automatic alarms and shutdown in abnormal states (such as tape depletion, film shortage). Equipped with safety glass shields and blade protective devices to eliminate operational risks.
6. Highlights of Shuangcheng Intelligent
● Integrates high-precision industrial control, modular design, and industry customization capabilities, empowering over 20 industries including food, electronics, logistics, etc., with efficient automation upgrades.
● Uses imported components and electrical elements, ensuring structural precision and robustness, smooth operation, stable performance, and long service life.
● Employs high-precision servo control systems and adaptive correction technology to ensure flat packaging without wrinkles, firm sealing without leakage.
● Industrial-grade durability with thickened steel bodies, key parts undergo tens of thousands of aging tests, resulting in a failure rate below industry average.
● Multiple equipment of Shuangcheng Intelligent packaging lines work together to achieve fully unmanned operations from "case erecting - filling - sealing - packing - labeling - palletizing - stretch wrapping", completing a full-loop intelligent packaging solution.

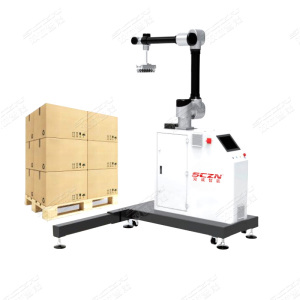

Palletizer
الموديل: XZ-30
المعلمات: Product Model: XZ-30 Collaborative Palletizing Robot
Designed Arm Reach: 1480mm / 1680mm / 1880mm
Palletizing Speed: 8-12 cycles/minute (depending on product)
Pallet Dimensions: L1200mm x W1200mm x H150mm
Palletizing Weight: Max. 30kg (including suction tools)
Palletizing Height: Max. stacking height 2550mm, column lift 600mm
Power Supply: 3.5KW, 220V±10%, 50Hz±5%
Overall Dimensions: L1230mm x W1730mm x H2471mm
Bagging machine
الموديل: SCT
المعلمات: Product Name: Fully Automatic Bagging Machine
Packing Dimensions: L50-200 x W50-150 x H15-50mm
Sealing & Cutting Dimensions: Single cut 300mm / Double cut 200mm
Packing Speed: 600-900 pieces/hour (varies)
Machine Dimensions: L1700 x W1400 x H1700mm

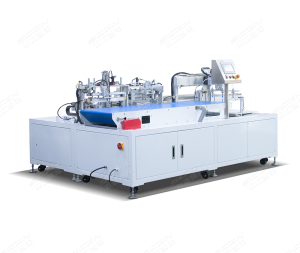

Fully Automatic Vacuum Packaging Machine
الموديل: DZQ
المعلمات: Product Name: Automatic Bagging & Vacuum Packaging Machine (Customized Model)
Packaging Dimensions: Adjustable according to the actual product
Applicable Bags: Vacuum bags, PE bags, Aluminum foil bags, etc.
Product Application: This machine automatically performs bagging, vacuum extraction, and sealing for various products. With a high degree of automation, it effectively protects the packaged products from dust, moisture, and corrosion, thereby extending their shelf life.

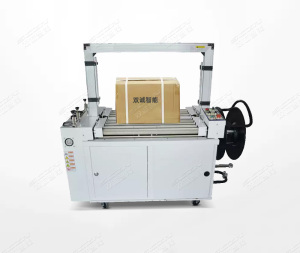

Strapping machine
الموديل: SCD-101B
المعلمات: Strapping speed: ≤2.5 seconds/course
Frame opening dimensions: W800 x H600mm (Customizable)
Table height: 450mm (Customizable)
Power supply: 380V / 60Hz
Strapping tension: 0-60kg (Adjustable)
Strapping material specs: Thickness (0.55~1.2) x Width (9~15)mm
Overall dimensions: L1900 x W620 x H1850mm
Strapping method: 1 to multiple parallel courses; Operation modes include inching, manual, continuous strapping, push-button switch, and foot switch.
Strapping machine
الموديل: SCD-101A
المعلمات: Strapping speed: ≤2.5 seconds/course
Frame opening width: W800 x H600mm (customizable)
Working height: 750mm (customizable)
Power supply: 220/380V 0.75kw
Strapping tension: 0-60kg (adjustable)
Strapping material specifications: Thickness (0.55~1.2) x Width (9~15)mm
Overall dimensions: L1400 x W650 x H1450mm
Strapping methods: 1 to multiple parallel courses; operation modes include inching, manual, continuous strapping, push-button switch, and foot switch.

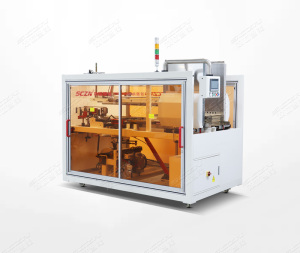

High-speed carton erector
الموديل: SCK-40H50
المعلمات: Case forming speed: 20-30 cases/minute
Applicable tape width: 48, 60, 75mm
Working air pressure: 6Kg/cm²
Power supply: 220/380V 1.5kw
Case forming dimensions: L280-500 x W160-400 x H130-400mm, L+W≤900mm, H+W 220-600mm
Overall dimensions: L2500 x W1450 x H1910mm
Carton erector
الموديل: SCK-40
المعلمات: Box forming speed: 8-10 boxes/minute
Applicable tape width: 48, 60, 75mm
Working pressure: 6Kg/cm²
Power supply: 220/380V 0.4kw
Box forming dimensions: L280-500 x W160-400 x H150-400mm
Overall dimensions: L2050 x W1950 x H1450mm
Case sealing and packing machine
الموديل: SCF-50CD
المعلمات: Conveyor speed: 20m/minute
Applicable tape width: 48, 60, 75mm
Power consumption: 0.9KW
Strapping material requirement: Thickness: 0.6~0.8mm x Width: 12-15mm
Power supply: 220/380V 50HZ
Working table height: H450-700mm (adjustable)
Minimum case size: L250 x W150 x H150mm
Maximum case size: L600 x W500 x H500mm
Case sealer
الموديل: SCF-50C+SCF-50G
المعلمات: Sealing speed: 480-600 boxes/hour
Applicable tape width: 48, 60, 75mm
Power consumption: 1.0KW
Working pressure: 5.0Kg/cm²
Power supply: 220/380V 50HZ
Minimum case size: L340 x W200 x H180mm
Maximum case size: L600 x W500 x H500mm

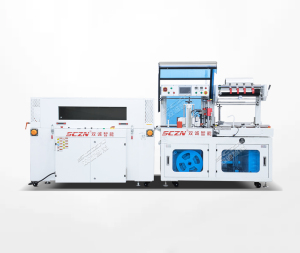

Shrink wrapping machine
الموديل: SCT-5545TBC
المعلمات: Power rating: 220V/50Hz ≤2.5KW
Working pressure: 5.5Kg/cm²
Table height: 800mm + 70mm
Sealing dimensions: W500mm
Packaging dimensions: L120mm - unlimited H30-380mm W+H≤450 H≤180mm
Packaging speed: 0-50 pcs/min (depending on the size of the product)
Machine dimensions: 175010501450 mm (subject to actual dimensions)

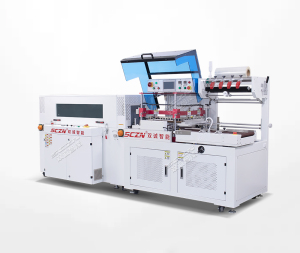

Shrink wrapping machine
الموديل: SCT-5545TBD
المعلمات: Power Supply: 220V/50Hz, ≤3.5KW
Working Air Pressure: 5.5 Kg/cm²
Table Height: 800mm + 70mm
Sealing & Cutting Dimensions: L550mm, W450mm
Packaging Dimensions: L+H ≤ 500, W+H ≤ 400, H ≤ 180mm
Packaging Speed: 0-50 pcs/min (depending on the size of the product)
Machine Dimensions: 175010501450 mm (subject to actual dimensions)
